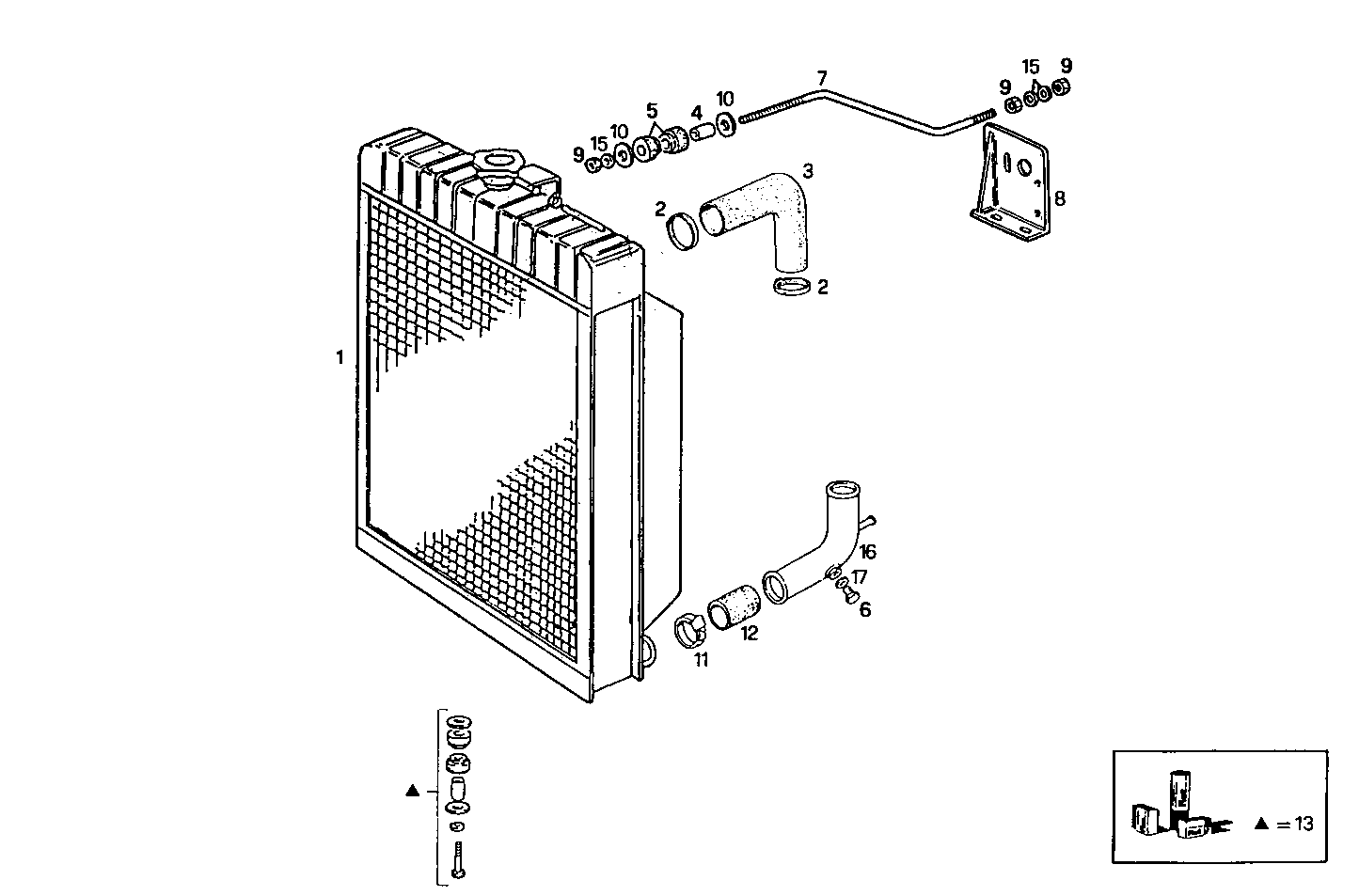

RADIATOR FOR SETTING TILL MAX POWER
8061i40.05 — 8061i40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8025606 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 17764991 | CLIP CLIP | 2 | |
| 3 | 8024783 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 4 | 8108634 | SPACING BAR SPACING BAR | 1 | |
| 5 | 741569 | RUBBER PAD RUBBER PAD | 2 | |
| 6 | 16992111 | THREADED PLUG THREADED PLUG | 1 | |
| 7 | 8024390 | TIE ROD TIE ROD | 1 | |
| 8 | 8020521 | RETAINER RETAINER | 1 | |
| 9 | 17038421 | HEXAGON NUT HEXAGON NUT | 4 | |
| 10 | 741570 | WASHER WASHER | 6 | |
| 11 | 17764791 | CLIP CLIP | 2 | |
| 12 | 17742887 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 13 | 8090341 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 14 | 17090271 | WASHER WASHER | 2 | |
| 15 | 17091074 | WASHER WASHER | 4 | |
| 16 | 8028889 | WATER PIPE WATER PIPE | 1 | |
| 17 | 4858606 | GASKET GASKET | 1 |
