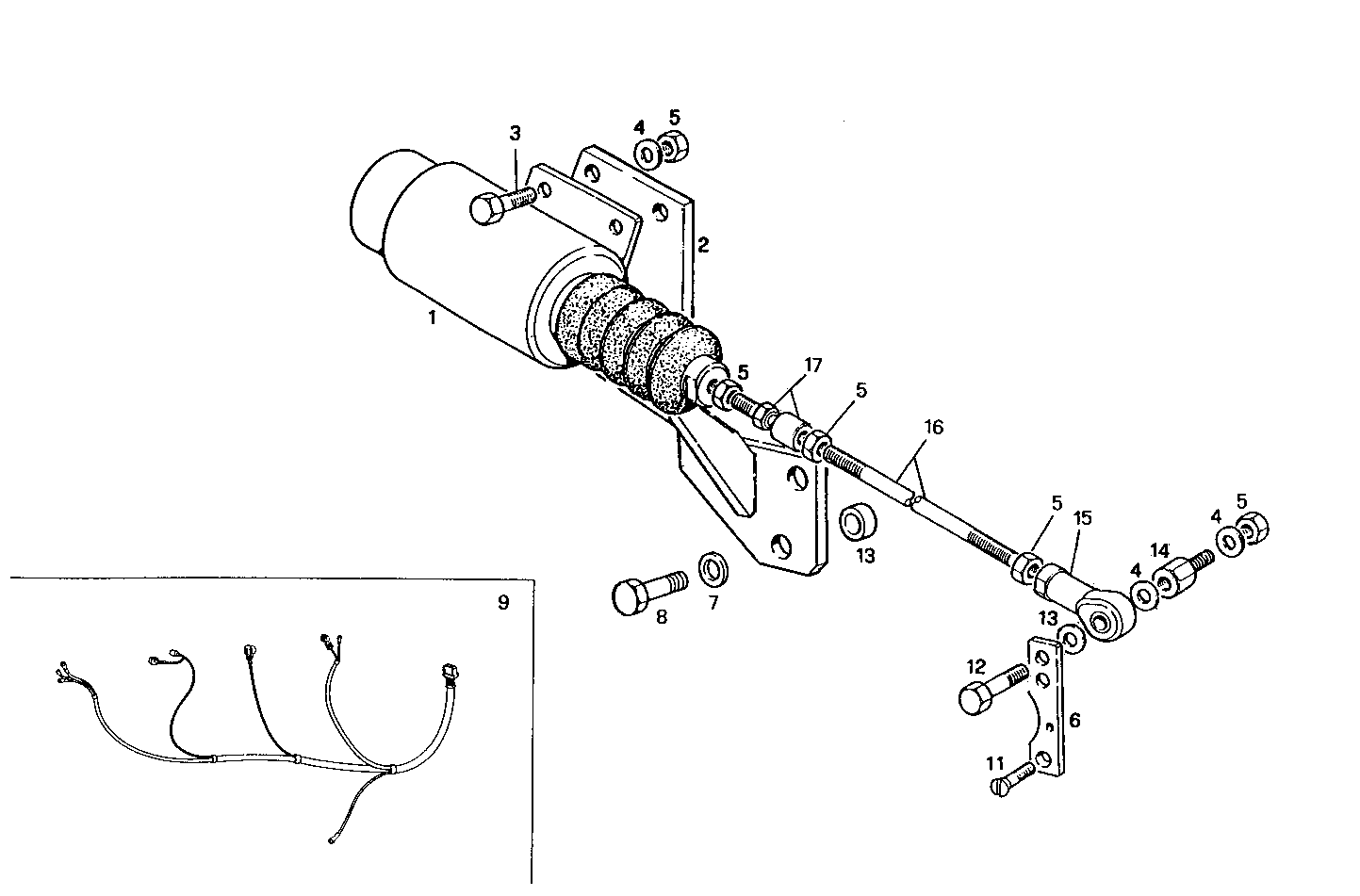

STOP SOLENOID - ENERGIZE TO STOP - 12V
8061i40.05 — 8061i40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8105420 | SOLENOID SOLENOID | 1 | |
| 2 | 8109366 | SUPPORT SUPPORT | 1 | |
| 3 | 10902121 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 4 | 17088474 | WASHER WASHER | 7 | |
| 5 | 17037821 | HEXAGON NUT HEXAGON NUT | 8 | |
| 6 | 8108368 | LEVER LEVER | 1 | |
| 7 | 17091074 | WASHER WASHER | 1 | |
| 8 | 16610124 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 8023538 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 11 | 18019514 | SCREW SCREW | 1 | |
| 12 | 10902121 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 4832132 | SPACING BAR SPACING BAR | 1 | |
| 14 | 8105581 | STUD STUD | 1 | |
| 15 | 4934541 | BALL HEAD BALL HEAD | 1 | |
| 16 | 8100610 | TIE ROD TIE ROD | 1 | |
| 17 | 8109368 | TIE ROD TIE ROD | 1 |
