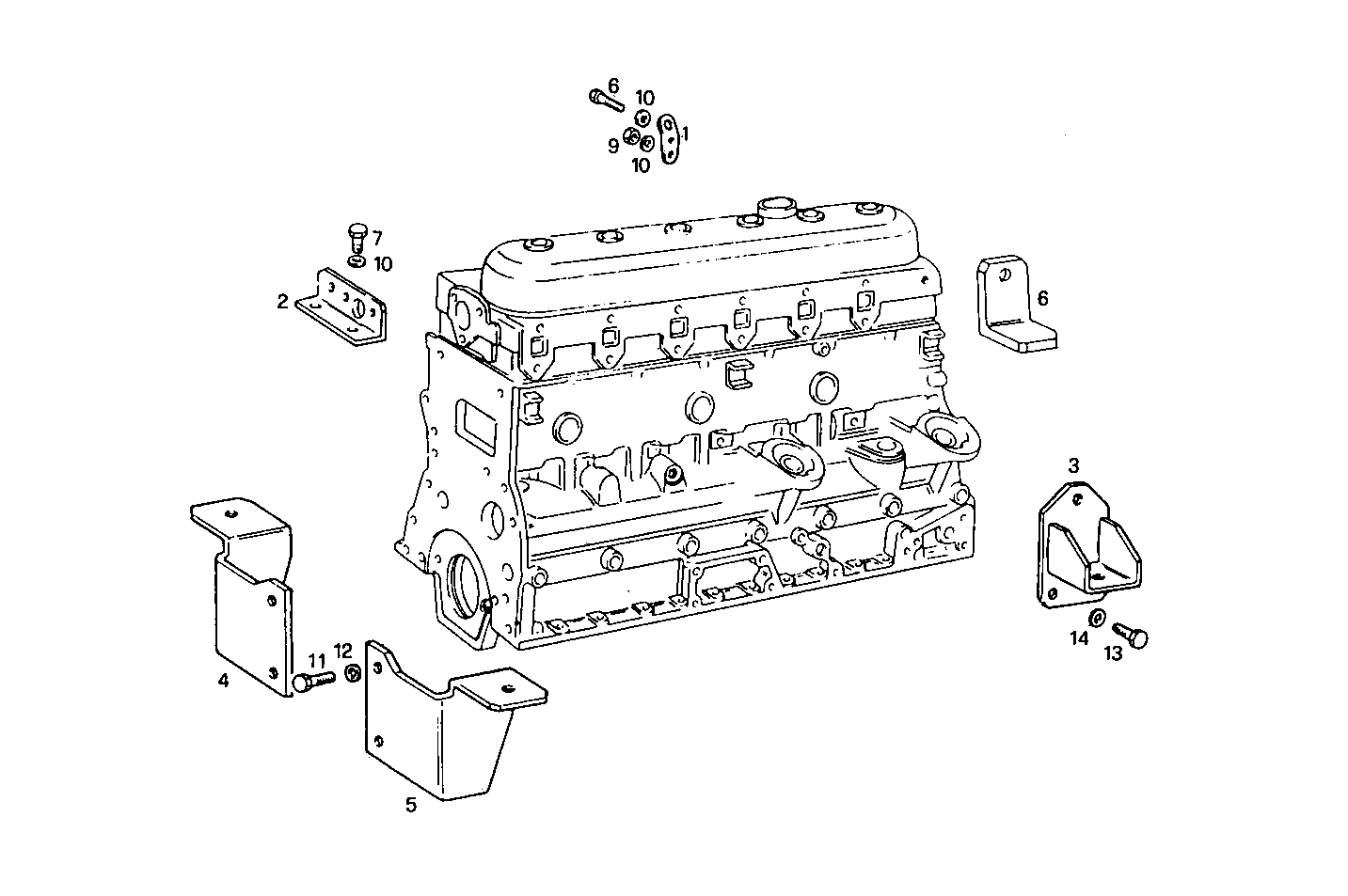

ENGINE SUSPENSION
8061M12.00 — 8061M12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4695923 | HOOK HOOK | 1 | |
| 2 | 4746561 | HOOK HOOK | 1 | |
| 3 | 4928444 | ENGINE SUSPENSION ENGINE SUSPENSION | 2 | |
| 4 | 8106383 | ENGINE SUSPENSION ENGINE SUSPENSION | 1 | |
| 5 | 8106384 | ENGINE SUSPENSION ENGINE SUSPENSION | 1 | |
| 6 | 8107429 | HOOK HOOK | 1 | |
| 7 | 16043221 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 16044021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 10 | 11193879 | SPRING WASHER SPRING WASHER | 4 | |
| 11 | 11376221 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 11194279 | SPRING WASHER SPRING WASHER | 4 | |
| 13 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 14 | 11198371 | SPRING WASHER SPRING WASHER | 6 |
