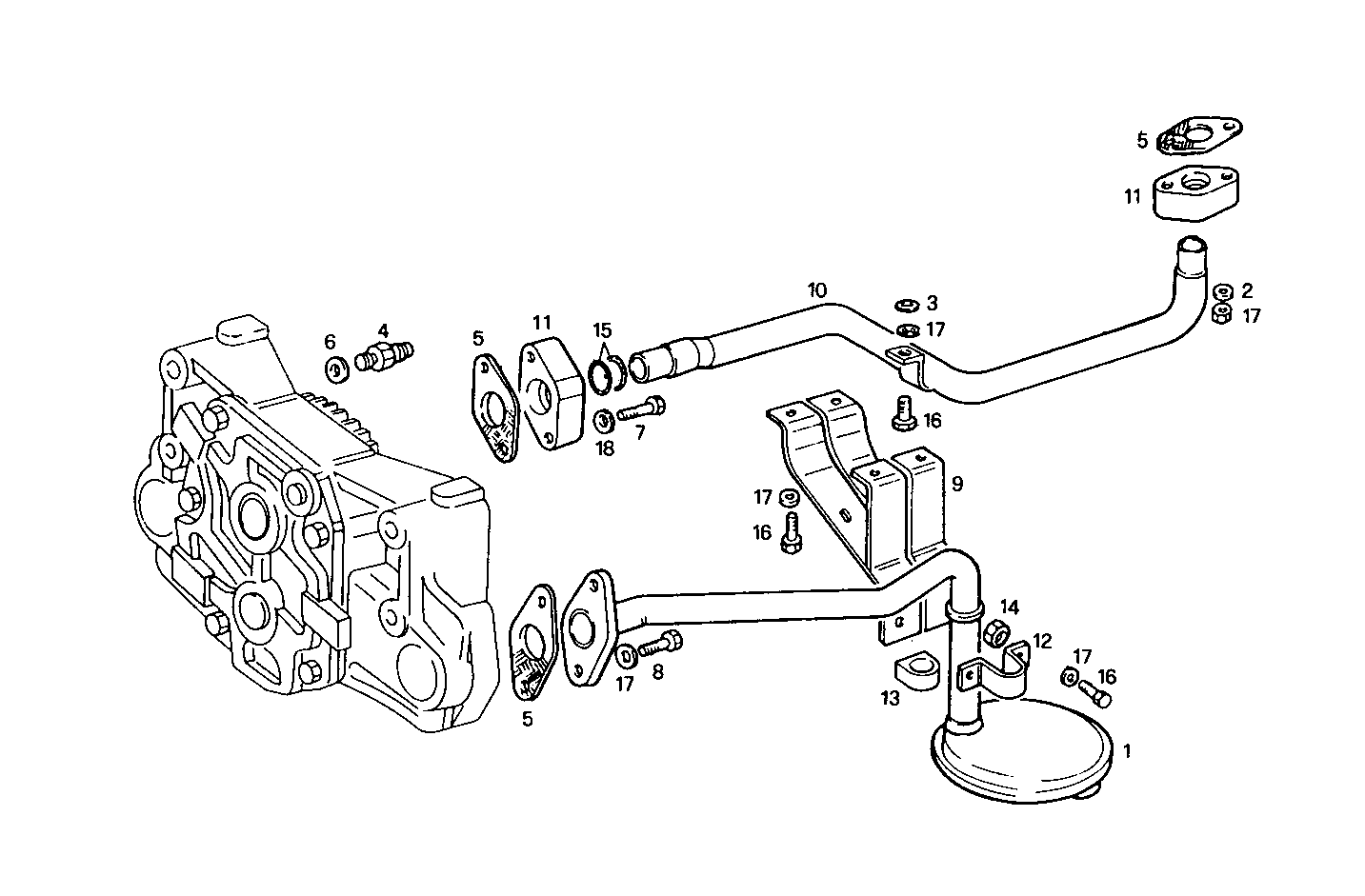

LUBE OIL LINES
8061M12.00 — 8061M12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4779689 | SUCTION STRAINER SUCTION STRAINER | 1 | |
| 2 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 3 | 12646701 | WASHER WASHER | 1 | |
| 4 | 4785501 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 5 | 4617482 | FLAT ENGINE GKT FLAT ENGINE GKT | 3 | |
| 6 | 561293 | O-RING O-RING | 2 | |
| 7 | 16625734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 16043421 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 4739213 | RETAINER RETAINER | 1 | |
| 10 | 4773064 | OIL LINE OIL LINE | 1 | |
| 11 | 4773265 | FLANGED SOCKET FLANGED SOCKET | 2 | |
| 12 | 4719705 | RETAINER RETAINER | 1 | |
| 13 | 4719706 | RUBBER PAD RUBBER PAD | 1 | |
| 14 | 14048211 | HEXAGON NUT HEXAGON NUT | 2 | |
| 15 | 14457681 | O-RING O-RING | 4 | |
| 16 | 16043221 | HEXAGON BOLT HEXAGON BOLT | 7 | |
| 17 | 11193871 | WASHER WASHER | 7 | |
| 18 | 11198371 | SPRING WASHER SPRING WASHER | 2 |
