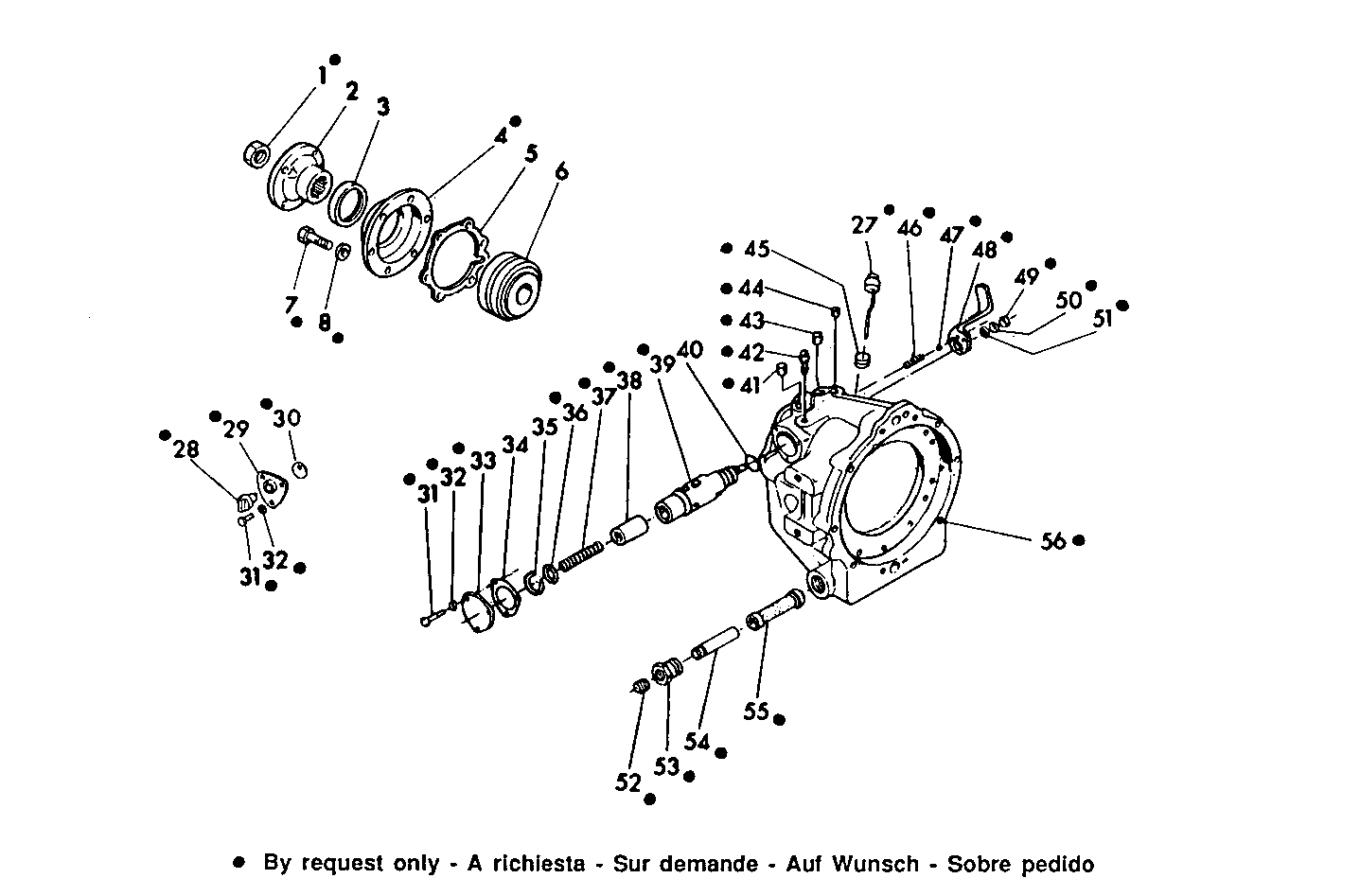

MARINE GEAR

8061M12.00 — 8061M12

Parts List

#	Part No	Name / Description	Qty
1	T5102001-01-001	NUT NUT	1
2	8090746	FLANGE FLANGE	1
3	8090655	WASHER WASHER	1
4	T5102001-01-004	COVER COVER	1
5	8090664	DRIVE BEARING DRIVE BEARING	1
6	8090663	WASHER WASHER	1
7	T5102001-01-007	SCREW SCREW	6
8	T5102001-01-008	WASHER WASHER	6
27	T5102001-01-027	OIL DIPSTICK OIL DIPSTICK	1
28	T5102001-01-028	SWITCH SWITCH	1
29	T5102001-01-029	COVER COVER	1
30	T5102001-01-030	RETAINING CAM RETAINING CAM	1
31	T5102001-01-031	SCREW SCREW	3
32	T5102001-01-032	WASHER WASHER	3
33	T5102001-01-033	COVER COVER	1
34	8090414	GASKET GASKET	1
35	8090429	CIRCLIP CIRCLIP	1
36	T5102001-01-036	RETAINER RETAINER	1
37	T5102001-01-037	SPRING SPRING	1
38	T5102001-01-038	PRESSURE REGULATOR PRESSURE REGULATOR	1
39	T5102001-01-039	VALVE VALVE	1
40	8090430	O-RING O-RING	1
41	T5102001-01-041	PLUG PLUG	1
42	T5102001-01-042	BREATHER BREATHER	1
43	T5102001-01-043	PLUG PLUG	1
44	T5102001-01-044	PLUG PLUG	1
45	T5102001-01-045	PIPE SOCKET PIPE SOCKET	1
46	T5102001-01-046	SPRING SPRING	1
47	T5102001-01-047	BALL BALL	1
48	T5102001-01-048	LEVER LEVER	1
49	T5102001-01-049	NUT NUT	1
50	T5102001-01-050	WASHER WASHER	1
51	T5102001-01-051	WASHER WASHER	1
52	T5102001-01-052	PLUG PLUG	1
53	T5102001-01-053	PIPE SOCKET PIPE SOCKET	1
54	T5102001-01-054	OIL LINE OIL LINE	1
55	T5102001-01-055	G.BOX OILFILT.ELEM G.BOX OILFILT.ELEM	1
56	T5102001-01-056	BEARING HOUSING BEARING HOUSING	1
