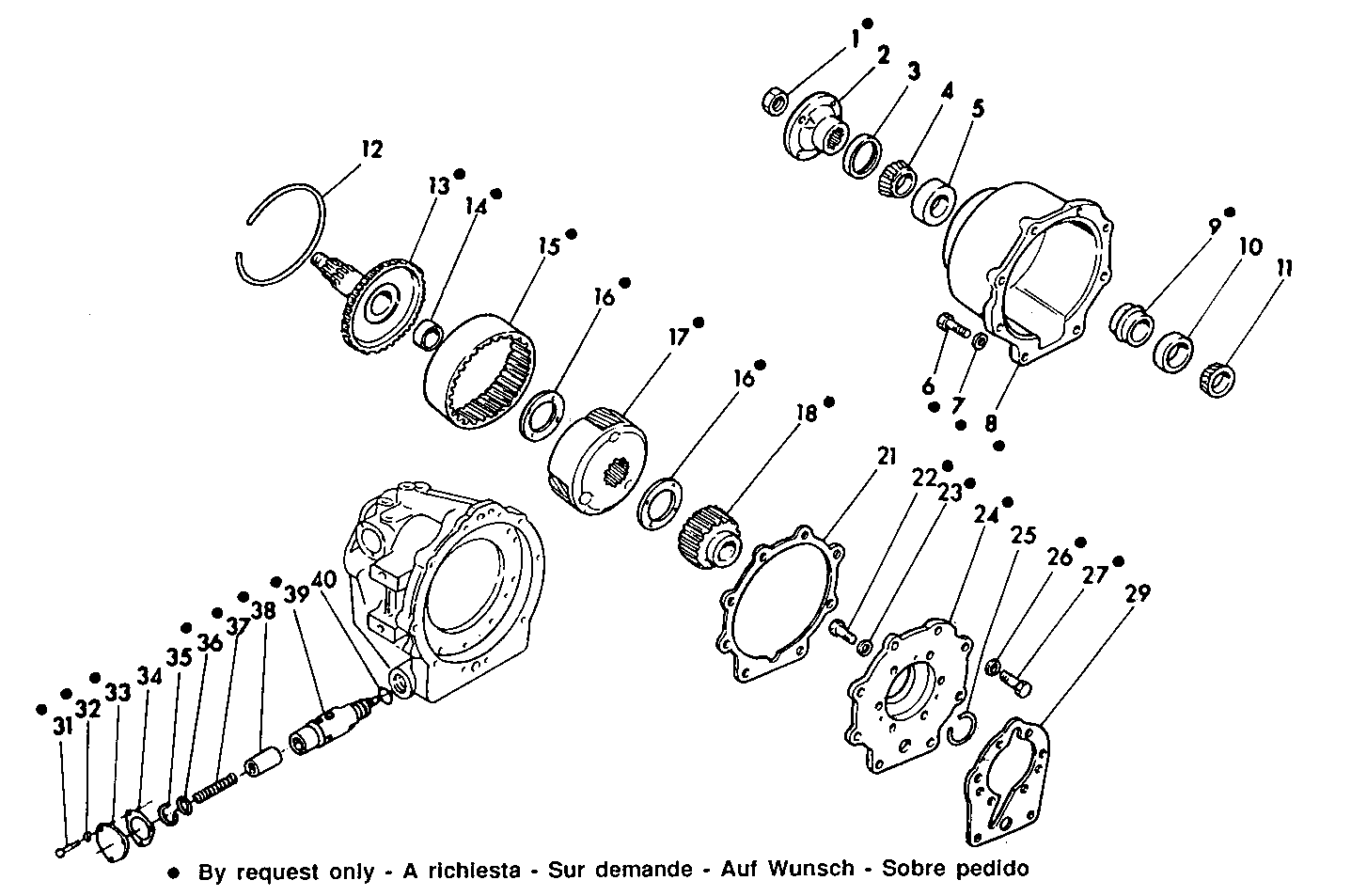

MARINE GEAR
8061M12.00 — 8061M12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | T5102004-01-001 | NUT NUT | 1 | |
| 2 | 8090746 | FLANGE FLANGE | 1 | |
| 3 | 8090655 | WASHER WASHER | 1 | |
| 4 | 8090656 | DRIVE BEARING DRIVE BEARING | 1 | |
| 5 | 8090428 | DRIVE BEARING DRIVE BEARING | 1 | |
| 6 | T5102004-01-006 | SCREW SCREW | 2 | |
| 7 | T5102004-01-007 | WASHER WASHER | 2 | |
| 8 | T5102004-01-008 | BEARING HOUSING BEARING HOUSING | 1 | |
| 9 | T5102004-01-009 | SPACING BAR SPACING BAR | 1 | |
| 10 | 8090657 | DRIVE BEARING DRIVE BEARING | 1 | |
| 11 | 8090658 | DRIVE BEARING DRIVE BEARING | 1 | |
| 12 | 8090659 | CIRCLIP CIRCLIP | 1 | |
| 13 | T5102004-01-013 | SHAFT SHAFT | 1 | |
| 14 | T5102004-01-014 | BUSH BUSH | 1 | |
| 15 | T5102004-01-015 | GEAR GEAR | 1 | |
| 16 | T5102004-01-016 | WASHER WASHER | 2 | |
| 17 | T5102004-01-017 | PINION PINION | 1 | |
| 18 | T5102004-01-018 | GEAR GEAR | 1 | |
| 21 | 8090660 | GASKET GASKET | 1 | |
| 22 | T5102004-01-022 | SCREW SCREW | 6 | |
| 23 | T5102004-01-023 | WASHER WASHER | 6 | |
| 24 | T5102004-01-024 | PLATE PLATE | 1 | |
| 25 | 8090661 | CIRCLIP CIRCLIP | 1 | |
| 26 | T5102004-01-026 | WASHER WASHER | 6 | |
| 27 | T5102004-01-027 | SCREW SCREW | 6 | |
| 29 | 8090662 | GASKET GASKET | 1 | |
| 31 | T5102004-01-031 | SCREW SCREW | 3 | |
| 32 | T5102004-01-032 | WASHER WASHER | 3 | |
| 33 | T5102004-01-033 | COVER COVER | 1 | |
| 34 | 8090414 | GASKET GASKET | 1 | |
| 35 | 8090429 | CIRCLIP CIRCLIP | 1 | |
| 36 | T5102004-01-036 | SUPPORT RING SUPPORT RING | 1 | |
| 37 | T5102004-01-037 | SPRING SPRING | 1 | |
| 38 | T5102004-01-038 | PRESSURE REGULATOR PRESSURE REGULATOR | 1 | |
| 39 | T5102004-01-039 | VALVE VALVE | 1 | |
| 40 | 8090430 | O-RING O-RING | 1 |
