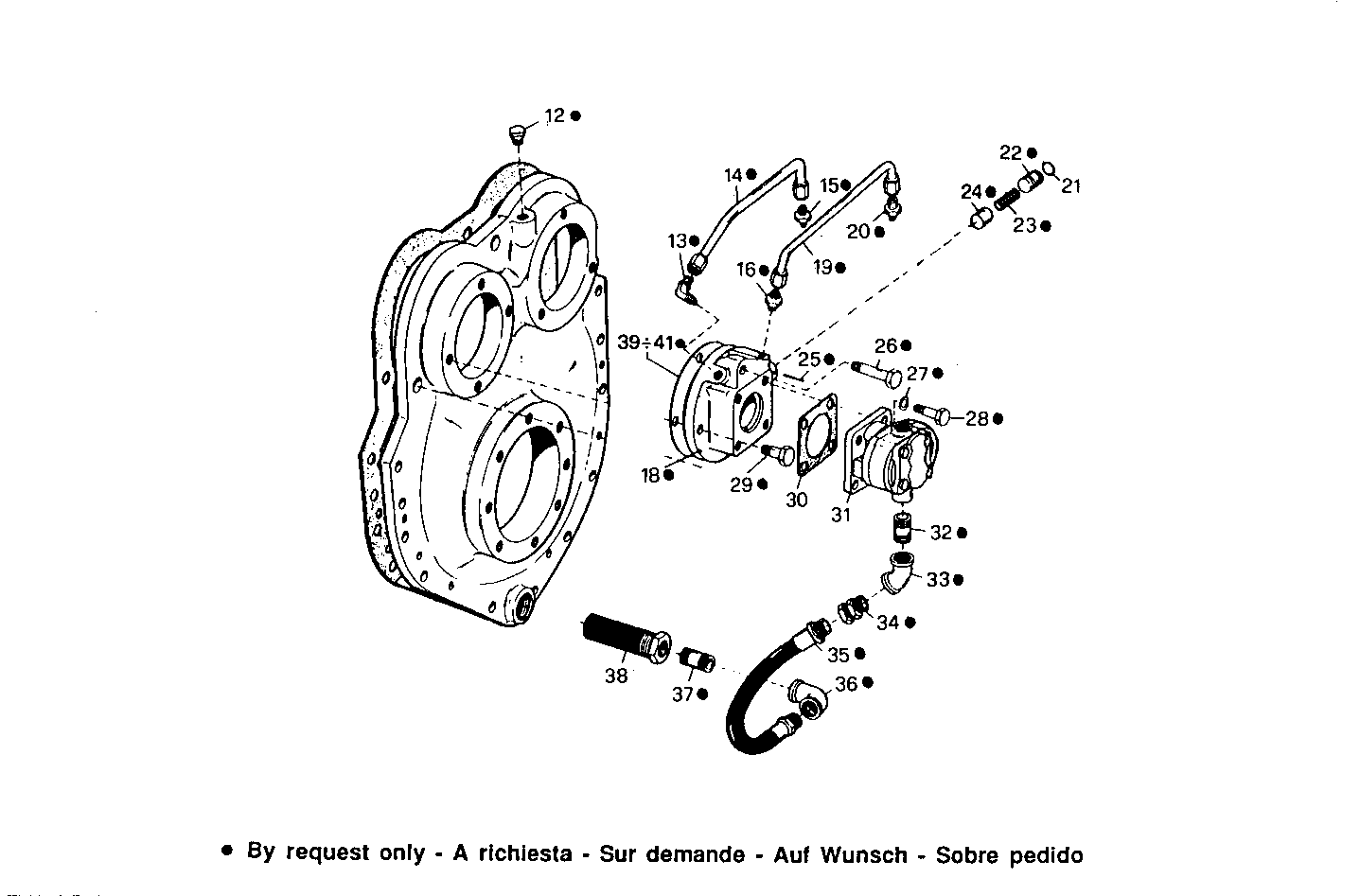

MARINE GEAR

8061M12.00 — 8061M12

Parts List

#	Part No	Name / Description	Qty
12	T5114002-02-012	PLUG PLUG	1
13	T5114002-02-013	PIPE SOCKET PIPE SOCKET	1
14	T5114002-02-014	OIL LINE OIL LINE	1
15	T5114002-02-015	PIPE SOCKET PIPE SOCKET	1
16	T5114002-02-016	PIPE SOCKET PIPE SOCKET	1
18	T5114002-02-018	COVER COVER	1
19	T5114002-02-019	OIL LINE OIL LINE	1
20	T5114002-02-020	PIPE SOCKET PIPE SOCKET	1
21	8090602	O-RING O-RING	1
22	T5114002-02-022	PLUG PLUG	1
23	T5114002-02-023	SPRING SPRING	1
24	T5114002-02-024	CONTROL PISTON CONTROL PISTON	1
25	T5114002-02-025	PIN PIN	1
26	T5114002-02-026	SCREW SCREW	1
27	T5114002-02-027	WASHER WASHER	1
28	T5114002-02-028	SCREW SCREW	4
29	T5114002-02-029	SCREW SCREW	3
30	8090603	GASKET GASKET	1
31	8090607	LUBE OIL PUMP LUBE OIL PUMP	1
32	T5114002-02-032	PIPE SOCKET PIPE SOCKET	1
33	T5114002-02-033	ELBOW ELBOW	1
34	T5114002-02-034	PIPE SOCKET PIPE SOCKET	1
35	T5114002-02-035	OIL HOSE OIL HOSE	1
36	T5114002-02-036	ELBOW ELBOW	1
37	T5114002-02-037	CONNECTOR SLEEVE CONNECTOR SLEEVE	1
38	8090604	STRAINER STRAINER	1
39	T5114002-02-039	GASKET GASKET	1
40	T5114002-02-040	GASKET GASKET	1
41	T5114002-02-041	GASKET GASKET	1
