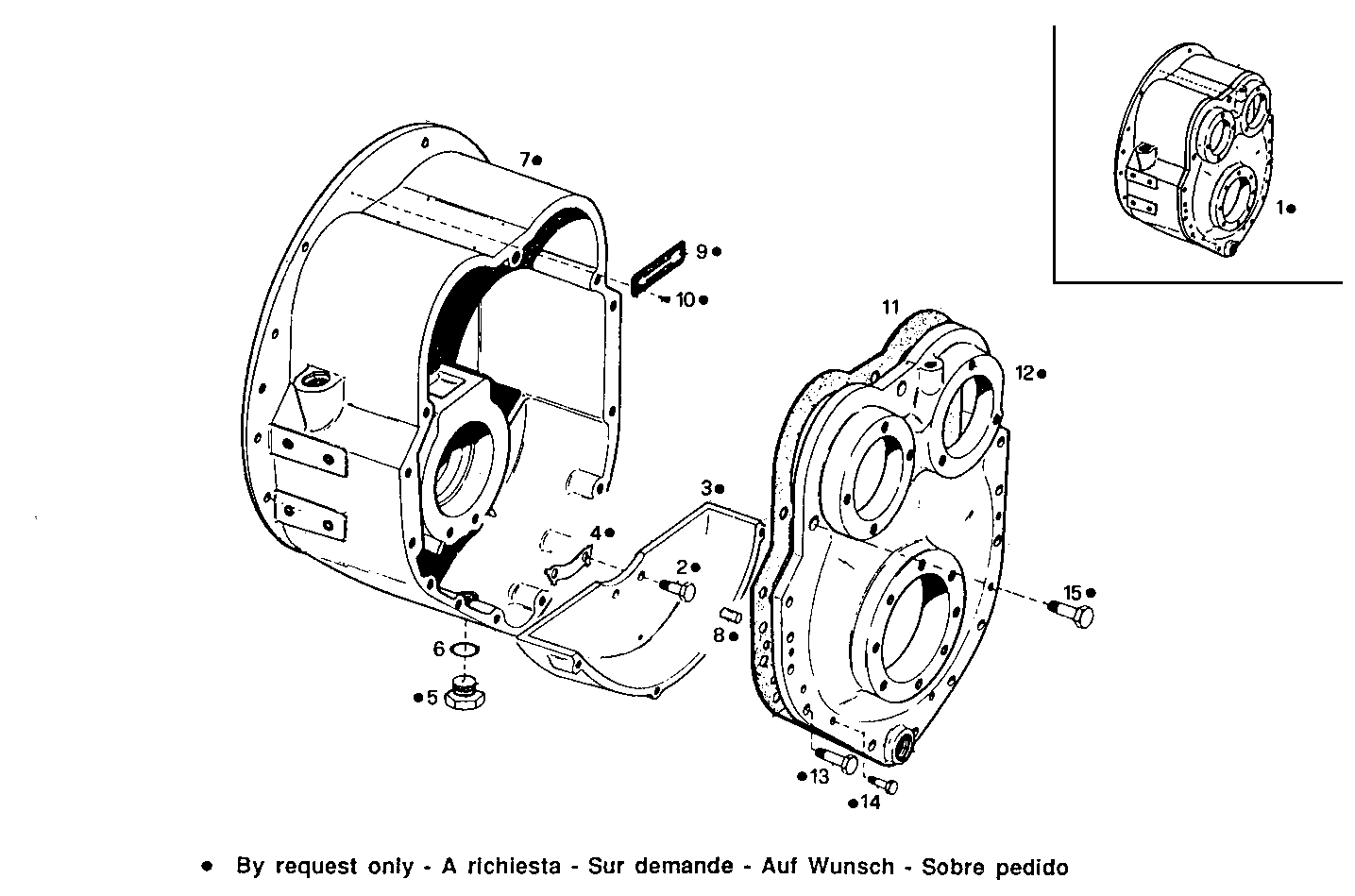

MARINE GEAR
8061M12.00 — 8061M12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | T5114002-03-001 | BEARING HOUSING BEARING HOUSING | 1 | |
| 2 | T5114002-03-002 | SCREW SCREW | 2 | |
| 3 | T5114002-03-003 | BEARING HOUSING BEARING HOUSING | 1 | |
| 4 | T5114002-03-004 | PLATE PLATE | 1 | |
| 5 | T5114002-03-005 | PLUG PLUG | 1 | |
| 6 | 8090569 | O-RING O-RING | 1 | |
| 7 | T5114002-03-007 | BEARING HOUSING BEARING HOUSING | 1 | |
| 8 | T5114002-03-008 | PIN PIN | 2 | |
| 9 | T5114002-03-009 | LABEL LABEL | 1 | |
| 10 | T5114002-03-010 | SCREW SCREW | 2 | |
| 11 | 8090605 | GASKET GASKET | 1 | |
| 12 | T5114002-03-012 | COVER COVER | 1 | |
| 13 | T5114002-03-013 | SCREW SCREW | 10 | |
| 14 | T5114002-03-014 | SCREW SCREW | 4 | |
| 15 | T5114002-03-015 | SCREW SCREW | 3 |
