MARINE GEAR
8061M12.00 — 8061M12

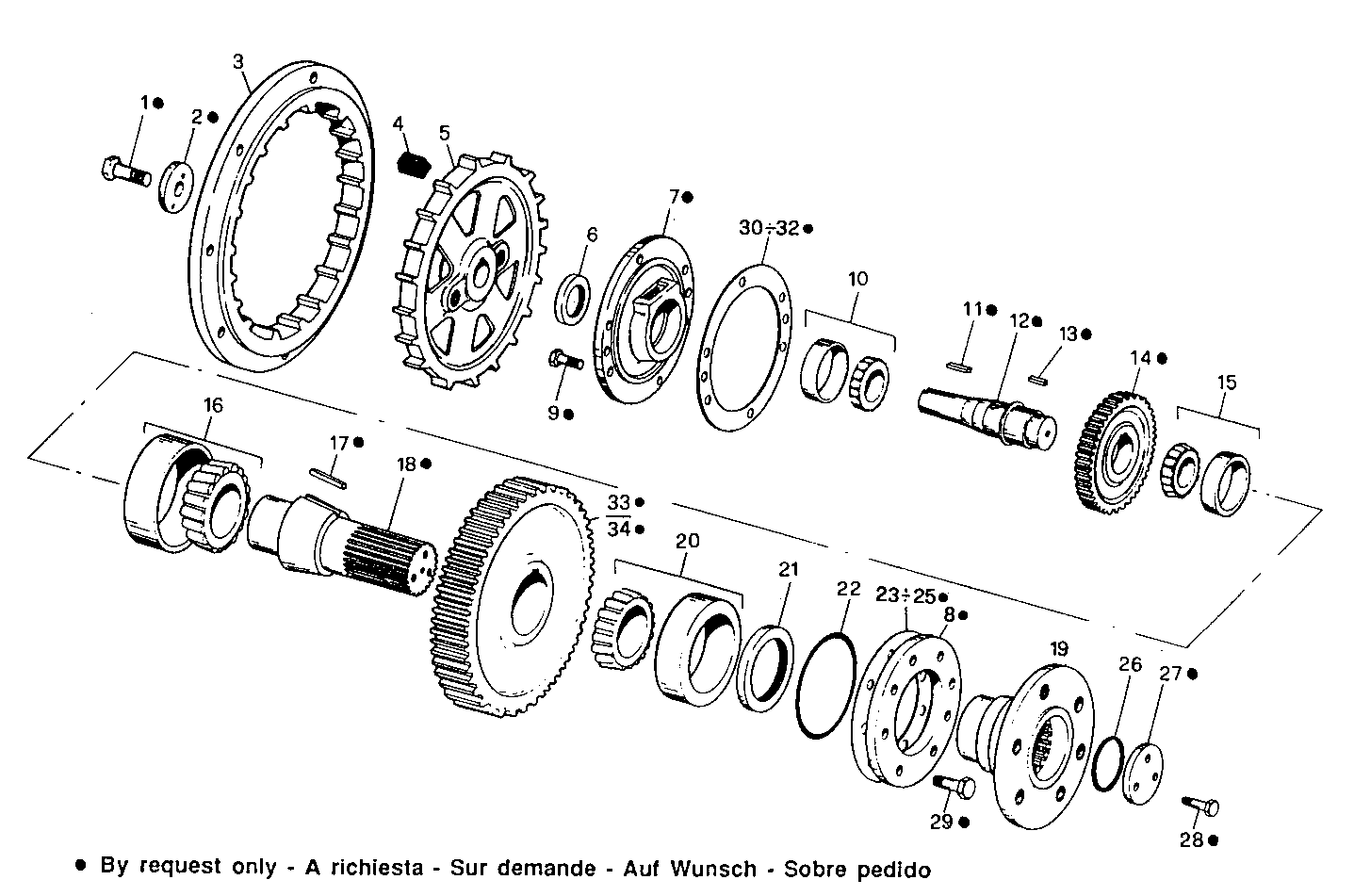

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | T5114002-04-001 | SCREW SCREW | 1 | |
| 2 | T5114002-04-002 | WASHER WASHER | 1 | |
| 3 | 4919968 | FLANGE FLANGE | 1 | |
| 4 | 4934462 | RUBBER PAD RUBBER PAD | 20 | |
| 5 | 8090752 | PTO CLUTCH PTO CLUTCH | 1 | |
| 6 | 8090448 | O-RING O-RING | 1 | |
| 7 | T5114002-04-007 | SUPPORT SUPPORT | 1 | |
| 8 | T5114002-04-008 | COVER COVER | 1 | |
| 9 | T5114002-04-009 | SCREW SCREW | 6 | |
| 10 | 8090450 | DRIVE BEARING DRIVE BEARING | 1 | |
| 11 | T5114002-04-011 | KEY KEY | 1 | |
| 12 | T5114002-04-012 | SHAFT SHAFT | 1 | |
| 13 | T5114002-04-013 | KEY KEY | 1 | |
| 14 | T5114002-04-014 | GEAR GEAR | 1 | |
| 15 | 8090450 | DRIVE BEARING DRIVE BEARING | 1 | |
| 16 | 8090594 | DRIVE BEARING DRIVE BEARING | 1 | |
| 17 | T5114002-04-017 | KEY KEY | 1 | |
| 18 | T5114002-04-018 | SHAFT SHAFT | 1 | |
| 19 | 8090598 | FLANGE FLANGE | 1 | |
| 20 | 8090595 | DRIVE BEARING DRIVE BEARING | 1 | |
| 21 | 8090596 | O-RING O-RING | 1 | |
| 22 | 8090597 | O-RING O-RING | 1 | |
| 23 | T5114002-04-023 | GASKET GASKET | 1 | |
| 24 | T5114002-04-024 | GASKET GASKET | 1 | |
| 25 | T5114002-04-025 | GASKET GASKET | 1 | |
| 26 | 8090599 | O-RING O-RING | 1 | |
| 27 | T5114002-04-027 | WASHER WASHER | 1 | |
| 28 | T5114002-04-028 | SCREW SCREW | 3 | |
| 29 | T5114002-04-029 | SCREW SCREW | 8 | |
| 30 | T5114002-04-030 | GASKET GASKET | 1 | |
| 31 | T5114002-04-031 | GASKET GASKET | 1 | |
| 32 | T5114002-04-032 | GASKET GASKET | 1 | |
| 33 | T5114002-04-033 | GEAR GEAR | 1 | |
| 34 | T5114002-04-034 | GEAR GEAR | 1 |
