MARINE GEAR
8061M12.00 — 8061M12

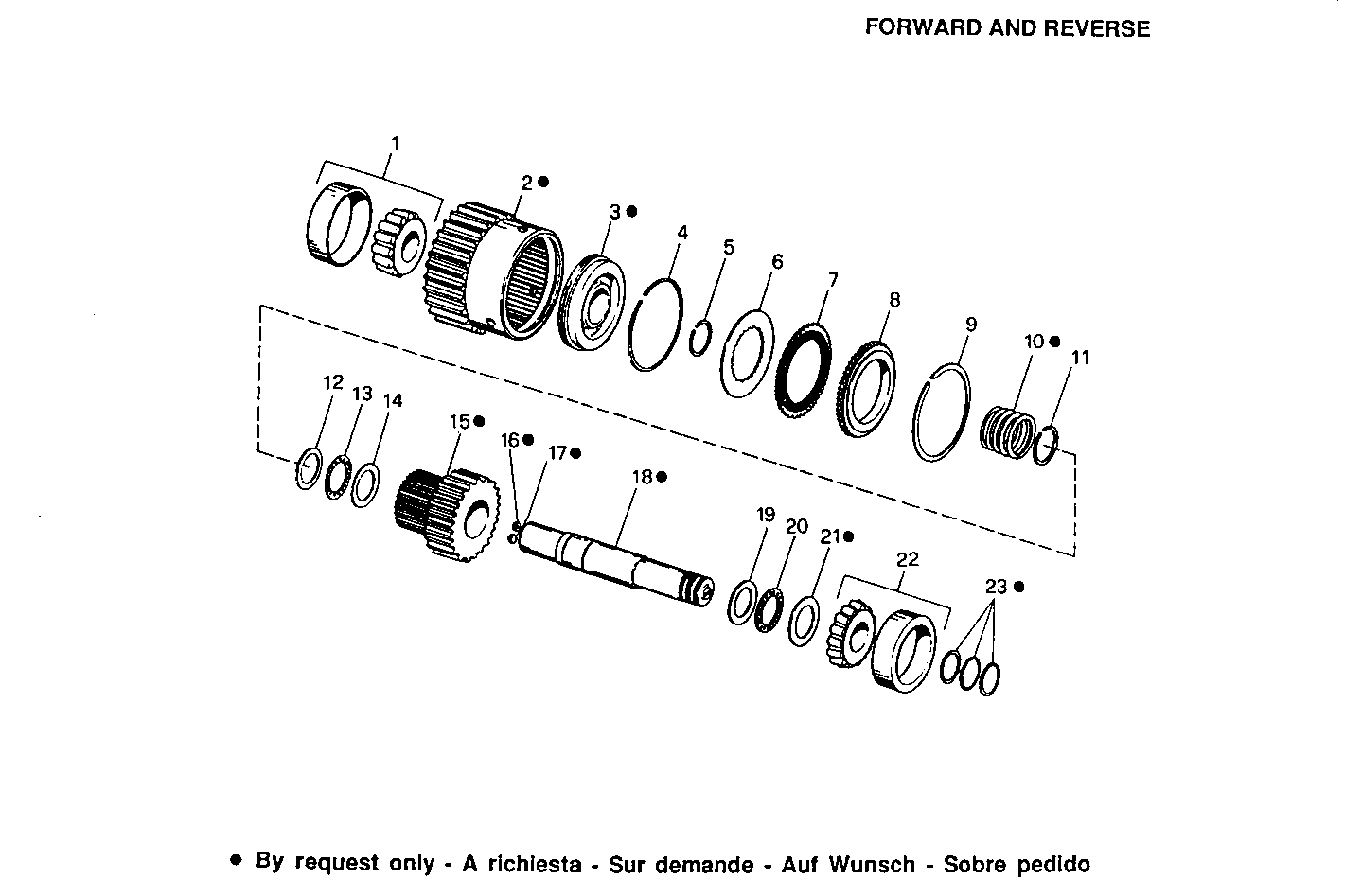

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8090464 | DRIVE BEARING DRIVE BEARING | 1 | |
| 2 | T5114002-05-002 | GEAR GEAR | 1 | |
| 3 | T5114002-05-003 | SYNCHRONIZER SYNCHRONIZER | 1 | |
| 4 | 8090465 | CIRCLIP CIRCLIP | 1 | |
| 5 | 8090466 | O-RING O-RING | 1 | |
| 6 | 8090467 | RING RING | 8 | |
| 7 | 8090468 | RING RING | 9 | |
| 8 | 8090469 | RING RING | 1 | |
| 9 | 8090470 | CIRCLIP CIRCLIP | 1 | |
| 10 | T5114002-05-010 | SPRING SPRING | 1 | |
| 11 | 8090471 | CIRCLIP CIRCLIP | 1 | |
| 12 | 8090580 | WASHER WASHER | 1 | |
| 13 | 8090472 | DRIVE BEARING DRIVE BEARING | 1 | |
| 14 | 8090581 | WASHER WASHER | 1 | |
| 15 | T5114002-05-015 | GEAR GEAR | 1 | |
| 16 | T5114002-05-016 | PLUG PLUG | 1 | |
| 17 | T5114002-05-017 | BALL BALL | 1 | |
| 18 | T5114002-05-018 | SHAFT SHAFT | 1 | |
| 19 | 8090581 | WASHER WASHER | 1 | |
| 20 | 8090472 | DRIVE BEARING DRIVE BEARING | 1 | |
| 21 | T5114002-05-021 | WASHER WASHER | 1 | |
| 22 | 8090464 | DRIVE BEARING DRIVE BEARING | 1 | |
| 23 | T5114002-05-023 | CIRCLIP CIRCLIP | 3 |
