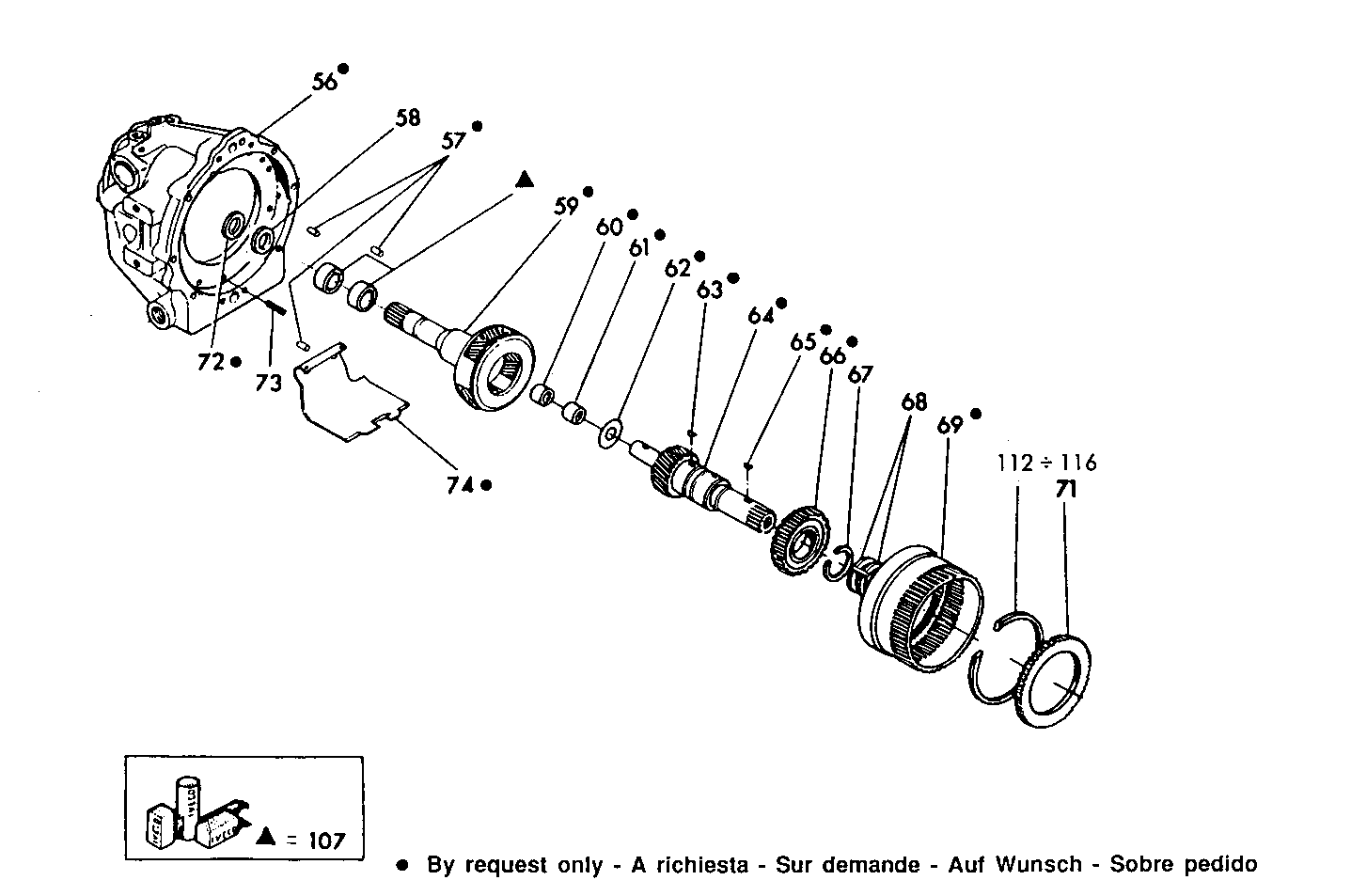

MARINE GEAR
8061M12.00 — 8061M12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 56 | T5102002-03-056 | BEARING HOUSING BEARING HOUSING | 1 | |
| 57 | T5102002-03-057 | DOWEL PIN DOWEL PIN | 3 | |
| 58 | 8090668 | O-RING O-RING | 4 | |
| 59 | T5102002-03-059 | SHAFT SHAFT | 1 | |
| 60 | T5102002-03-060 | BUSH BUSH | 1 | |
| 61 | T5102002-03-061 | BUSH BUSH | 1 | |
| 62 | T5102002-03-062 | WASHER WASHER | 1 | |
| 63 | T5102002-03-063 | KEY KEY | 1 | |
| 64 | T5102002-03-064 | SHAFT SHAFT | 1 | |
| 65 | T5102002-03-065 | KEY KEY | 1 | |
| 66 | T5102002-03-066 | GEAR GEAR | 1 | |
| 67 | 8090432 | CIRCLIP CIRCLIP | 1 | |
| 68 | 8090415 | WASHER WASHER | 2 | |
| 69 | T5102002-03-069 | GEAR GEAR | 1 | |
| 71 | 8090434 | CLUTCH DISC CLUTCH DISC | 1 | |
| 72 | T5102002-03-072 | WASHER WASHER | 1 | |
| 73 | 8090416 | SPRING SPRING | 1 | |
| 74 | T5102002-03-074 | SHUTTER SHUTTER | 1 | |
| 107 | 8090431 | KIT-GEAR BOX KIT-GEAR BOX | 1 | |
| 112 | 8090433 | CIRCLIP CIRCLIP | 1 | |
| 113 | 8090681 | CIRCLIP CIRCLIP | 1 | |
| 114 | 8090678 | CIRCLIP CIRCLIP | 1 | |
| 115 | 8090684 | CIRCLIP CIRCLIP | 1 | |
| 116 | 8090679 | CIRCLIP CIRCLIP | 1 |
