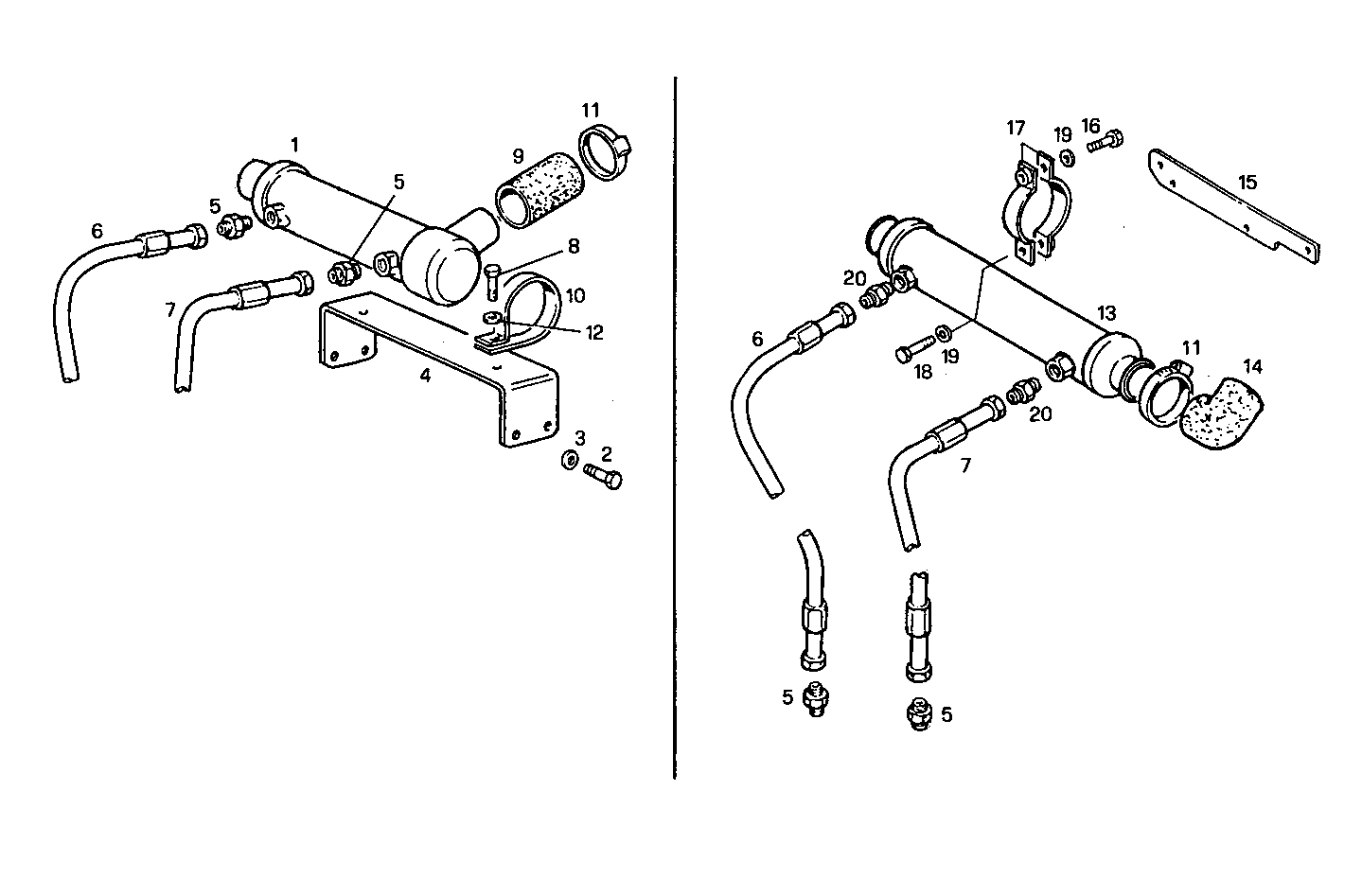

MARINE GEAR TWIN DISC MG 506-1
8061M12.00 — 8061M12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4927783 | MARINE GEAR OIL HEAT EXCH MARINE GEAR OIL HEAT EXCH | 1 | |
| 2 | 4927934 | SCREW SCREW | 4 | |
| 3 | 11198679 | SPRING WASHER SPRING WASHER | 4 | |
| 4 | 8100258 | RETAINER RETAINER | 1 | |
| 5 | 4935465 | PIPE SOCKET PIPE SOCKET | 4 | |
| 6 | 4935780 | OIL HOSE OIL HOSE | 1 | |
| 7 | 8100723 | HOSE HOSE | 1 | |
| 8 | 15970421 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 8102099 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 10 | 8100667 | CLIP CLIP | 2 | |
| 11 | 17764793 | CLIP CLIP | 2 | |
| 12 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 13 | 8016304 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 | |
| 14 | 8102099 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 15 | 8016558 | RETAINER RETAINER | 1 | |
| 16 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 5116798 | CLIP CLIP | 4 | |
| 18 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 19 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 20 | 8101073 | PIPE SOCKET PIPE SOCKET | 2 |
