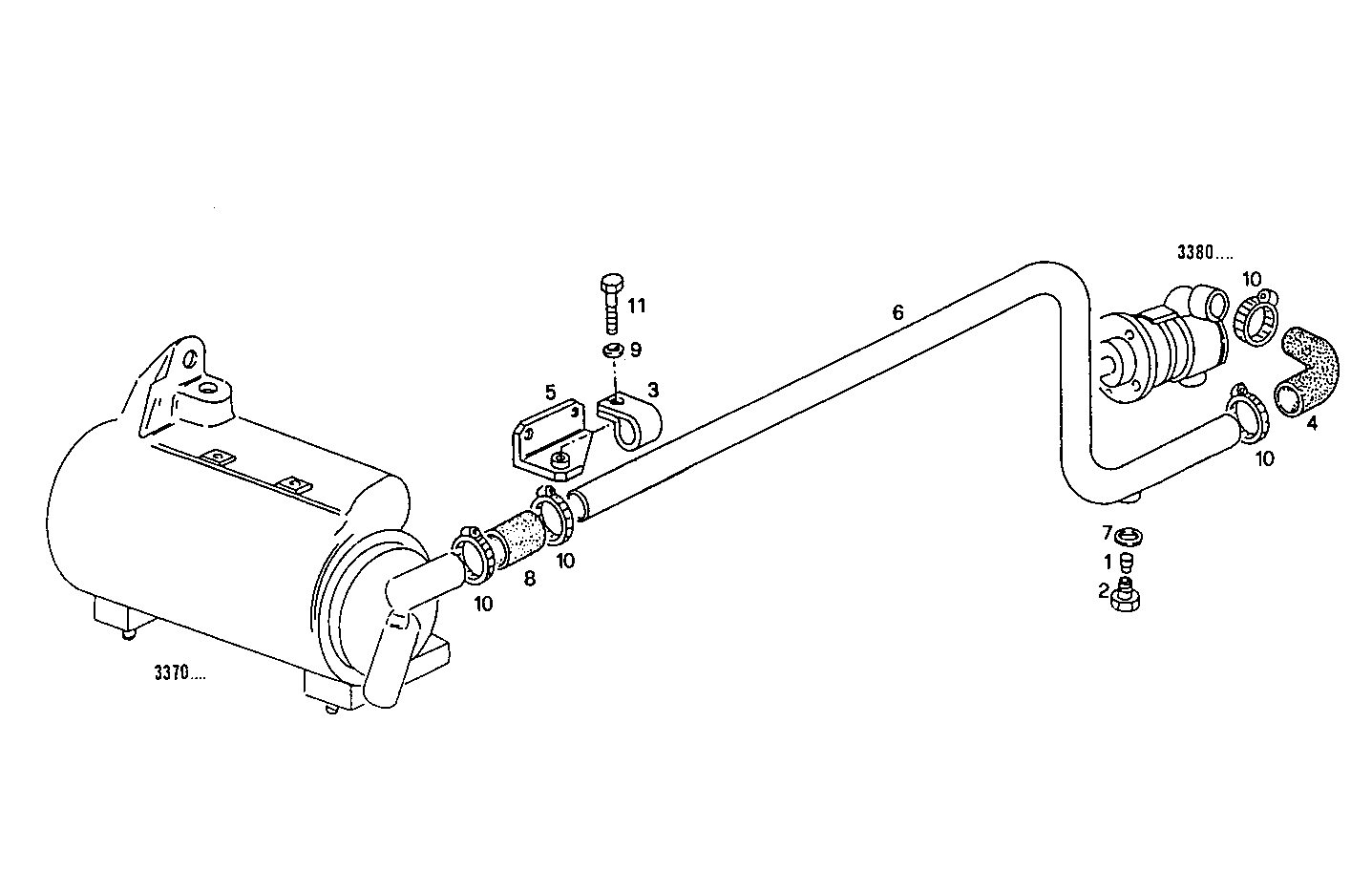

SEA WATER LINES
8061M12.00 — 8061M12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 2 | 4917793 | PLUG PLUG | 1 | |
| 3 | 4936741 | CLIP CLIP | 1 | |
| 4 | 8100546 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 5 | 8108596 | RETAINER RETAINER | 1 | |
| 6 | 8107746 | WATER PIPE WATER PIPE | 1 | |
| 7 | 10263160 | SEAL GASKET SEAL GASKET | 1 | |
| 8 | 10136187 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 9 | 11194079 | SPRING WASHER SPRING WASHER | 1 | |
| 10 | 12177090 | CLIP CLIP | 4 | |
| 11 | 16043321 | HEXAGON BOLT HEXAGON BOLT | 1 |
