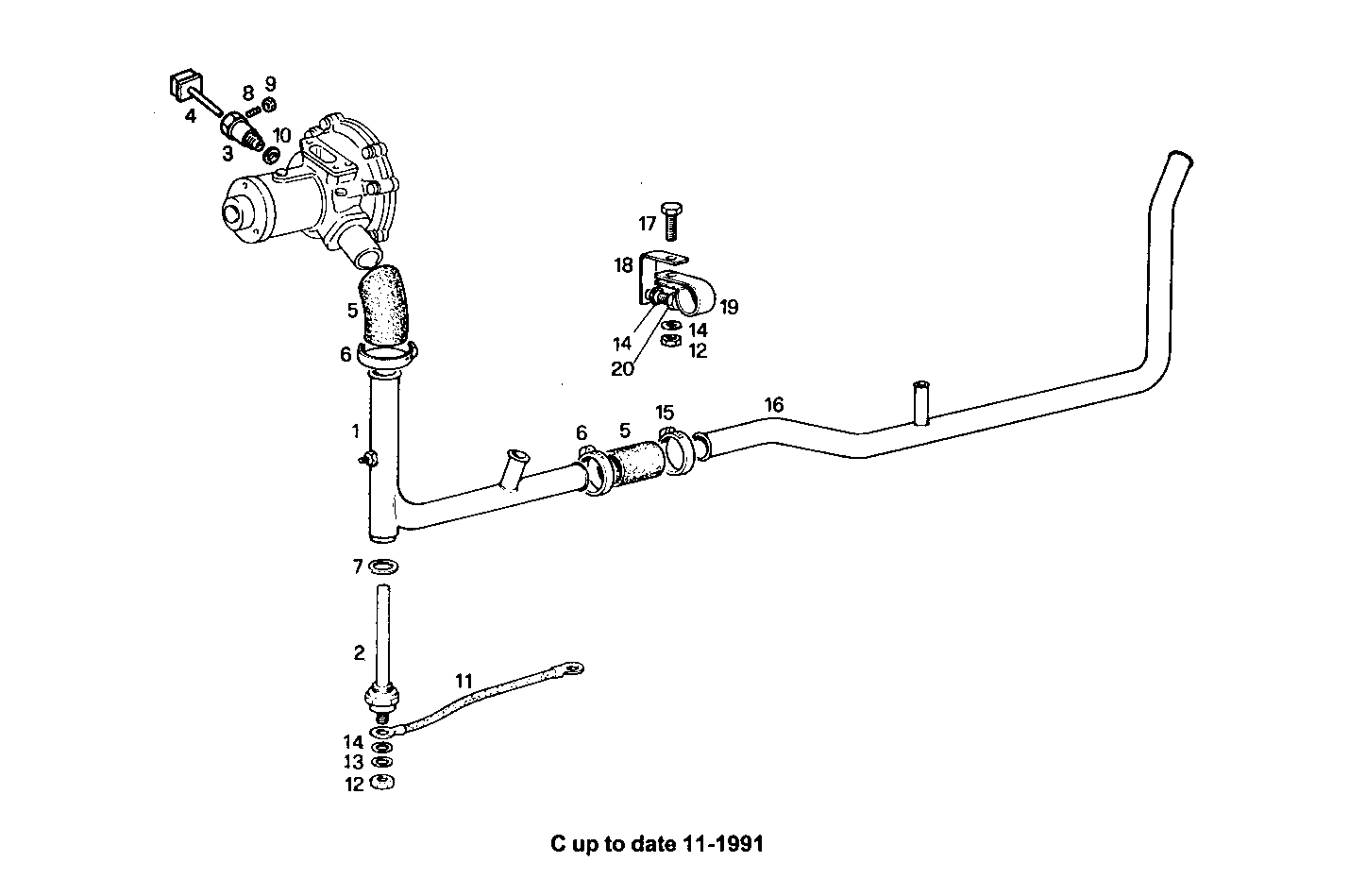

WATER PREHEATER DEVICE - 220V
8061M12.00 — 8061M12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8108870 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8103356 | HEATER HEATER | 1 | |
| 3 | 4936182 | SPACING BAR SPACING BAR | 1 | |
| 4 | 8102863 | THERMOSTAT THERMOSTAT | 1 | |
| 5 | 8813238 | WATER HOSE WATER HOSE | 1 | |
| 6 | 12177090 | CLIP CLIP | 1 | |
| 7 | 10264660 | SEAL GASKET SEAL GASKET | 1 | |
| 8 | 10373614 | SCREW SCREW | 2 | |
| 9 | 16101714 | NUT NUT | 4 | |
| 10 | 10257050 | SEAL GASKET SEAL GASKET | 1 | |
| 11 | 8106705 | EARTH WIRE EARTH WIRE | 1 | |
| 12 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 13 | 14496501 | WASHER WASHER | 1 | |
| 14 | 11194071 | WASHER WASHER | 3 | |
| 15 | 12177090 | CLIP CLIP | 1 | |
| 16 | 8108871 | WATER PIPE WATER PIPE | 1 | |
| 17 | 16043521 | SCREW SCREW | 1 | |
| 18 | 4934319 | RETAINER RETAINER | 1 | |
| 19 | 4936741 | CLIP CLIP | 1 | |
| 20 | 16043124 | SCREW SCREW | 1 |
