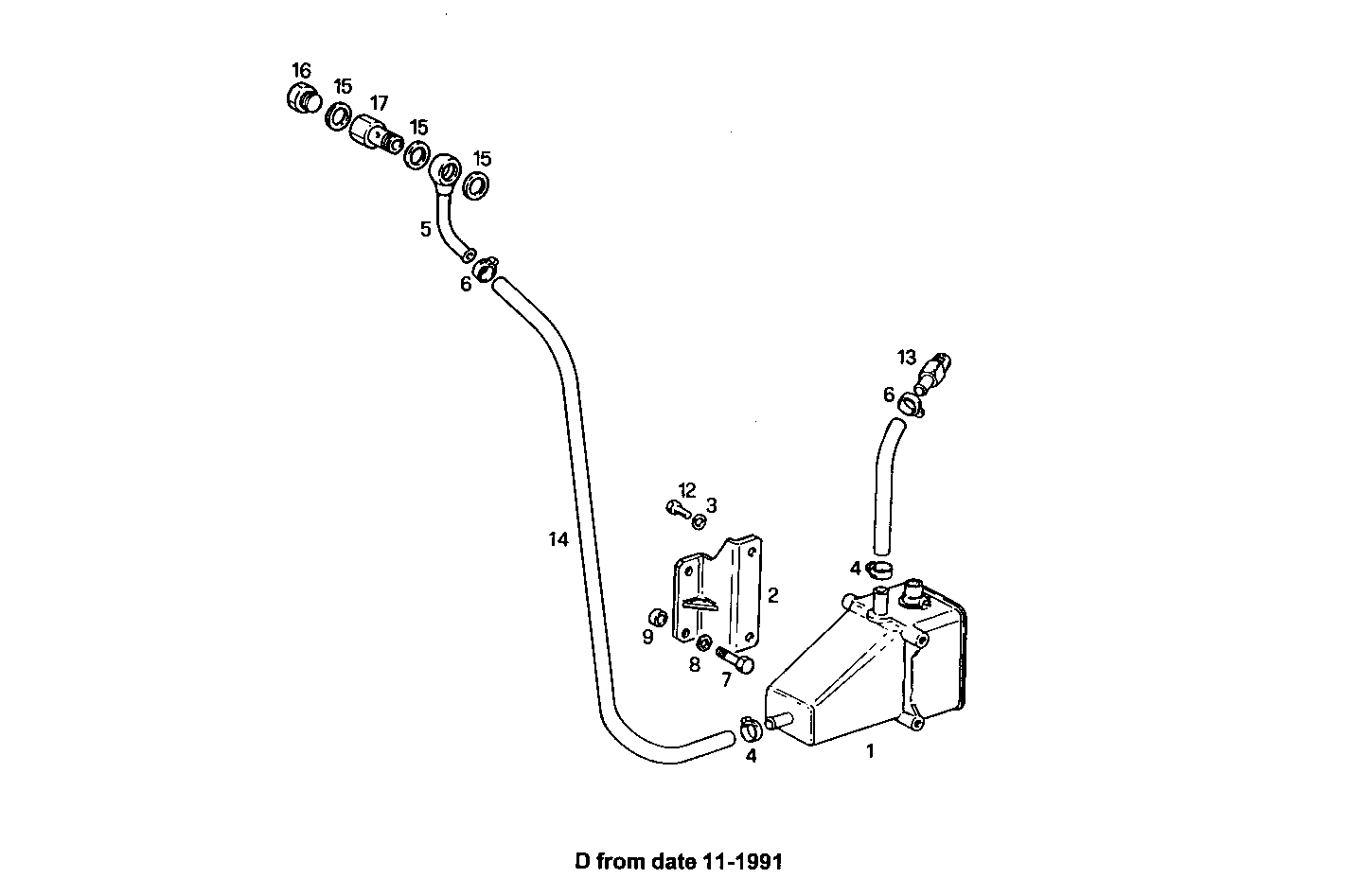

WATER PREHEATER DEVICE - 220V
8061M12.00 — 8061M12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008375 | HEATER HEATER | 1 | |
| 2 | 8006965 | SUPPORT SUPPORT | 1 | |
| 3 | 11197779 | SPRING WASHER SPRING WASHER | 2 | |
| 4 | 18088392 | CLIP CLIP | 2 | |
| 5 | 8008384 | WATER PIPE WATER PIPE | 1 | |
| 6 | 17764492 | CLIP CLIP | 2 | |
| 7 | 16610524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 17091074 | WASHER WASHER | 2 | |
| 9 | 4929462 | SPACING BAR SPACING BAR | 2 | |
| 10 | 8011610 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 11 | 8009376 | WIRE/CABLE WIRE/CABLE | 1 | |
| 12 | 10902121 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 4601938 | THREADED UNION THREADED UNION | 1 | |
| 14 | 8008385 | WATER HOSE WATER HOSE | 1 | |
| 15 | 10280060 | WASHER WASHER | 3 | |
| 16 | 10300640 | LOCK PLUG LOCK PLUG | 1 | |
| 17 | 4929073 | PIPE SOCKET PIPE SOCKET | 1 |
