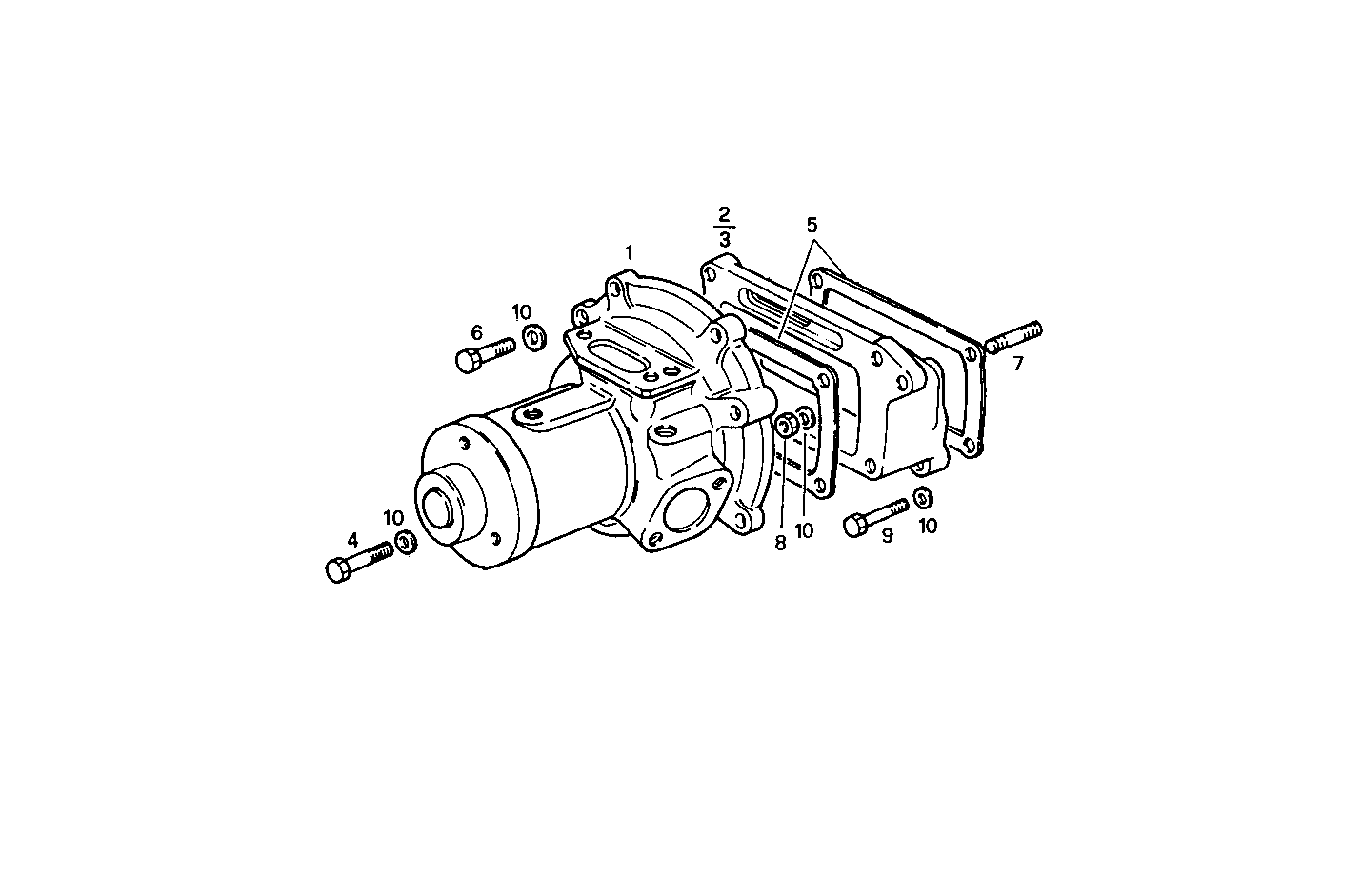

WATER PUMP
8061M12.00 — 8061M12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4813370 | WATER PUMP WATER PUMP | 1 | |
| 2 | 4647958 | SUPPORT SUPPORT | 1 | |
| 3 | 4840211 | SUPPORT SUPPORT | 1 | |
| 4 | 10923624 | SCREW SCREW | 1 | |
| 5 | 98400776 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 6 | 15888721 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 7 | 13449910 | STUD STUD | 1 | |
| 8 | 12164740 | HEXAGON NUT HEXAGON NUT | 1 | |
| 9 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 11190579 | SPRING WASHER SPRING WASHER | 8 |
