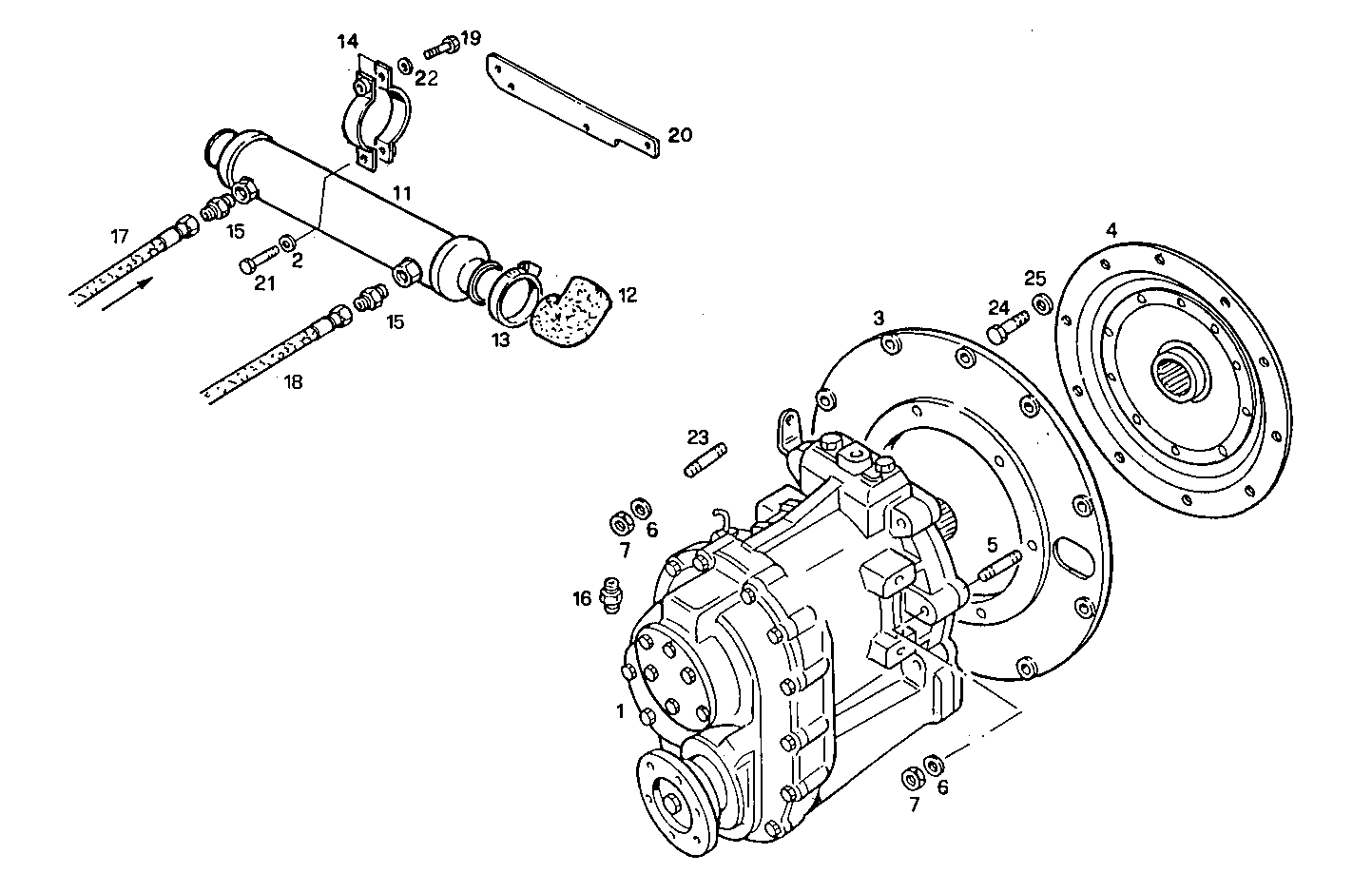

MARINE GEAR ZF-MPM IRM 50 PL2
8061M12.02 — 8061M12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8015293 | MARINE GEAR MARINE GEAR | 1 | |
| 3 | 4934782 | COUPLING BELL COUPLING BELL | 1 | |
| 4 | 8019065 | FLEXPLATE FLEXPLATE | 1 | |
| 5 | 13547521 | STUD STUD | 6 | |
| 6 | 11198379 | SPRING WASHER SPRING WASHER | 18 | |
| 7 | 12164711 | HEXAGON NUT HEXAGON NUT | 18 | |
| 11 | 8016304 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 | |
| 12 | 8016576 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 13 | 17764793 | CLIP CLIP | 2 | |
| 14 | 5116798 | CLIP CLIP | 4 | |
| 15 | 4935465 | PIPE SOCKET PIPE SOCKET | 2 | |
| 16 | 8101073 | PIPE SOCKET PIPE SOCKET | 2 | |
| 17 | 8100724 | HOSE HOSE | 1 | |
| 18 | 4935778 | OIL HOSE OIL HOSE | 1 | |
| 19 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 20 | 8016558 | RETAINER RETAINER | 1 | |
| 21 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 22 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 23 | 13449721 | STUD STUD | 12 | |
| 24 | 11306921 | SCREW SCREW | 24 | |
| 25 | 17095004 | WASHER WASHER | 8 |
