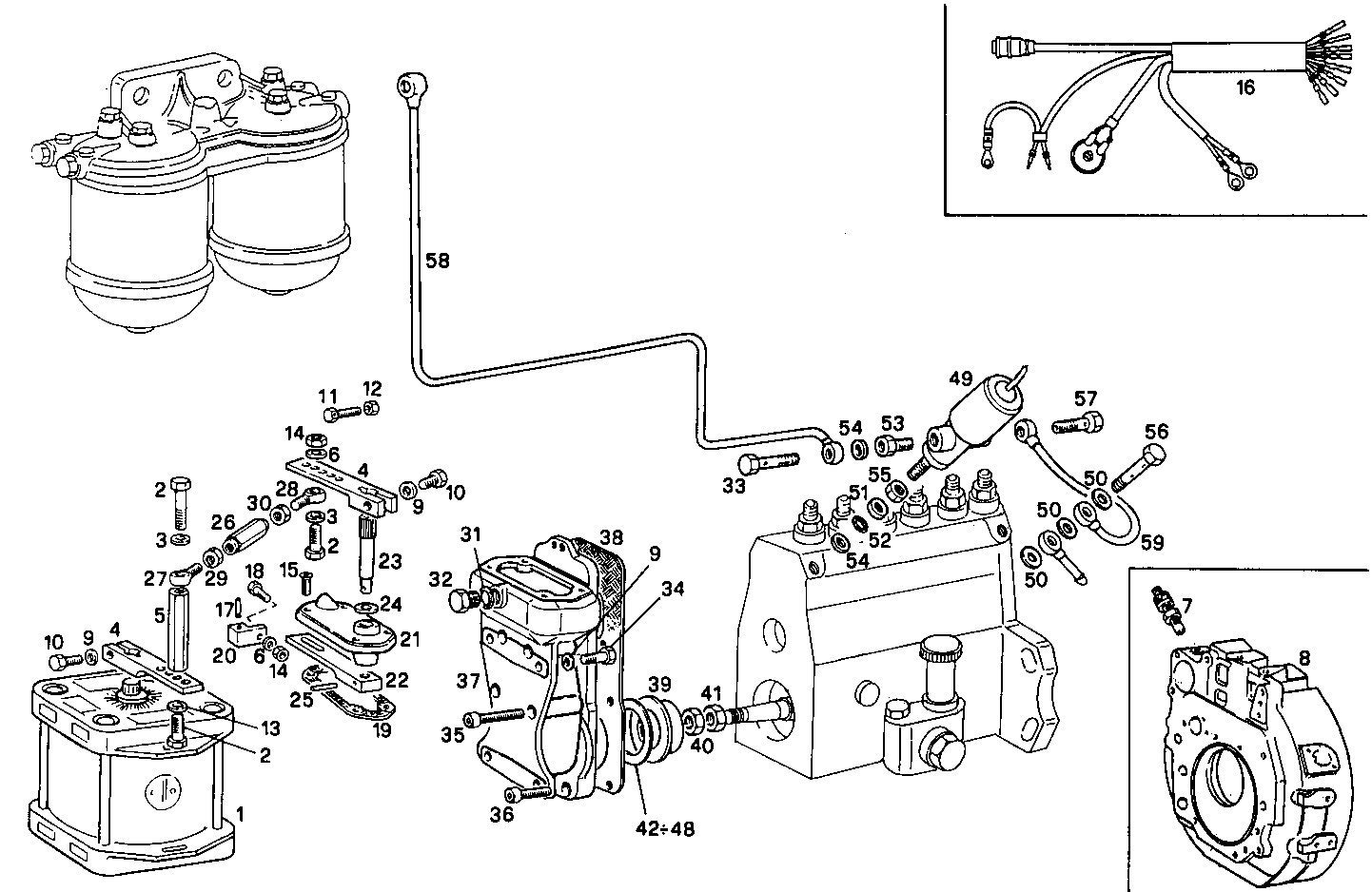

ELECTRONIC GOVERNOR WOODWARD
8061M12.12 — 8061M12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107492 | INJECTION CONTROL INJECTION CONTROL | 1 | |
| 2 | 8016470 | SCREW SCREW | 3 | |
| 3 | 11199279 | SPRING WASHER SPRING WASHER | 2 | |
| 4 | 8108603 | LEVER LEVER | 2 | |
| 5 | 8108656 | SPACING BAR SPACING BAR | 1 | |
| 6 | 17094504 | WASHER WASHER | 2 | |
| 7 | 8018673 | PICK-UP PICK-UP | 1 | |
| 8 | 8108389 | FLYWHEEL HOUSING FLYWHEEL HOUSING | 1 | |
| 9 | 17088474 | WASHER WASHER | 6 | |
| 10 | 16603724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 8108715 | SCREW SCREW | 1 | |
| 12 | 17037721 | NUT NUT | 1 | |
| 13 | 17094714 | WASHER WASHER | 1 | |
| 14 | 17152621 | NUT NUT | 2 | |
| 15 | 8109360 | SCREW SCREW | 4 | |
| 16 | 8020693 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 17 | 8108604 | PIN PIN | 1 | |
| 18 | 16602124 | SCREW SCREW | 1 | |
| 19 | 8009910 | GASKET GASKET | 1 | |
| 20 | 8007646 | SPACING BAR SPACING BAR | 1 | |
| 21 | 8007452 | COVER COVER | 1 | |
| 22 | 8108601 | LEVER LEVER | 1 | |
| 23 | 8109731 | PIN PIN | 1 | |
| 24 | 8109732 | WASHER WASHER | 1 | |
| 25 | 14158570 | DOWEL PIN DOWEL PIN | 1 | |
| 26 | 8016413 | TIE ROD TIE ROD | 1 | |
| 27 | 8016587 | TIE ROD TIE ROD | 1 | |
| 28 | 8016588 | TIE ROD TIE ROD | 1 | |
| 29 | 15896240 | NUT NUT | 1 | |
| 30 | 10789640 | NUT NUT | 1 | |
| 31 | 4858609 | WASHER WASHER | 1 | |
| 32 | 16992411 | THREADED PLUG THREADED PLUG | 1 | |
| 33 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 34 | 4934404 | SCREW SCREW | 4 | |
| 35 | 14309221 | SCREW SCREW | 2 | |
| 36 | 16689134 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 2 | |
| 37 | 8007453 | SUPPORT SUPPORT | 1 | |
| 38 | 8013620 | GASKET GASKET | 1 | |
| 39 | 8108613 | FLANGE FLANGE | 1 | |
| 40 | 10717311 | NUT NUT | 1 | |
| 41 | 8108716 | NUT NUT | 1 | |
| 42 | 8012533 | SPACING BAR SPACING BAR | 1 | |
| 43 | 8012532 | SPACING BAR SPACING BAR | 1 | |
| 44 | 8012622 | SHIM SHIM | 1 | |
| 45 | 8012531 | SPACING BAR SPACING BAR | 1 | |
| 46 | 8012530 | SPACING BAR SPACING BAR | 1 | |
| 47 | 8012529 | SPACING BAR SPACING BAR | 1 | |
| 48 | 8012528 | SPACING BAR SPACING BAR | 1 | |
| 49 | 8017500 | ELECTROVALVE ELECTROVALVE | 1 | |
| 50 | 98474308 | SEAL GASKET SEAL GASKET | 3 | |
| 51 | 8006339 | CAP CAP | 1 | |
| 52 | 17281581 | O-RING O-RING | 1 | |
| 53 | 8102465 | VALVE VALVE | 1 | |
| 54 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 55 | 16508711 | NUT NUT | 1 | |
| 56 | 61320123 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 57 | 8020609 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 58 | 8018345 | FUEL LINE FUEL LINE | 1 | |
| 59 | 8018344 | FUEL LINE FUEL LINE | 1 |
