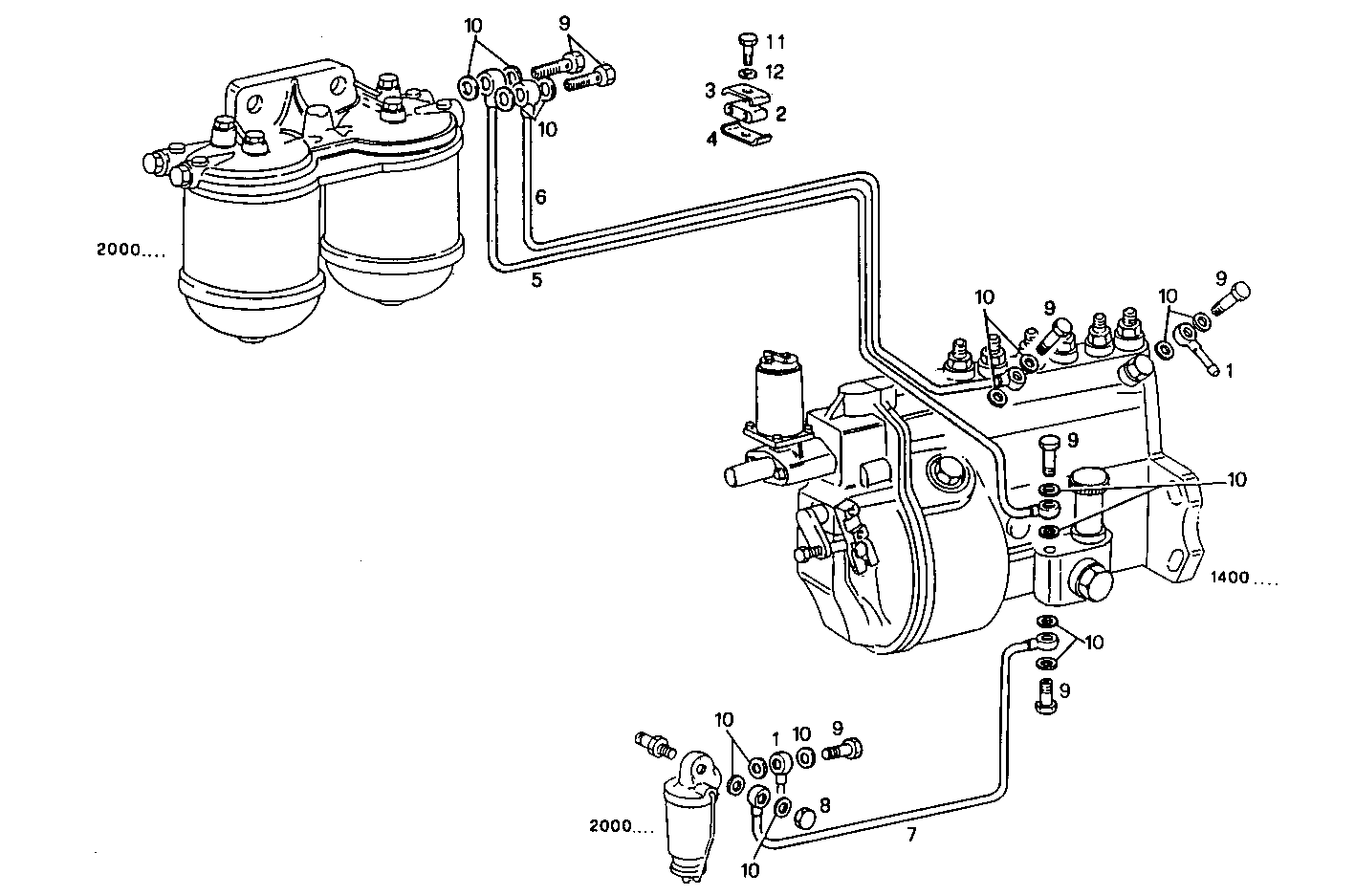

FUEL LINES
8061M12.31 — 8061M12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98413896 | PIPE SOCKET PIPE SOCKET | 2 | |
| 2 | 4659617 | RUBBER PAD RUBBER PAD | 1 | |
| 3 | 4659218 | CLIP CLIP | 1 | |
| 4 | 4659219 | PLATE PLATE | 1 | |
| 5 | 98420170 | FUEL LINE FUEL LINE | 1 | |
| 6 | 98419869 | FUEL LINE FUEL LINE | 1 | |
| 7 | 98413562 | FUEL LINE FUEL LINE | 1 | |
| 8 | 10182811 | PLUG PLUG | 2 | |
| 9 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 6 | |
| 10 | 4858608 | SEAL GASKET SEAL GASKET | 16 | |
| 11 | 10978221 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 17494631 | SPRING WASHER SPRING WASHER | 1 |
