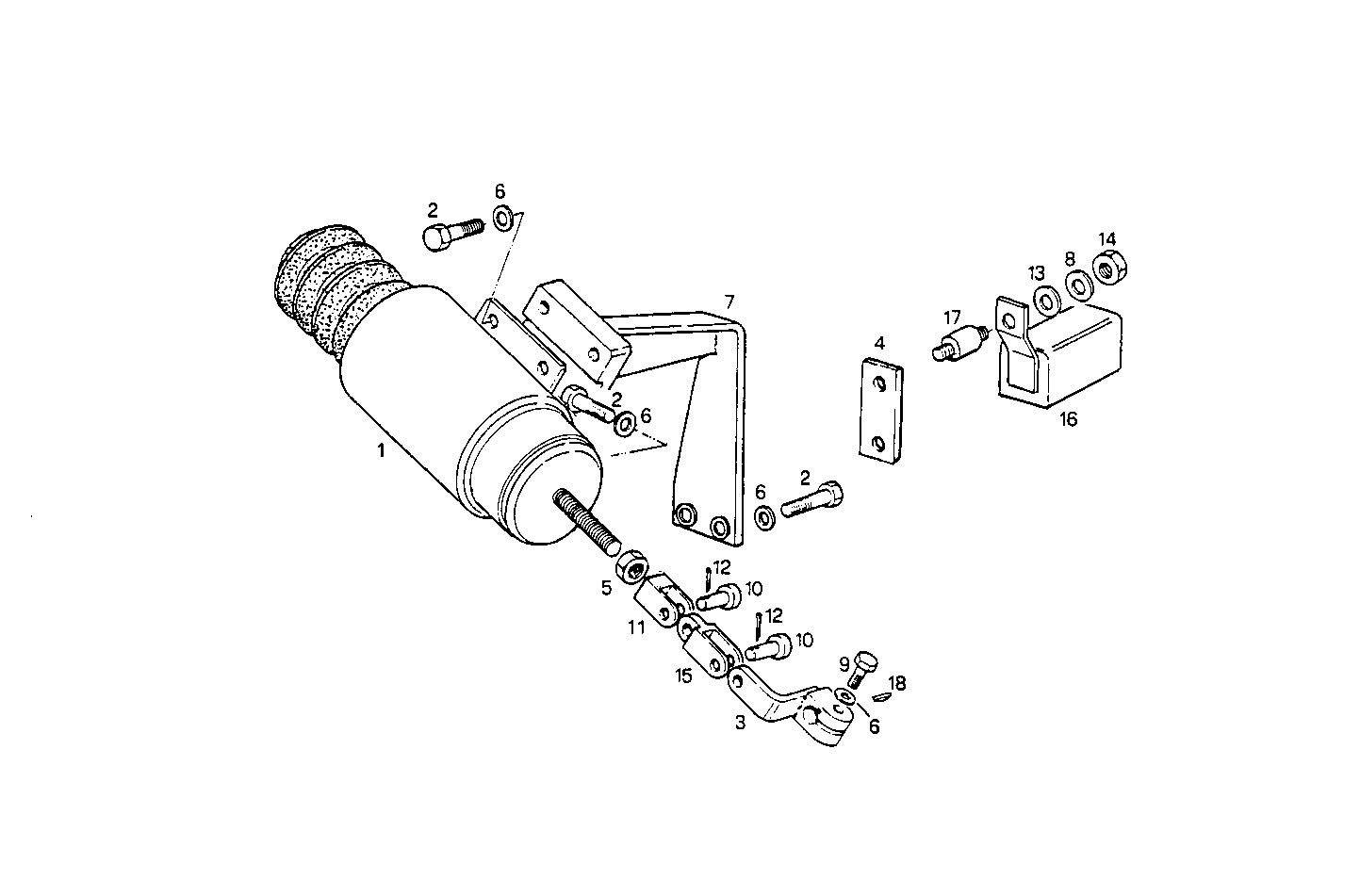

STOP SOLENOID - ENERGIZE TO STOP - 24V
8061M12.32 — 8061M12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8105568 | SOLENOID SOLENOID | 1 | |
| 2 | 10902221 | HEXAGON BOLT HEXAGON BOLT | 7 | |
| 3 | 8110753 | LEVER LEVER | 1 | |
| 4 | 8006517 | RETAINER RETAINER | 1 | |
| 5 | 15896211 | HEXAGON NUT HEXAGON NUT | 1 | |
| 6 | 11197771 | SPRING WASHER SPRING WASHER | 7 | |
| 7 | 8110754 | SUPPORT SUPPORT | 1 | |
| 8 | 10571470 | SPRING WASHER SPRING WASHER | 2 | |
| 9 | 10977721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 17718411 | PIN PIN | 2 | |
| 11 | 8109159 | CLEVIS CLEVIS | 1 | |
| 12 | 10734101 | SPLIT PIN SPLIT PIN | 2 | |
| 13 | 14496301 | WASHER WASHER | 2 | |
| 14 | 15896411 | HEXAGON NUT HEXAGON NUT | 2 | |
| 15 | 8108833 | CLEVIS CLEVIS | 1 | |
| 16 | 8109519 | RELAY RELAY | 1 | |
| 17 | 8105105 | DOWEL DOWEL | 1 | |
| 18 | 8101048 | KEY KEY | 1 |
