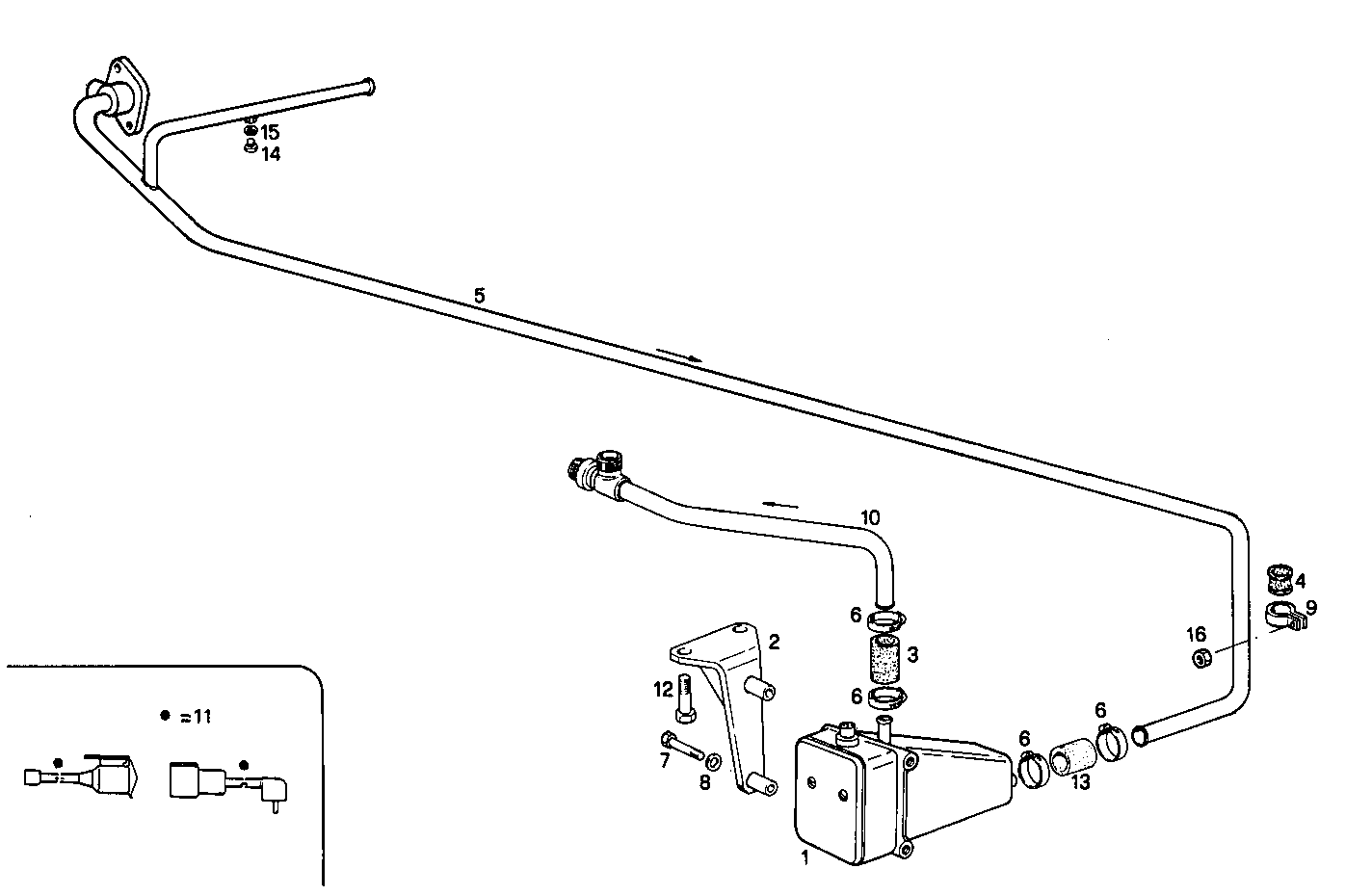

WATER PREHEATER DEVICE - 220V
8061M12.40 — 8061M12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008375 | HEATER HEATER | 1 | |
| 2 | 8012818 | SUPPORT SUPPORT | 1 | |
| 3 | 8015312 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 4 | 4757122 | RUBBER PAD RUBBER PAD | 1 | |
| 5 | 8012870 | WATER PIPE WATER PIPE | 1 | |
| 6 | 17764592 | CLIP CLIP | 4 | |
| 7 | 16604024 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 17088474 | WASHER WASHER | 2 | |
| 9 | 4760226 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 10 | 8015320 | WATER PIPE WATER PIPE | 1 | |
| 11 | 8009376 | WIRE/CABLE WIRE/CABLE | 1 | |
| 12 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 8109346 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 14 | 10300911 | PLUG PLUG | 1 | |
| 15 | 4858605 | WASHER WASHER | 1 | |
| 16 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 |
