HAND ACCELERATOR
8061M12.43 — 8061M12

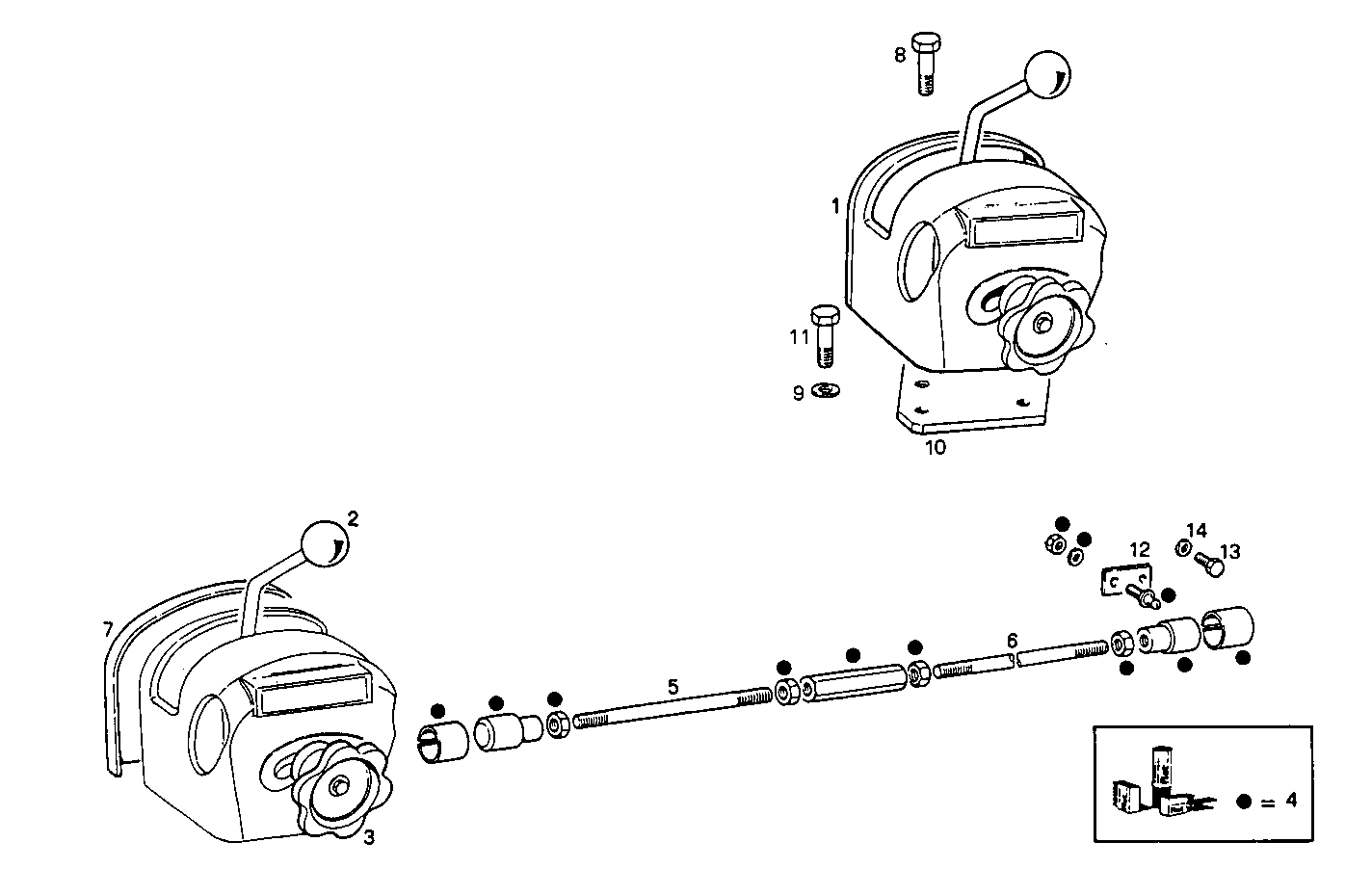

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4927113 | HAND ACCELERATOR HAND ACCELERATOR | 1 | |
| 2 | 4927041 | HANDLE BALL HANDLE BALL | 1 | |
| 3 | 4927042 | HANDWHEEL HANDWHEEL | 1 | |
| 4 | 8090372 | KIT KIT | 1 | |
| 5 | 8105563 | TIE ROD TIE ROD | 1 | |
| 6 | 8105294 | TIE ROD TIE ROD | 1 | |
| 7 | 4927115 | COVER COVER | 1 | |
| 8 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 10 | 4929494 | PLATE PLATE | 1 | |
| 11 | 16607624 | SCREW SCREW | 2 | |
| 12 | 8113637 | SPACING BAR SPACING BAR | 1 | |
| 13 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 17088474 | WASHER WASHER | 2 |
