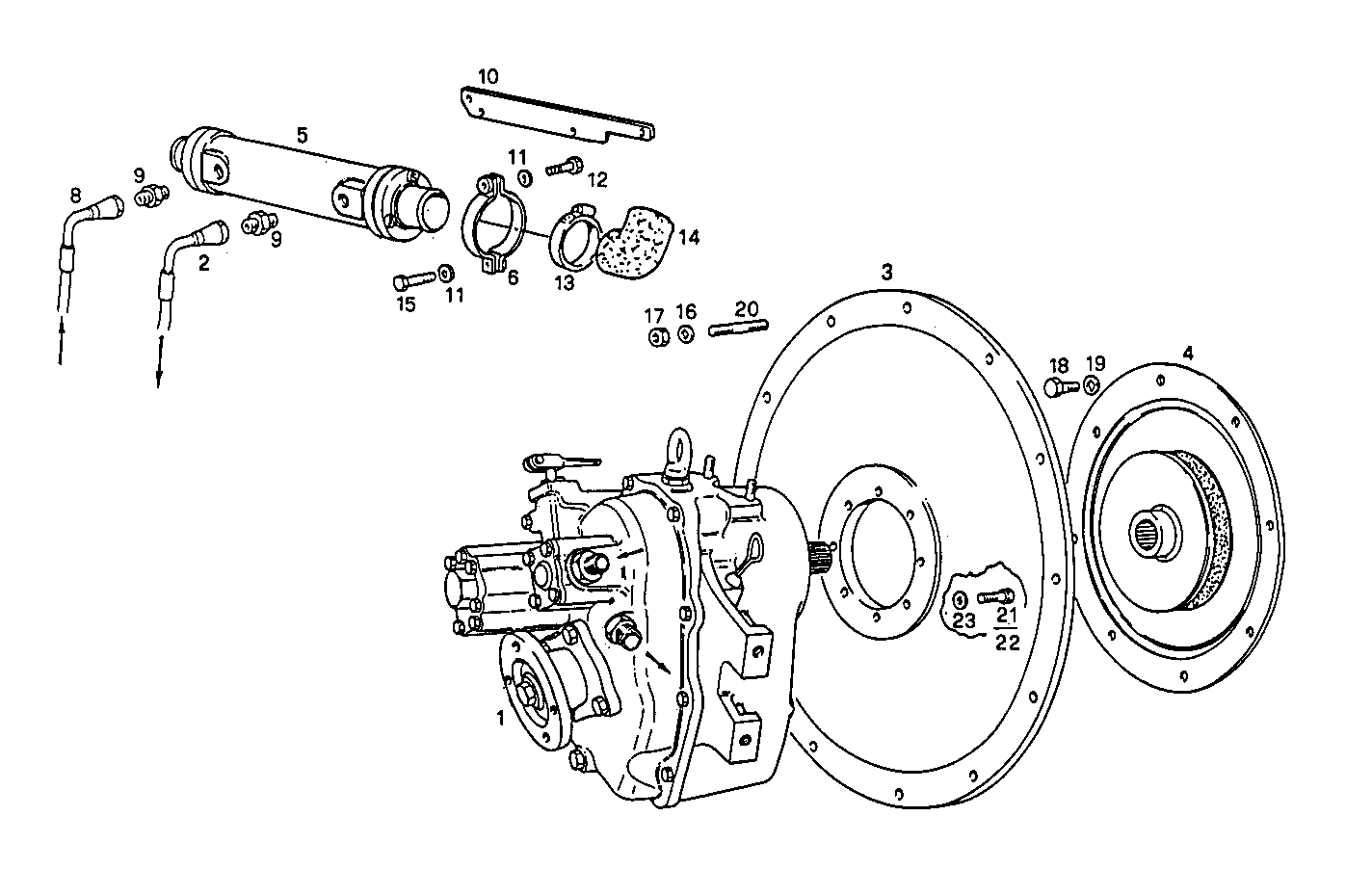

MARINE GEAR ZF-MPM IRM 280-1A
8061M14.01 — 8061M14
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8021730 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 8105620 | HOSE HOSE | 1 | |
| 3 | 8019193 | FLANGE FLANGE | 1 | |
| 4 | 8019065 | FLEXPLATE FLEXPLATE | 1 | |
| 5 | 8016304 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 | |
| 6 | 5116798 | CLIP CLIP | 4 | |
| 8 | 4935779 | HOSE HOSE | 1 | |
| 9 | 8101073 | PIPE SOCKET PIPE SOCKET | 2 | |
| 10 | 8016558 | RETAINER RETAINER | 2 | |
| 11 | 17088474 | WASHER WASHER | 2 | |
| 12 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 17764793 | CLIP CLIP | 2 | |
| 14 | 8102099 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 15 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 17 | 17038221 | HEXAGON NUT HEXAGON NUT | 8 | |
| 18 | 11306921 | SCREW SCREW | 8 | |
| 19 | 17095004 | WASHER WASHER | 8 | |
| 20 | 13449521 | STUD STUD | 12 | |
| 21 | 16609924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 22 | 16610024 | SCREW SCREW | 6 | |
| 23 | 17091074 | WASHER WASHER | 8 |
