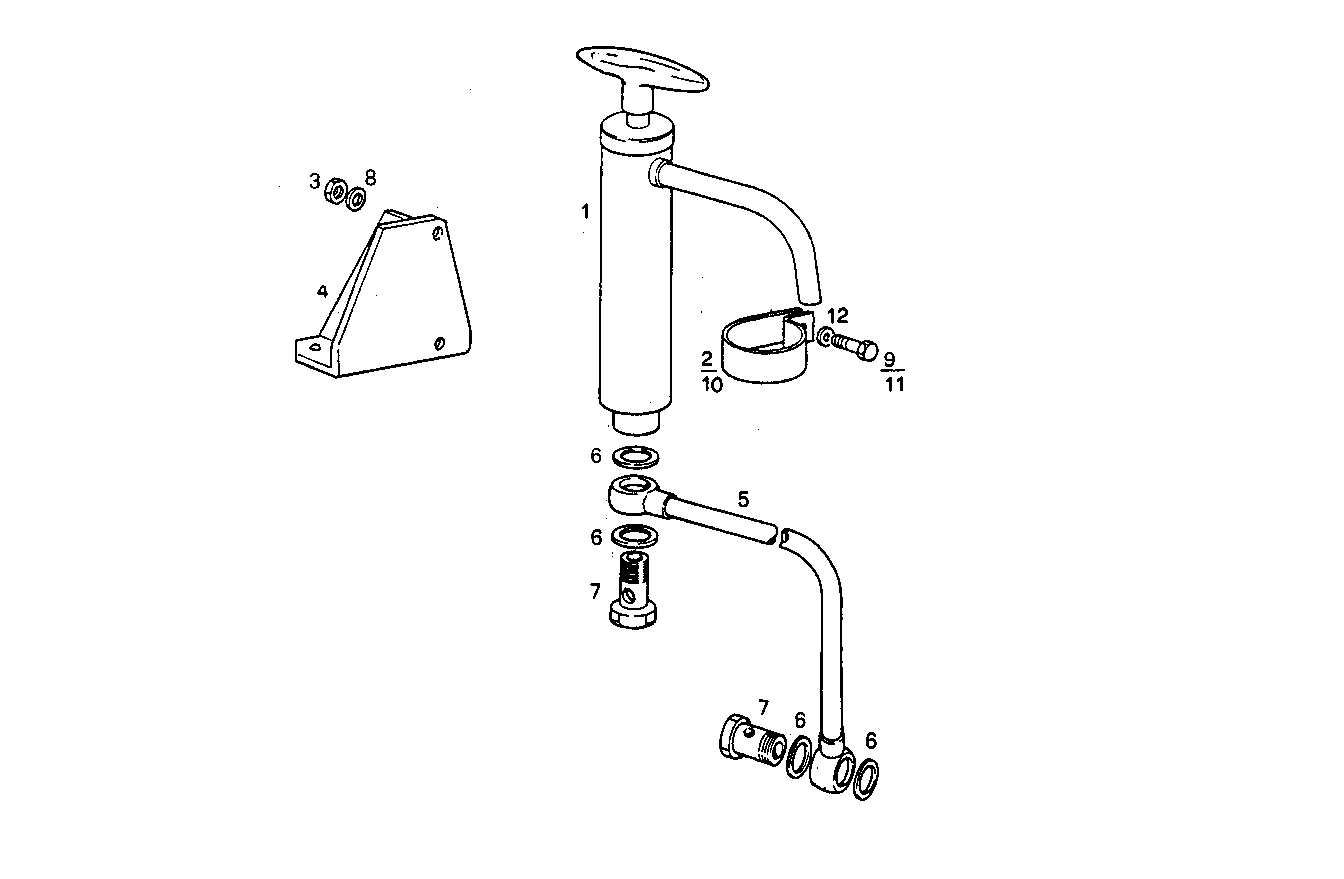

OIL OUTLET PUMP
8061M14.01 — 8061M14
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8019921 | HAND PUMP HAND PUMP | 1 | |
| 2 | 4928851 | CLIP CLIP | 2 | |
| 3 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 4 | 8107211 | RETAINER RETAINER | 1 | |
| 5 | 8011625 | OIL LINE OIL LINE | 1 | |
| 6 | 4858609 | WASHER WASHER | 4 | |
| 7 | 4864084 | BANJO BOLT BANJO BOLT | 2 | |
| 8 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 9 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 4935081 | CLIP CLIP | 2 | |
| 11 | 16607424 | SCREW SCREW | 2 | |
| 12 | 17090174 | SPRING WASHER SPRING WASHER | 2 |
