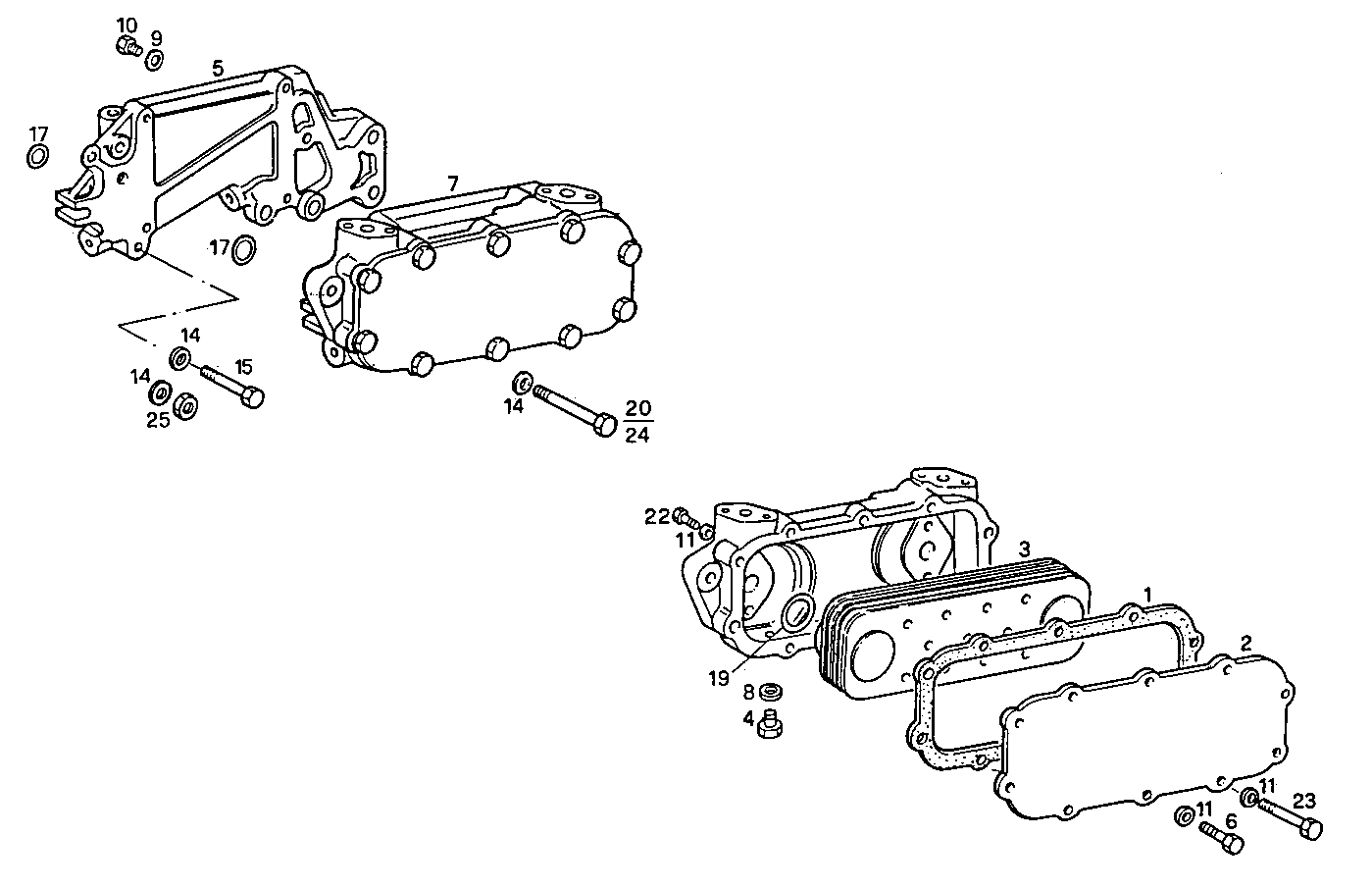

OIL - WATER HEAT EXCHANGER
8061M14.01 — 8061M14
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98400786 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 2 | 4755010 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 3 | 98417614 | OIL COOLER OIL COOLER | 1 | |
| 4 | 98435232 | PLUG PLUG | 1 | |
| 5 | 4763099 | SUPPORT SUPPORT | 1 | |
| 6 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 7 | 98428717 | HEAT EXCHANGER HEAT EXCHANGER | 1 | |
| 8 | 10260060 | SEAL GASKET SEAL GASKET | 1 | |
| 9 | 10263160 | SEAL GASKET SEAL GASKET | 4 | |
| 10 | 10273111 | LOCK PLUG LOCK PLUG | 4 | |
| 11 | 10519601 | WASHER WASHER | 13 | |
| 14 | 11198671 | SPRING WASHER SPRING WASHER | 3 | |
| 15 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 17 | 14457481 | O-RING O-RING | 5 | |
| 19 | 14458281 | O-RING O-RING | 2 | |
| 20 | 15540721 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 22 | 16043224 | SCREW SCREW | 4 | |
| 23 | 16045021 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 24 | 16610224 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 25 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 |
