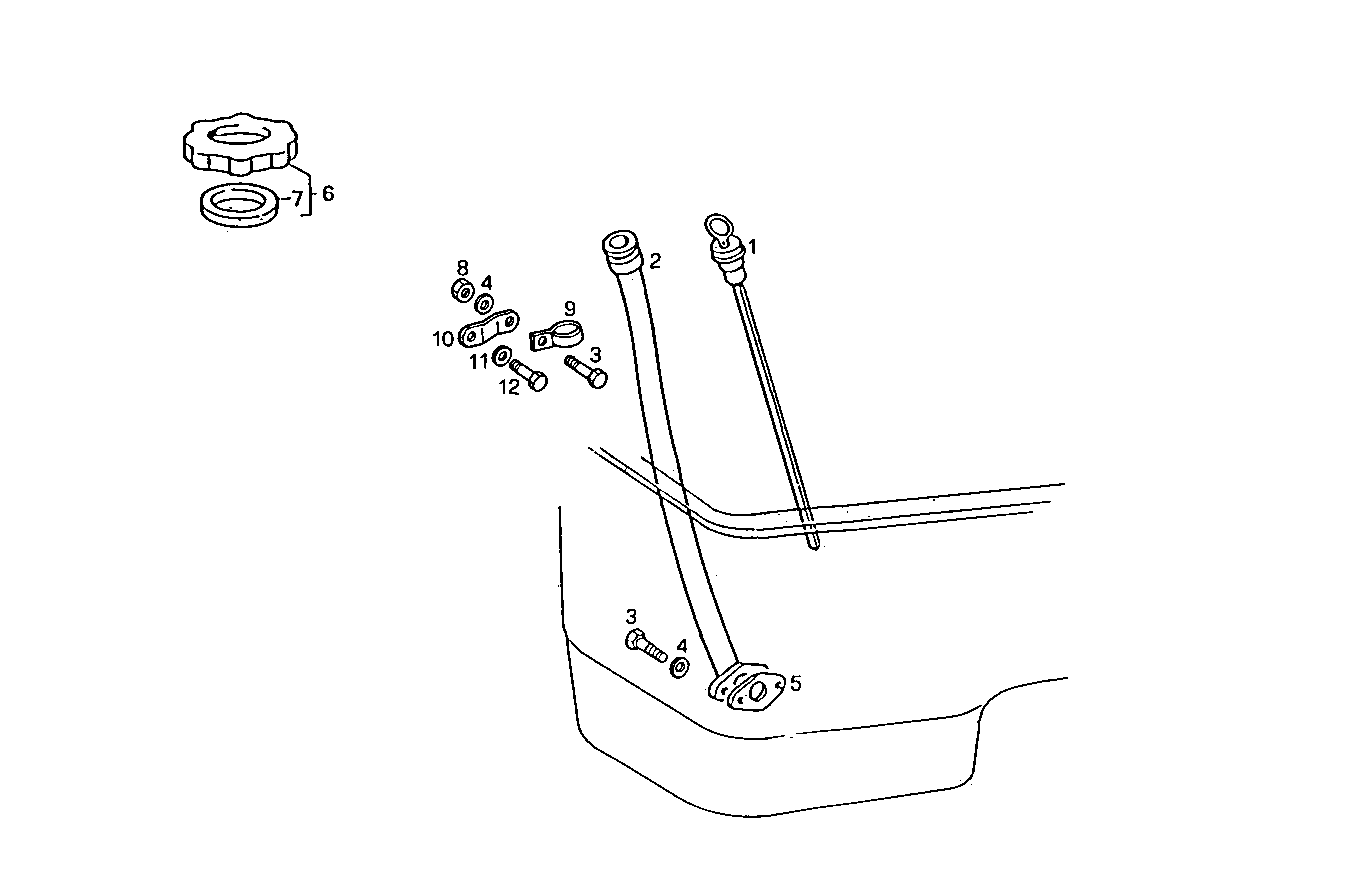

OIL DIPSTICK
8061M14.02 — 8061M14
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8024258 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 2 | 8024206 | ROD GUIDE ROD GUIDE | 1 | |
| 3 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 5 | 98401052 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 4232606 | OIL FILLER PLUG OIL FILLER PLUG | 1 | |
| 7 | 98418978 | GASKET GASKET | 1 | |
| 8 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 9 | 98437364 | CLIP CLIP | 1 | |
| 10 | 8101336 | RETAINER RETAINER | 1 | |
| 11 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 12 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 1 |
