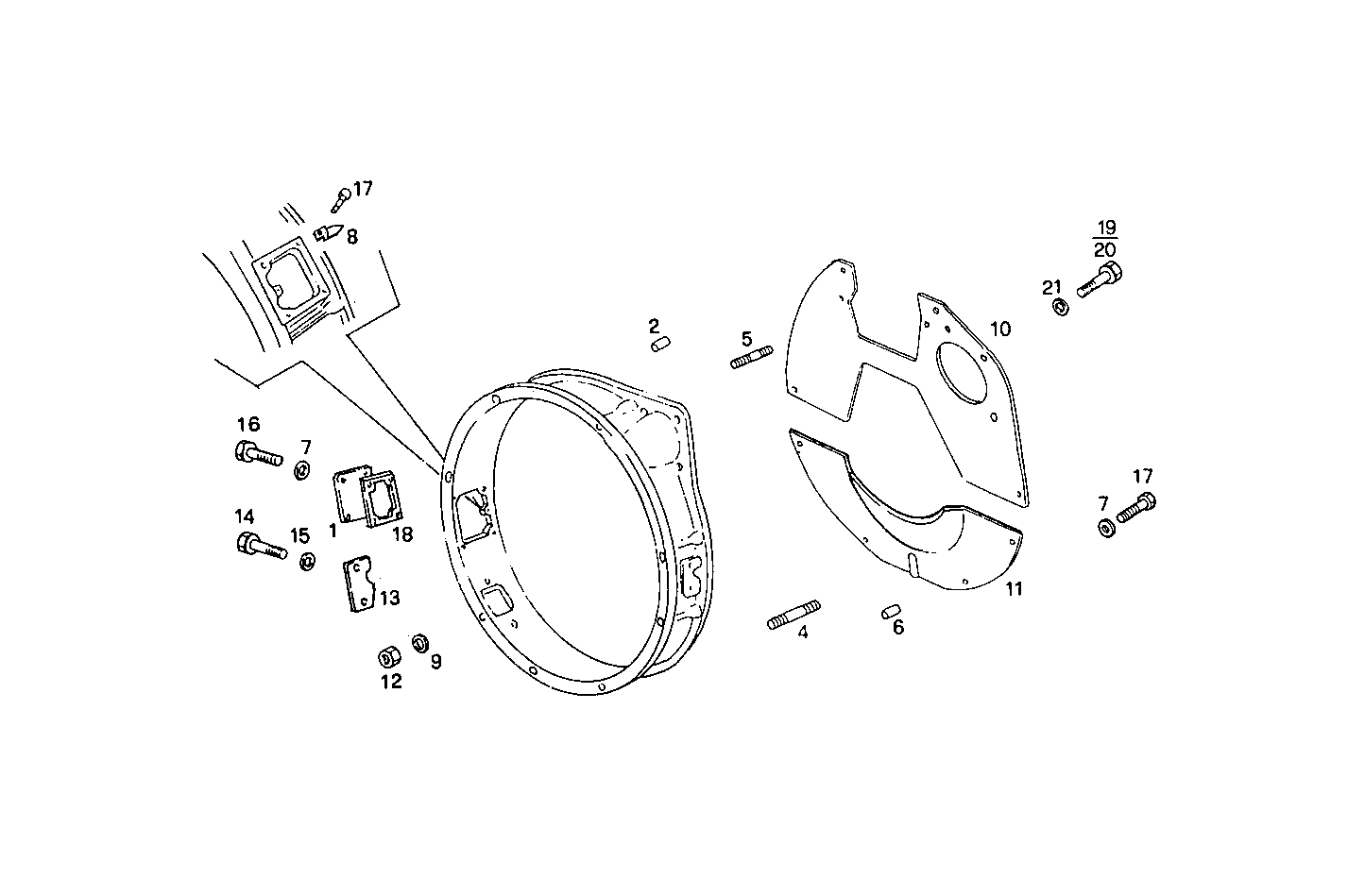

DOUBLE BEARING ELECTRIC MACHINE
8061Si06.05 — 8061Si06
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500330791 | COVER COVER | 1 | |
| 2 | 4647524 | DOWEL PIN DOWEL PIN | 1 | |
| 4 | 16735724 | STUD STUD | 2 | |
| 5 | 16736024 | STUD STUD | 2 | |
| 6 | 8813445 | DOWEL PIN DOWEL PIN | 2 | |
| 7 | 17089474 | SPRING WASHER SPRING WASHER | 8 | |
| 8 | 4607466 | CONNECTING PLATE CONNECTING PLATE | 1 | |
| 9 | 17091974 | SPRING WASHER SPRING WASHER | 4 | |
| 10 | 8025597 | PROTECTION PROTECTION | 1 | |
| 11 | 8584074 | PROTECTION PROTECTION | 1 | |
| 12 | 17038721 | NUT NUT | 4 | |
| 13 | 8025614 | COVER COVER | 2 | |
| 14 | 16601924 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 15 | 17094504 | WASHER WASHER | 4 | |
| 16 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 17 | 16605424 | SCREW SCREW | 5 | |
| 18 | 98417986 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 19 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 20 | 16607924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 21 | 17090174 | SPRING WASHER SPRING WASHER | 3 |
