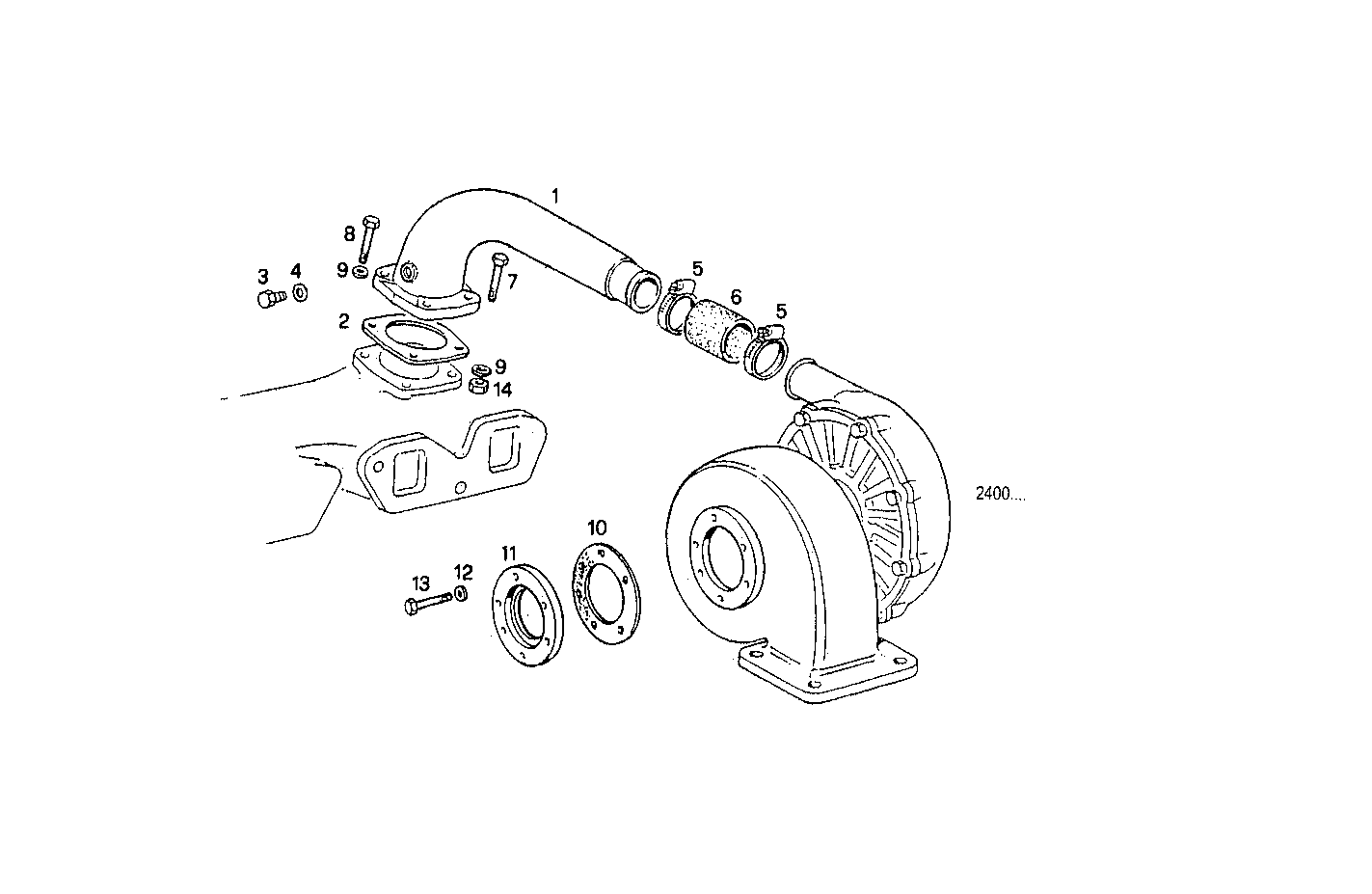

SUPERCHARGING LINES
8061Si11.06 — 8061Si11
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4754495 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 2 | 98400790 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 10305171 | PLUG PLUG | 1 | |
| 4 | 10279560 | SEAL GASKET SEAL GASKET | 1 | |
| 5 | 98490783 | CLIP CLIP | 2 | |
| 6 | 98448211 | TURBOCHARGER HOSE TURBOCHARGER HOSE | 1 | |
| 7 | 16605924 | SCREW SCREW | 2 | |
| 8 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 17094914 | WASHER WASHER | 4 | |
| 10 | 98428398 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 11 | 98402022 | FLANGE FLANGE | 1 | |
| 12 | 4799587 | WASHER WASHER | 6 | |
| 13 | 4799275 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 14 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 |
