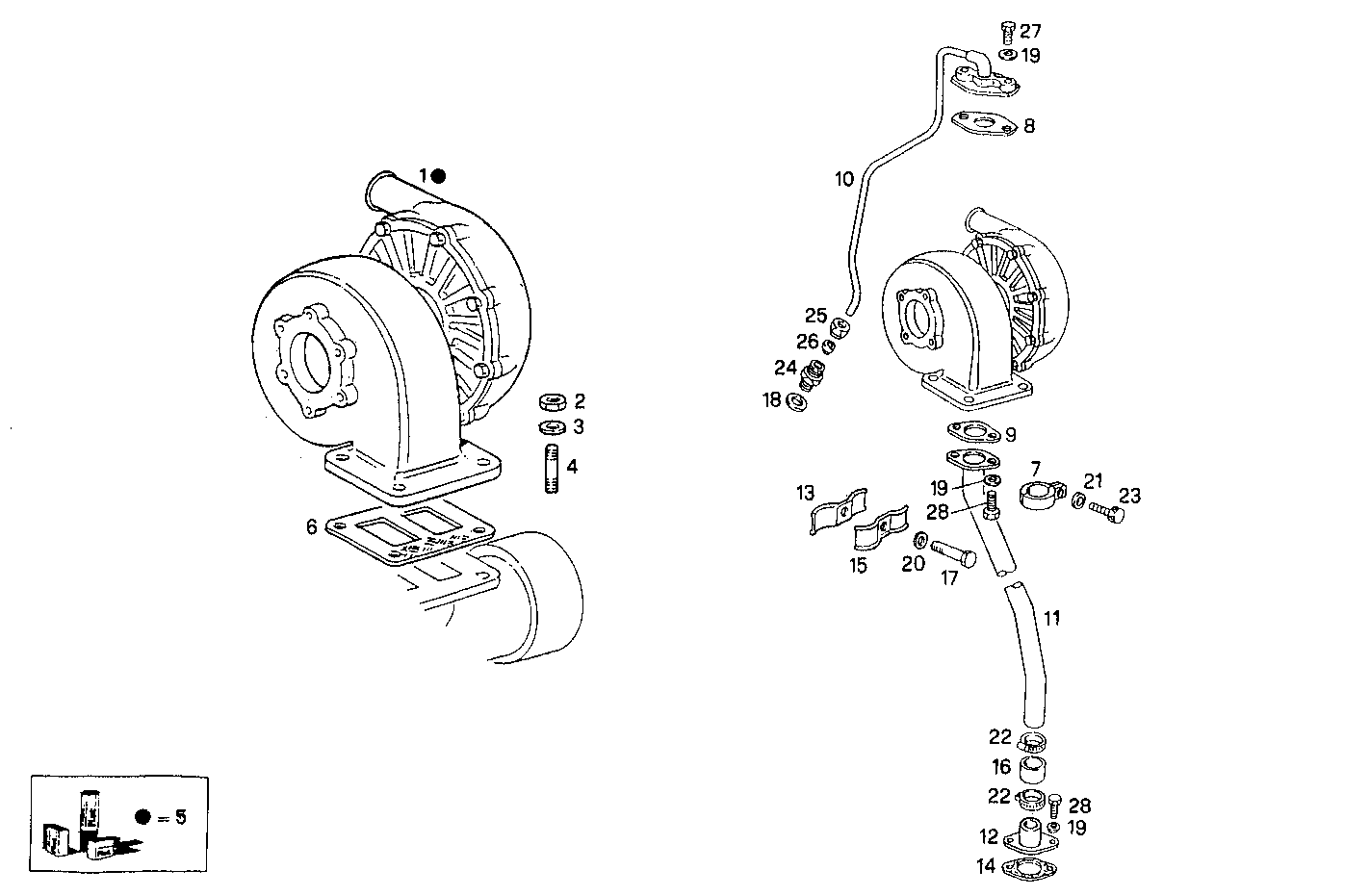

TURBOCHARGER
8061Si12.06 — 8061Si12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8018151 | TURBOCHARGER TURBOCHARGER | 1 | |
| 2 | 17038121 | HEXAGON NUT HEXAGON NUT | 4 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 4 | 16731224 | STUD STUD | 4 | |
| 5 | 8092490 | KIT-TURBOCHARGER KIT-TURBOCHARGER | 1 | |
| 6 | 98428396 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 7 | 4033229 | CLIP CLIP | 1 | |
| 8 | 98415922 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 98415923 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 10 | 8018924 | OIL LINE OIL LINE | 1 | |
| 11 | 4779773 | OIL LINE OIL LINE | 1 | |
| 12 | 4754153 | FLANGED SOCKET FLANGED SOCKET | 1 | |
| 13 | 4755435 | RETAINER RETAINER | 1 | |
| 14 | 98401046 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 15 | 4755436 | RETAINER RETAINER | 1 | |
| 16 | 98420478 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 17 | 16603724 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 18 | 4858609 | WASHER WASHER | 1 | |
| 19 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 20 | 17088474 | WASHER WASHER | 1 | |
| 21 | 17090274 | WASHER WASHER | 1 | |
| 22 | 17764592 | CLIP CLIP | 2 | |
| 23 | 15970121 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 24 | 16500311 | PIPE SOCKET PIPE SOCKET | 1 | |
| 25 | 16506911 | NUT NUT | 1 | |
| 26 | 16507611 | WASHER WASHER | 1 | |
| 27 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 28 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 4 |
