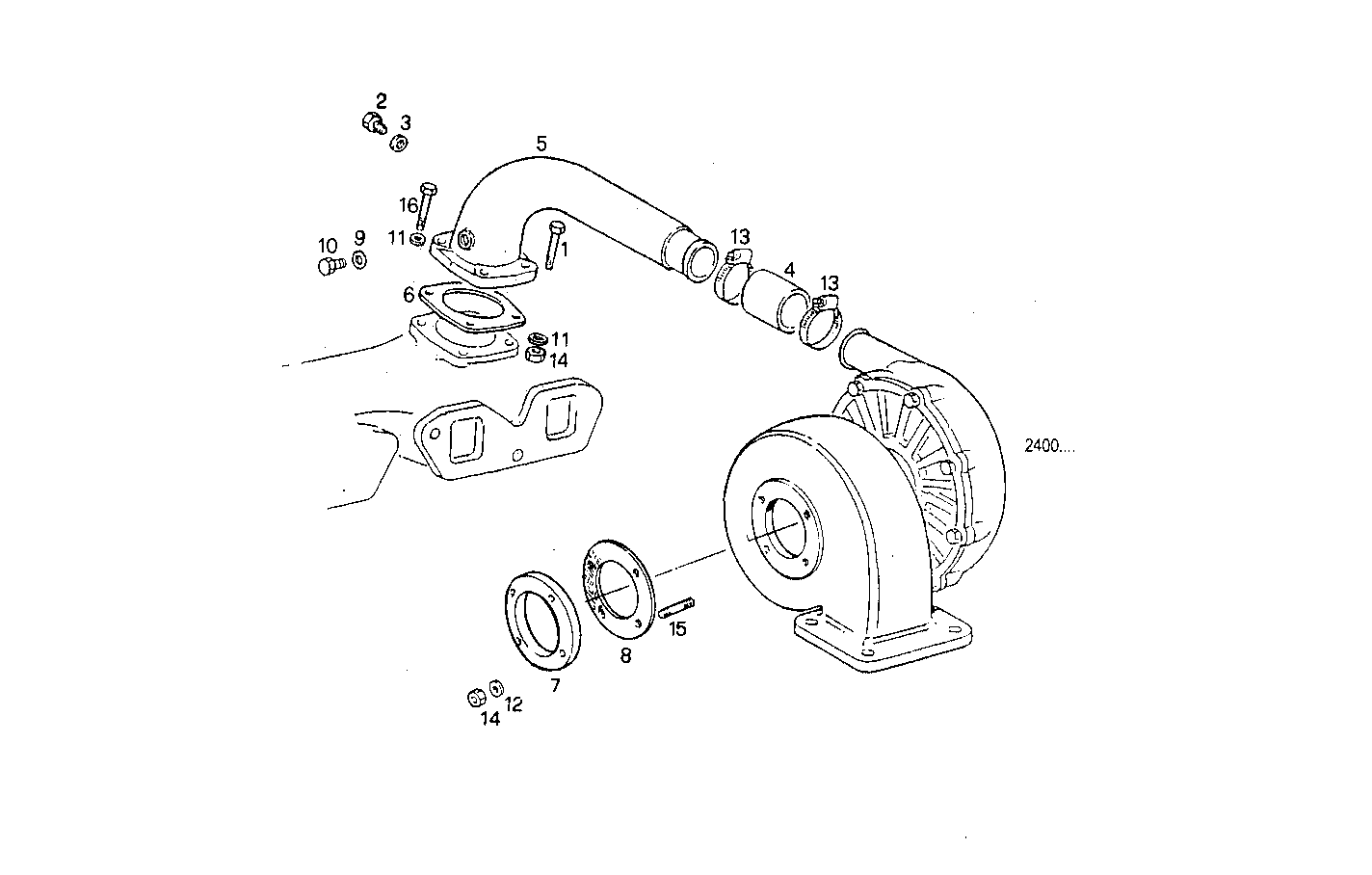

SUPERCHARGING LINES
8061Si13.05 — 8061Si13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16605924 | SCREW SCREW | 2 | |
| 2 | 11903111 | LOCK PLUG LOCK PLUG | 1 | |
| 3 | 4858606 | GASKET GASKET | 1 | |
| 4 | 98448211 | TURBOCHARGER HOSE TURBOCHARGER HOSE | 1 | |
| 5 | 4754495 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 6 | 98400790 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 7 | 8112977 | FLANGE FLANGE | 1 | |
| 8 | 4729026 | GASKET GASKET | 1 | |
| 9 | 10263460 | WASHER WASHER | 1 | |
| 10 | 16992611 | THREADED PLUG THREADED PLUG | 1 | |
| 11 | 17094914 | WASHER WASHER | 4 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 13 | 17768191 | CLIP CLIP | 2 | |
| 14 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 | |
| 15 | 16729524 | STUD STUD | 4 | |
| 16 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 |
