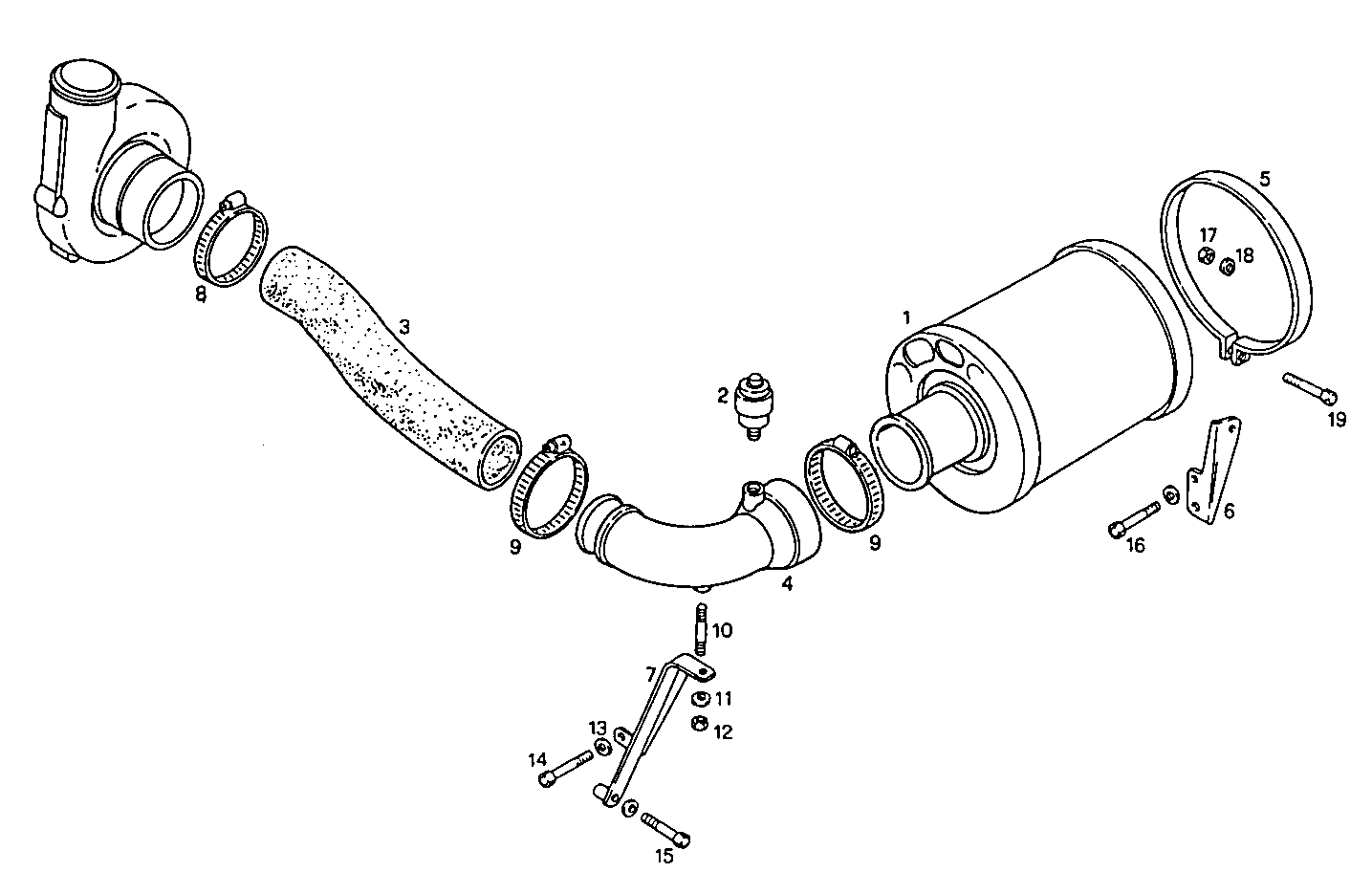

DRY AIR CLEANER
8061Si15.05 — 8061Si15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008293 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 4936137 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 3 | 8006068 | FILTER HOSE FILTER HOSE | 1 | |
| 4 | 8008294 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 5 | 8008259 | CLIP CLIP | 1 | |
| 6 | 8008261 | RETAINER RETAINER | 1 | |
| 7 | 8008260 | RETAINER RETAINER | 1 | |
| 8 | 17765192 | HOSE CLIP HOSE CLIP | 1 | |
| 9 | 17765392 | CLIP CLIP | 2 | |
| 10 | 13449321 | STUD STUD | 1 | |
| 11 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 12 | 12164711 | HEXAGON NUT HEXAGON NUT | 1 | |
| 13 | 11190579 | SPRING WASHER SPRING WASHER | 1 | |
| 14 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 16044121 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 17 | 14496601 | WASHER WASHER | 1 | |
| 18 | 12574511 | NUT NUT | 1 | |
| 19 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 1 |
