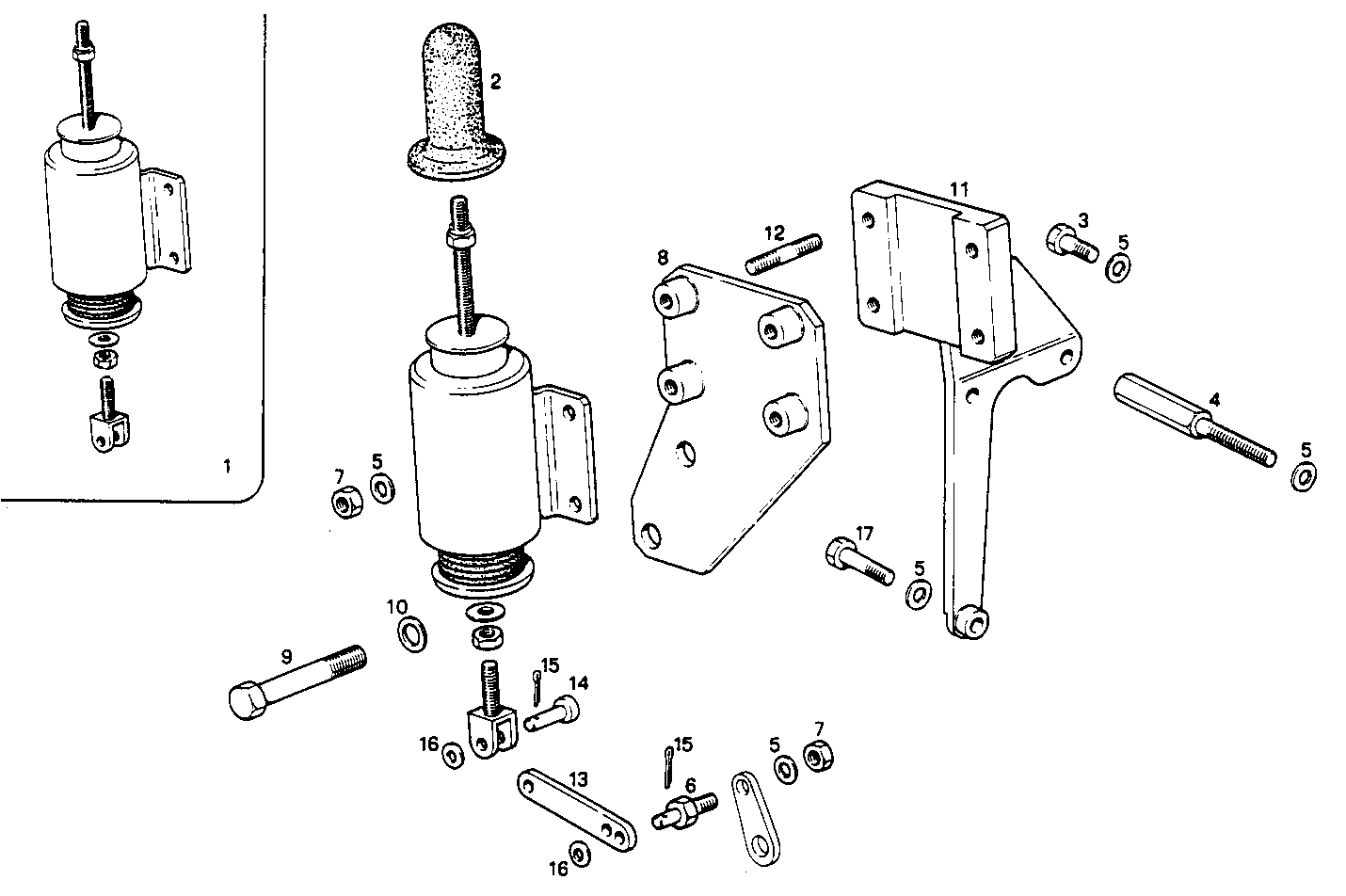

STOP SOLENOID - ENERGIZE TO RUN - 24V
8061Si15.05 — 8061Si15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8112462 | SOLENOID SOLENOID | 1 | |
| 2 | 8111523 | PROTECTIVE HOOD PROTECTIVE HOOD | 1 | |
| 3 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 8012958 | SPACING BAR SPACING BAR | 2 | |
| 5 | 17088474 | WASHER WASHER | 10 | |
| 6 | 8012959 | PIN PIN | 1 | |
| 7 | 17037821 | HEXAGON NUT HEXAGON NUT | 5 | |
| 8 | 8012076 | PLATE PLATE | 1 | |
| 9 | 11306921 | SCREW SCREW | 2 | |
| 10 | 11198371 | SPRING WASHER SPRING WASHER | 2 | |
| 11 | 8012956 | SUPPORT SUPPORT | 1 | |
| 12 | 16744824 | STUD STUD | 4 | |
| 13 | 8012882 | CLEVIS CLEVIS | 1 | |
| 14 | 17718411 | PIN PIN | 1 | |
| 15 | 16852501 | SPLIT PIN SPLIT PIN | 2 | |
| 16 | 17094504 | WASHER WASHER | 2 | |
| 17 | 16603824 | SCREW SCREW | 1 |
