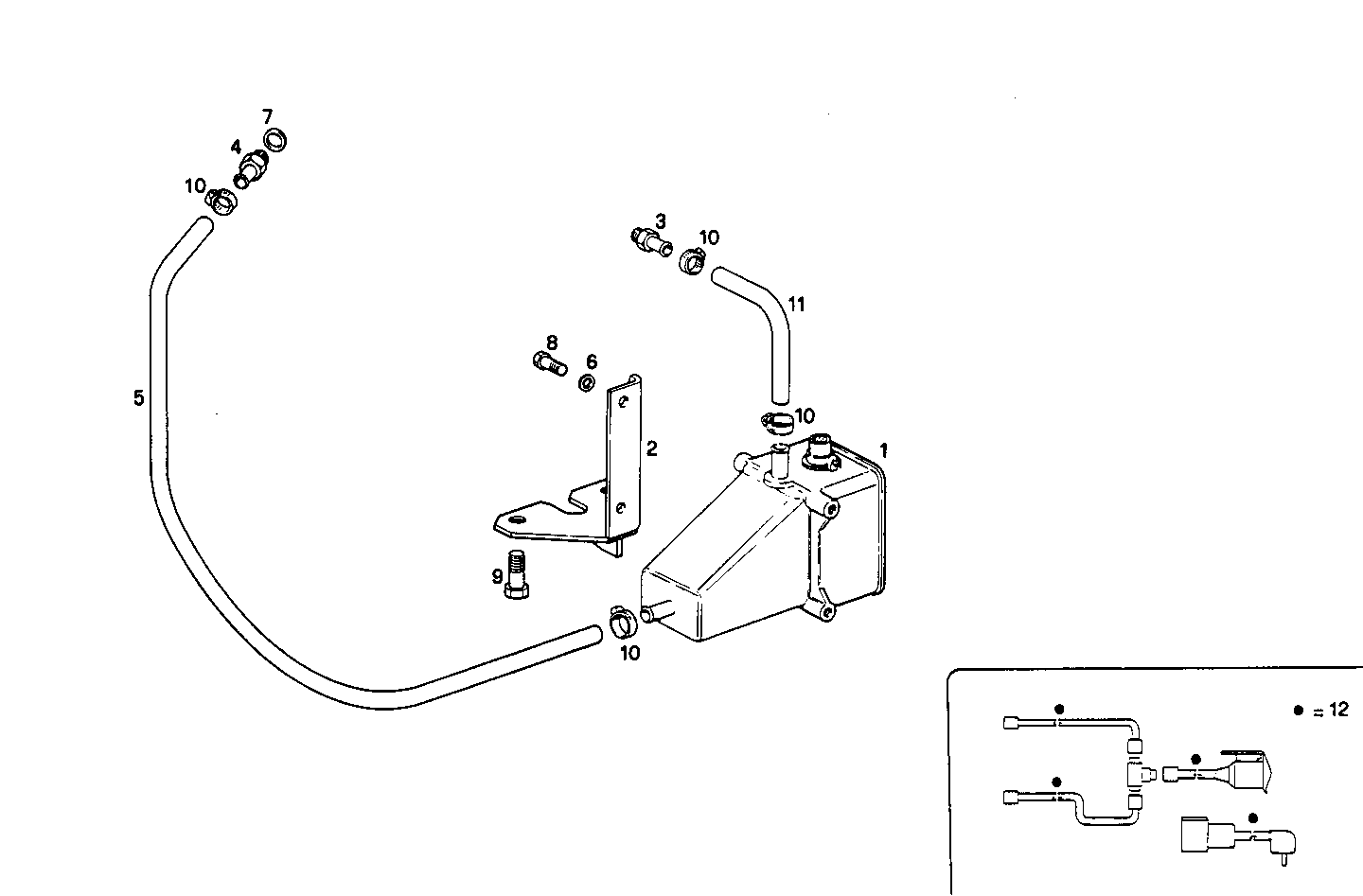

WATER PREHEATER DEVICE - 220V
8061Si25.00 — 8061Si25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008375 | HEATER HEATER | 1 | |
| 2 | 8006966 | RETAINER RETAINER | 1 | |
| 3 | 4601938 | THREADED UNION THREADED UNION | 1 | |
| 4 | 8112804 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 8008376 | WATER HOSE WATER HOSE | 1 | |
| 6 | 11197771 | SPRING WASHER SPRING WASHER | 2 | |
| 7 | 10257460 | SEAL GASKET SEAL GASKET | 1 | |
| 8 | 10902121 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 17764492 | CLIP CLIP | 4 | |
| 11 | 8011627 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 12 | 8009376 | WIRE/CABLE WIRE/CABLE | 1 |
