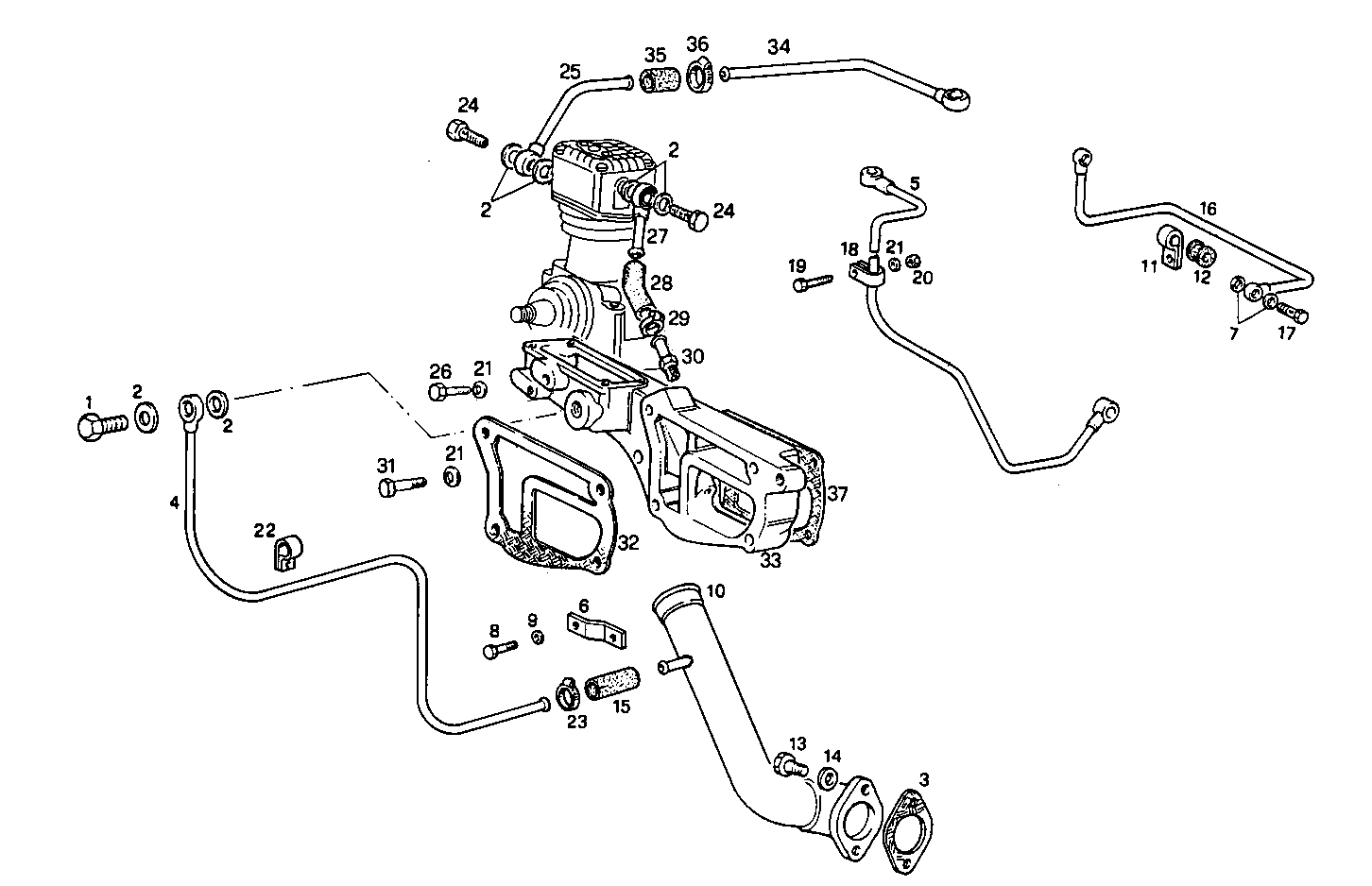

AIR COMPRESSOR
8061Si25.05 — 8061Si25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 10184417 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 2 | 4858609 | WASHER WASHER | 2 | |
| 3 | 599777 | GASKET GASKET | 1 | |
| 4 | 8011179 | WATER PIPE WATER PIPE | 1 | |
| 5 | 8010959 | OIL LINE OIL LINE | 1 | |
| 6 | 8100407 | RETAINER RETAINER | 1 | |
| 7 | 10260160 | SEAL GASKET SEAL GASKET | 7 | |
| 8 | 16043421 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 11194071 | WASHER WASHER | 2 | |
| 10 | 8109102 | WATER PIPE WATER PIPE | 1 | |
| 11 | 4755963 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 12 | 4755964 | RUBBER PAD RUBBER PAD | 1 | |
| 13 | 16044424 | SCREW SCREW | 2 | |
| 14 | 11193871 | WASHER WASHER | 2 | |
| 15 | 10274087 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 16 | 8010969 | INJECTION LINE INJECTION LINE | 1 | |
| 17 | 4608490 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 18 | 10449890 | PIPE CLIP PIPE CLIP | 1 | |
| 19 | 16044321 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 20 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 21 | 11198371 | SPRING WASHER SPRING WASHER | 4 | |
| 22 | 10450290 | PIPE CLIP PIPE CLIP | 1 | |
| 23 | 12179190 | CLIP CLIP | 2 | |
| 24 | 4864084 | BANJO BOLT BANJO BOLT | 2 | |
| 25 | 8010977 | WATER PIPE WATER PIPE | 1 | |
| 26 | 15888721 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 27 | 8010879 | WATER PIPE WATER PIPE | 1 | |
| 28 | 4626124 | WATER HOSE WATER HOSE | 2 | |
| 29 | 17764592 | CLIP CLIP | 4 | |
| 30 | 4616630 | THREADED UNION THREADED UNION | 2 | |
| 31 | 11343721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 32 | 98400776 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 33 | 4601828 | SUPPORT SUPPORT | 1 | |
| 34 | 8100075 | WATER PIPE WATER PIPE | 1 | |
| 35 | 12099787 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 36 | 17764592 | CLIP CLIP | 2 | |
| 37 | 98400779 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 |
