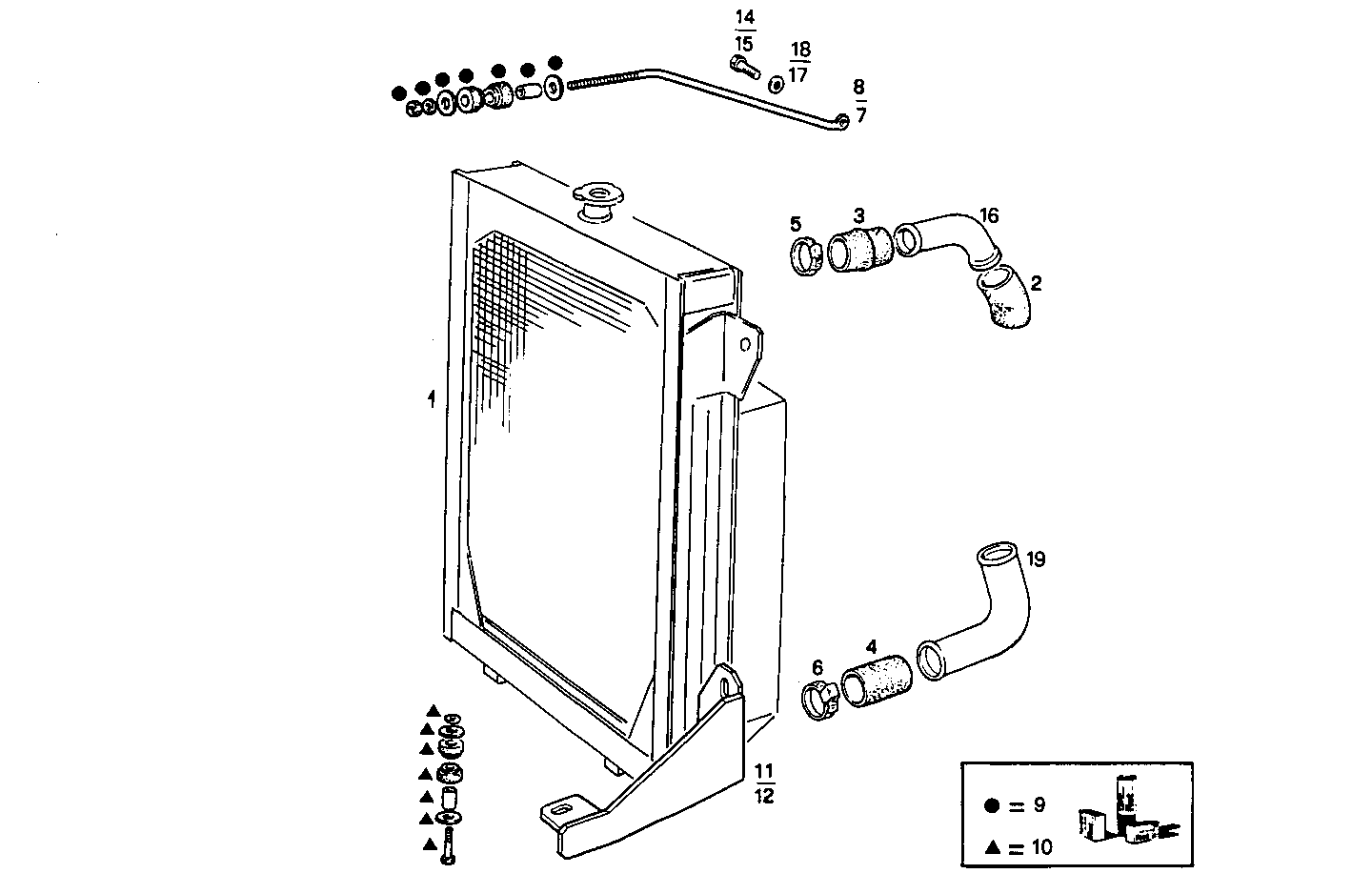

RADIATOR FOR SETTING TILL MAX POWER
8061Si35.05 — 8061Si35
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8105089 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 4787630 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 3 | 10138787 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 4 | 4934627 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 5 | 17764892 | PIPE CLIP PIPE CLIP | 4 | |
| 6 | 17764792 | HOSE CLIP HOSE CLIP | 4 | |
| 7 | 8112287 | TIE ROD TIE ROD | 1 | |
| 8 | 8105757 | TIE ROD TIE ROD | 1 | |
| 9 | 8090340 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 10 | 8090341 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 11 | 8105681 | SUPPORT SUPPORT | 1 | |
| 12 | 8105682 | SUPPORT SUPPORT | 1 | |
| 13 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 98491344 | SCREW SCREW | 1 | |
| 16 | 8105775 | WATER PIPE WATER PIPE | 1 | |
| 17 | 98415215 | WASHER WASHER | 1 | |
| 18 | 10519601 | WASHER WASHER | 1 | |
| 19 | 8105766 | WATER PIPE WATER PIPE | 1 |
