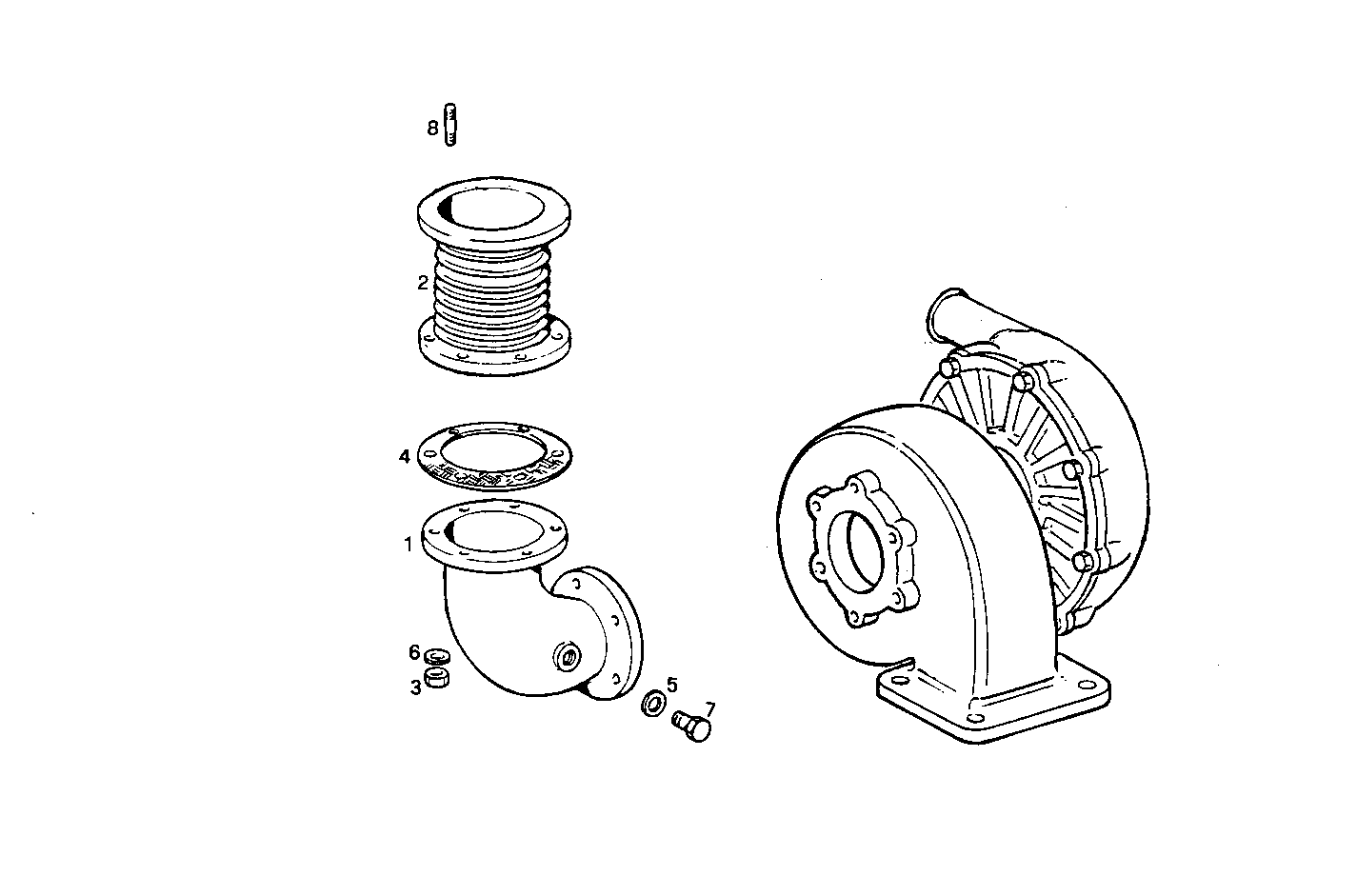

TURNING EXHAUST ELBOW WITH BELLOWS
8061Si35.05 — 8061Si35
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107751 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 2 | 4935378 | EXHAUST BELLOWS EXHAUST BELLOWS | 1 | |
| 3 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 | |
| 4 | 8009606 | GASKET GASKET | 1 | |
| 5 | 4858607 | WASHER WASHER | 1 | |
| 6 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 7 | 16992211 | THREADED PLUG THREADED PLUG | 1 | |
| 8 | 13516921 | STUD STUD | 12 |
