HIGHTPUSHER FAN
8061Si36.05 — 8061Si36

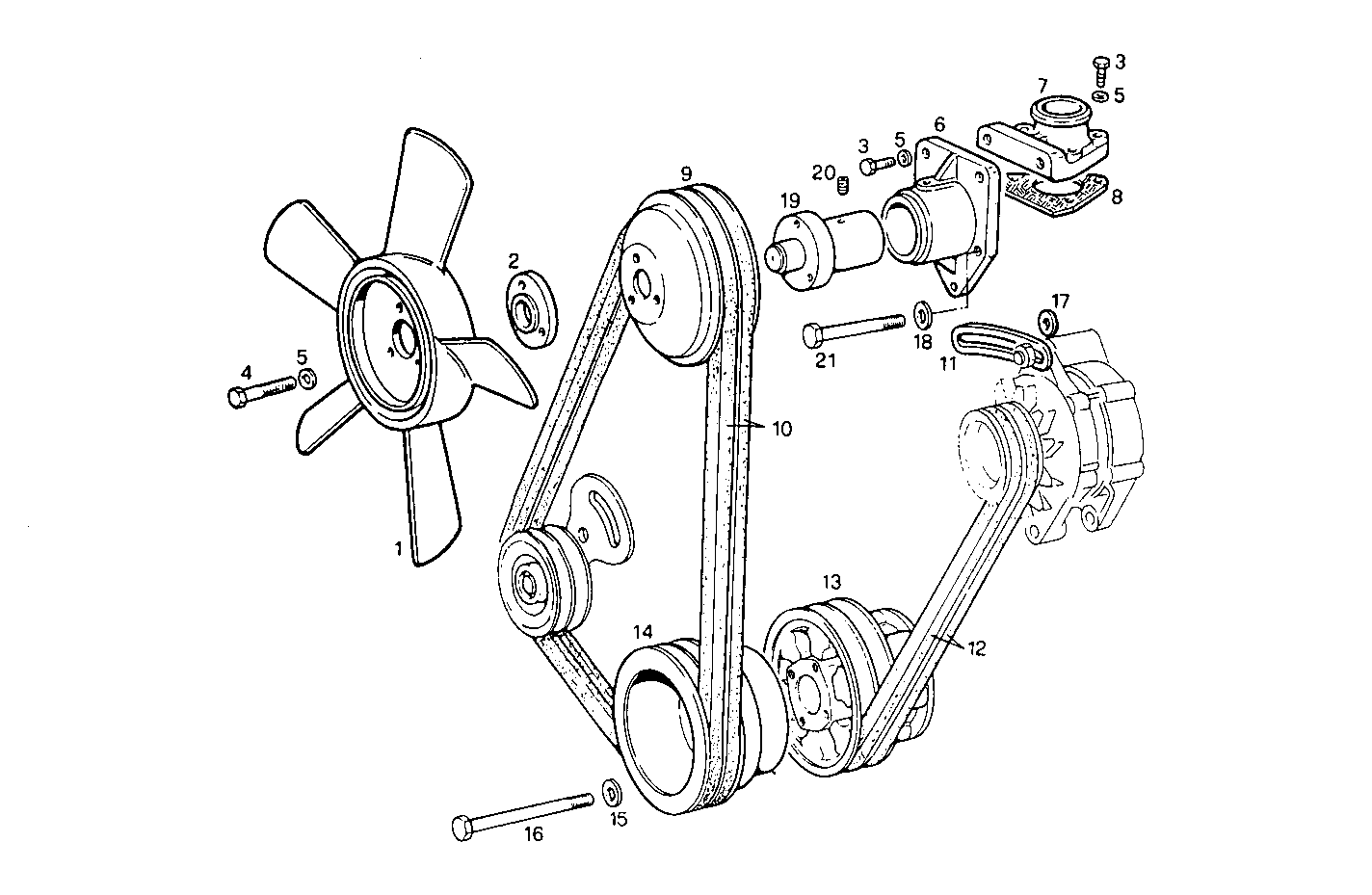

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4698188 | BLOWER BLOWER | 1 | |
| 2 | 4935426 | SPACING BAR SPACING BAR | 1 | |
| 3 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 4 | 16606224 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 8 | |
| 6 | 8016552 | SUPPORT SUPPORT | 1 | |
| 7 | 8101449 | WATER PIPE WATER PIPE | 1 | |
| 8 | 98420754 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 4845548 | PULLEY PULLEY | 1 | |
| 10 | 4847051 | SET OF V-BELTS SET OF V-BELTS | 1 | |
| 11 | 4806133 | BELT TENSIONER BELT TENSIONER | 1 | |
| 12 | 98413827 | V-BELT V-BELT | 1 | |
| 13 | 8106819 | PULLEY PULLEY | 1 | |
| 14 | 8013580 | PULLEY PULLEY | 1 | |
| 15 | 17101634 | SPRING WASHER SPRING WASHER | 6 | |
| 16 | 14308221 | SCREW SCREW | 6 | |
| 17 | 12642401 | WASHER WASHER | 1 | |
| 18 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 19 | 8016584 | DRIVE BEARING DRIVE BEARING | 1 | |
| 20 | 17425810 | SCREW SCREW | 1 | |
| 21 | 15972721 | HEXAGON BOLT HEXAGON BOLT | 3 |
