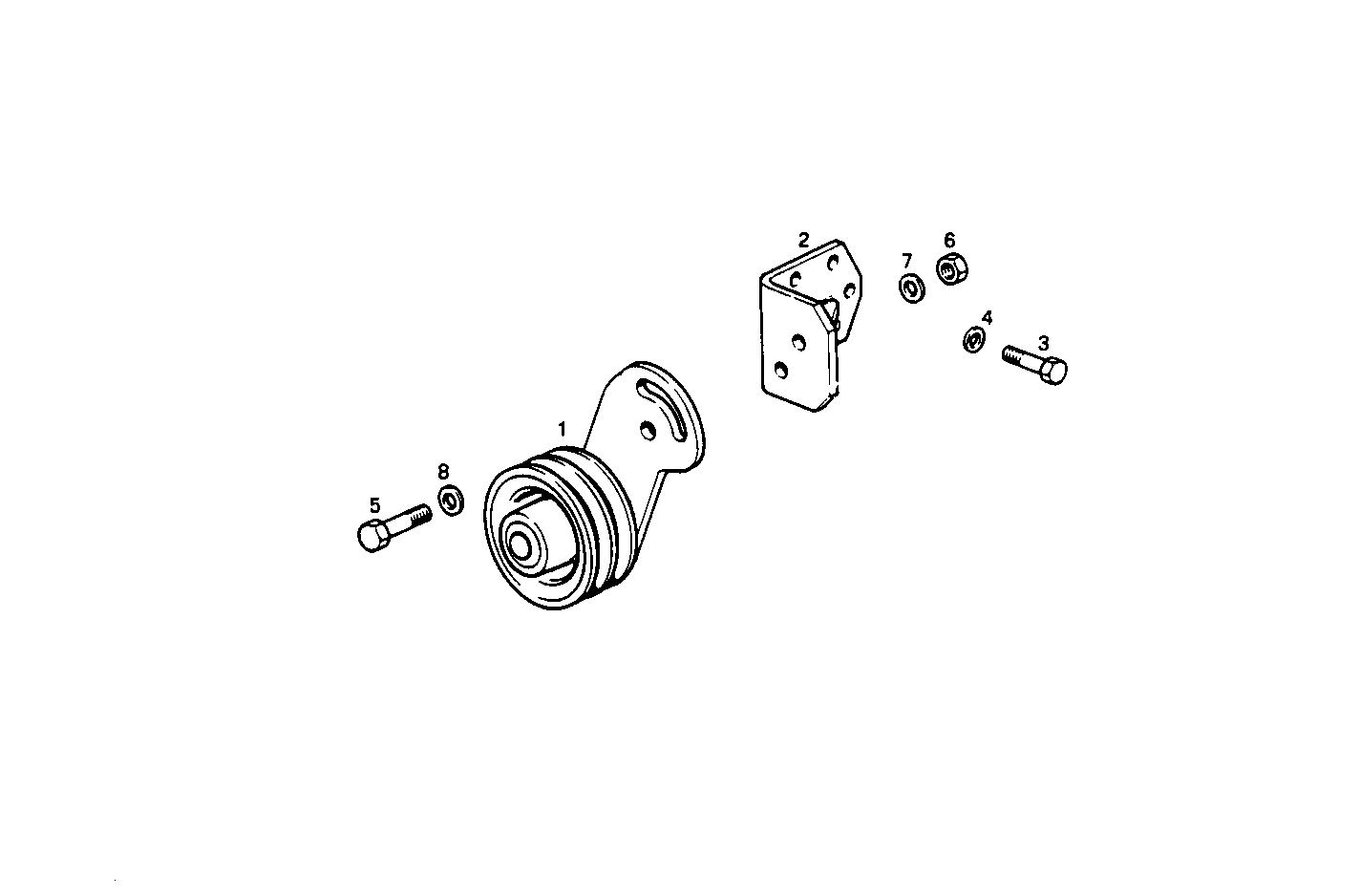

BELT STRETCHER IN PLACE OF ALTERNATOR
8061Si40.00 — 8061Si40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4803462 | BELT TENSIONER BELT TENSIONER | 1 | |
| 2 | 8027407 | RETAINER RETAINER | 1 | |
| 3 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 5 | 11306921 | SCREW SCREW | 2 | |
| 6 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 7 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 8 | 4513436 | SUPPORT RING SUPPORT RING | 1 |
