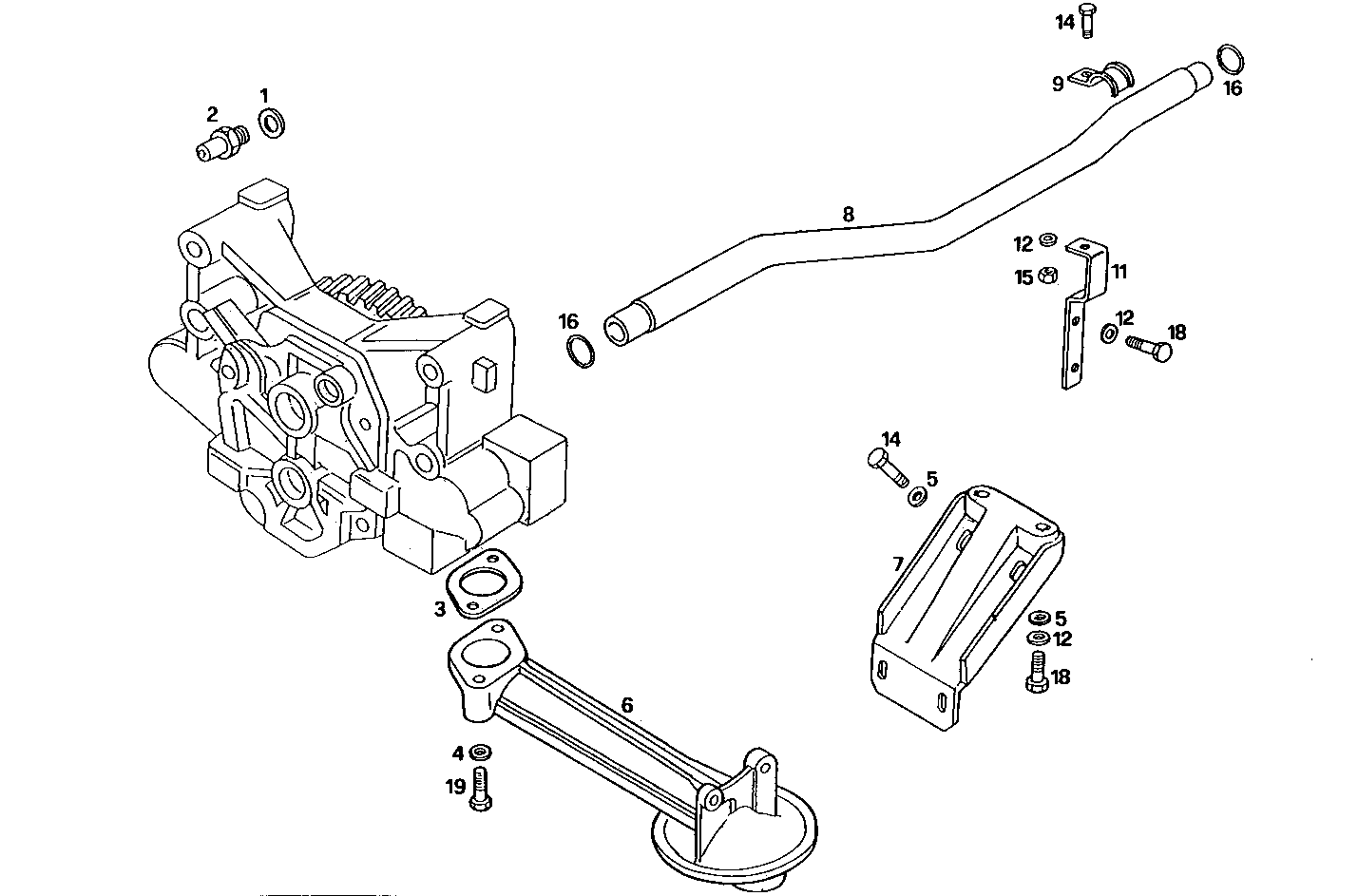

LUBE OIL LINES
8061Si40.00 — 8061Si40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 561293 | O-RING O-RING | 1 | |
| 2 | 4785501 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 3 | 4850953 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 17094914 | WASHER WASHER | 4 | |
| 5 | 12646704 | WASHER WASHER | 4 | |
| 6 | 98492949 | SUCTION STRAINER SUCTION STRAINER | 1 | |
| 7 | 4817571 | RETAINER RETAINER | 1 | |
| 8 | 99486858 | OIL LINE OIL LINE | 1 | |
| 9 | 500304834 | CLIP CLIP | 1 | |
| 11 | 500304806 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 14 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 15 | 17157021 | NUT NUT | 1 | |
| 16 | 17282181 | O-RING O-RING | 2 | |
| 18 | 16605424 | SCREW SCREW | 4 | |
| 19 | 16606024 | SCREW SCREW | 2 |
