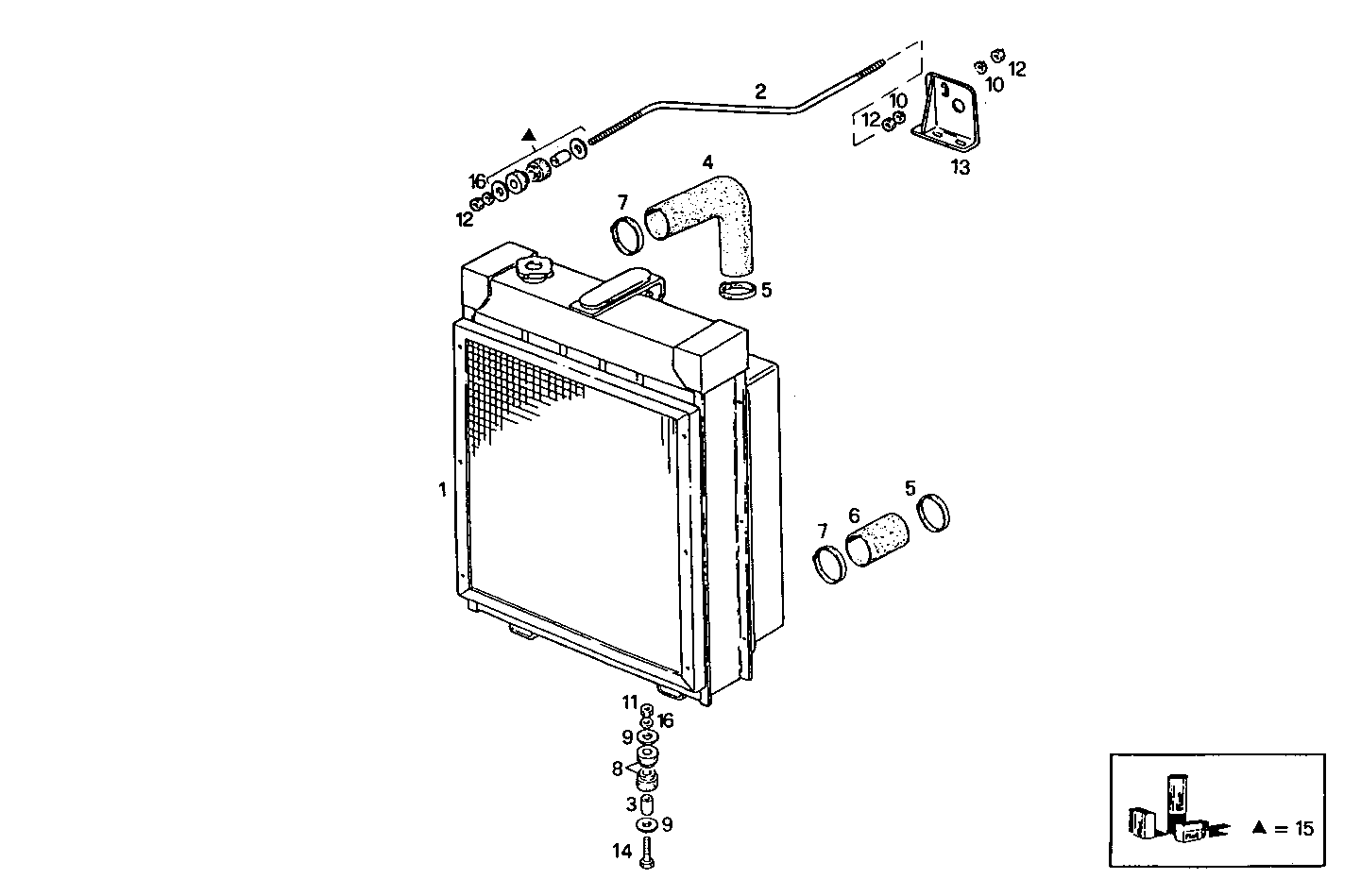

RADIATOR FOR SETTING TILL MAX POWER
8061Si40.00 — 8061Si40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8020420 | WATER RADIATOR WATER RADIATOR | 1 | |
| 1 | 8038540 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 8020421 | TIE ROD TIE ROD | 1 | |
| 3 | 8108634 | SPACING BAR SPACING BAR | 2 | |
| 4 | 8024770 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 5 | 17764891 | CLIP CLIP | 2 | |
| 6 | 8031363 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 7 | 17764991 | CLIP CLIP | 2 | |
| 8 | 741569 | RUBBER PAD RUBBER PAD | 4 | |
| 9 | 741570 | WASHER WASHER | 4 | |
| 10 | 17091374 | SPRING WASHER SPRING WASHER | 2 | |
| 11 | 17038421 | HEXAGON NUT HEXAGON NUT | 2 | |
| 12 | 17038421 | HEXAGON NUT HEXAGON NUT | 4 | |
| 13 | 8020521 | RETAINER RETAINER | 1 | |
| 14 | 16610724 | SCREW SCREW | 2 | |
| 15 | 8090413 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 16 | 17091074 | WASHER WASHER | 4 |
