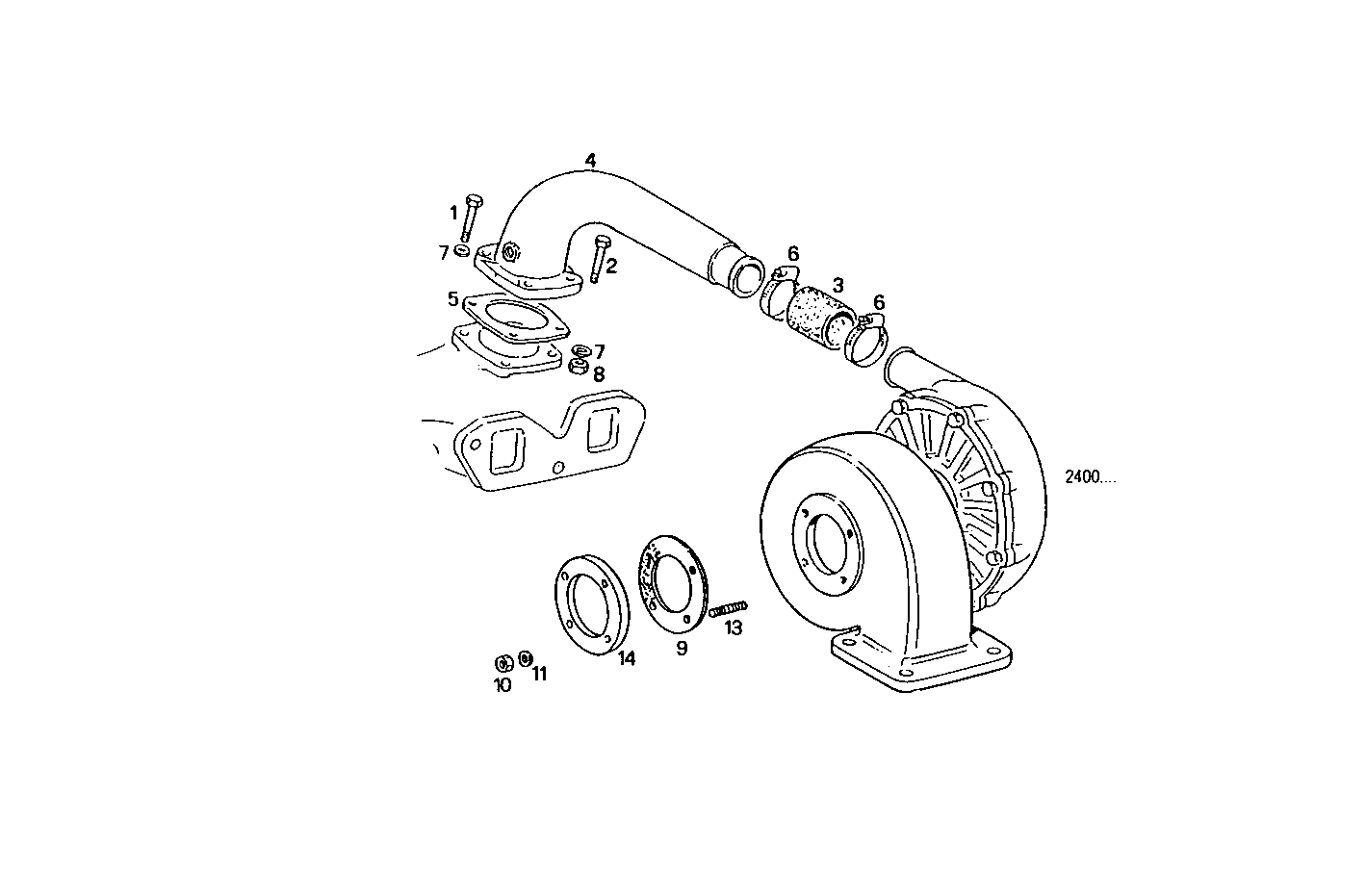

SUPERCHARGING LINES
8061Si40.00 — 8061Si40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16625734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 2 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 3 | 98421377 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 4 | 4754495 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 5 | 98400790 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 98490783 | CLIP CLIP | 2 | |
| 7 | 17094914 | WASHER WASHER | 4 | |
| 8 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 9 | 4729026 | GASKET GASKET | 1 | |
| 10 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 13 | 16729524 | STUD STUD | 4 | |
| 14 | 8112977 | FLANGE FLANGE | 1 |
