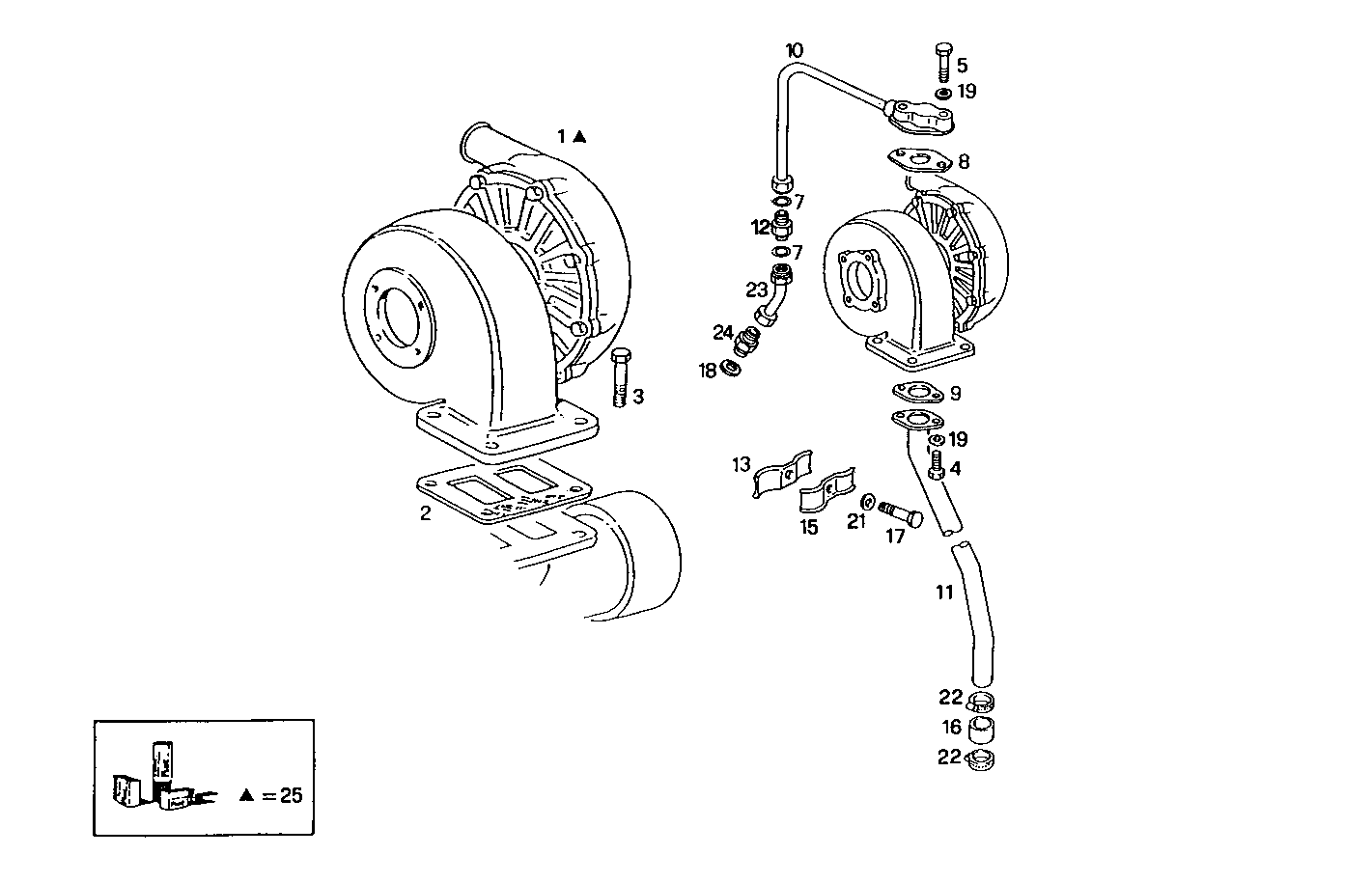

TURBOCHARGER
8061Si40.00 — 8061Si40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8108015 | TURBOCHARGER TURBOCHARGER | 1 | |
| 2 | 98428396 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 98491312 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 4 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 8024649 | O-RING O-RING | 2 | |
| 8 | 98415922 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 98415923 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 10 | 8029038 | OIL LINE OIL LINE | 1 | |
| 11 | 500326275 | OIL LINE OIL LINE | 1 | |
| 12 | 8028103 | PIPE SOCKET PIPE SOCKET | 1 | |
| 13 | 4755435 | RETAINER RETAINER | 1 | |
| 15 | 4755436 | RETAINER RETAINER | 1 | |
| 16 | 98421373 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 17 | 16603724 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 18 | 4858609 | WASHER WASHER | 1 | |
| 19 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 21 | 17088474 | WASHER WASHER | 1 | |
| 22 | 17764592 | CLIP CLIP | 2 | |
| 23 | 8029039 | OIL LINE OIL LINE | 1 | |
| 24 | 16500311 | PIPE SOCKET PIPE SOCKET | 1 | |
| 25 | 8090147 | KIT-TURBOCHARGER KIT-TURBOCHARGER | 1 |
