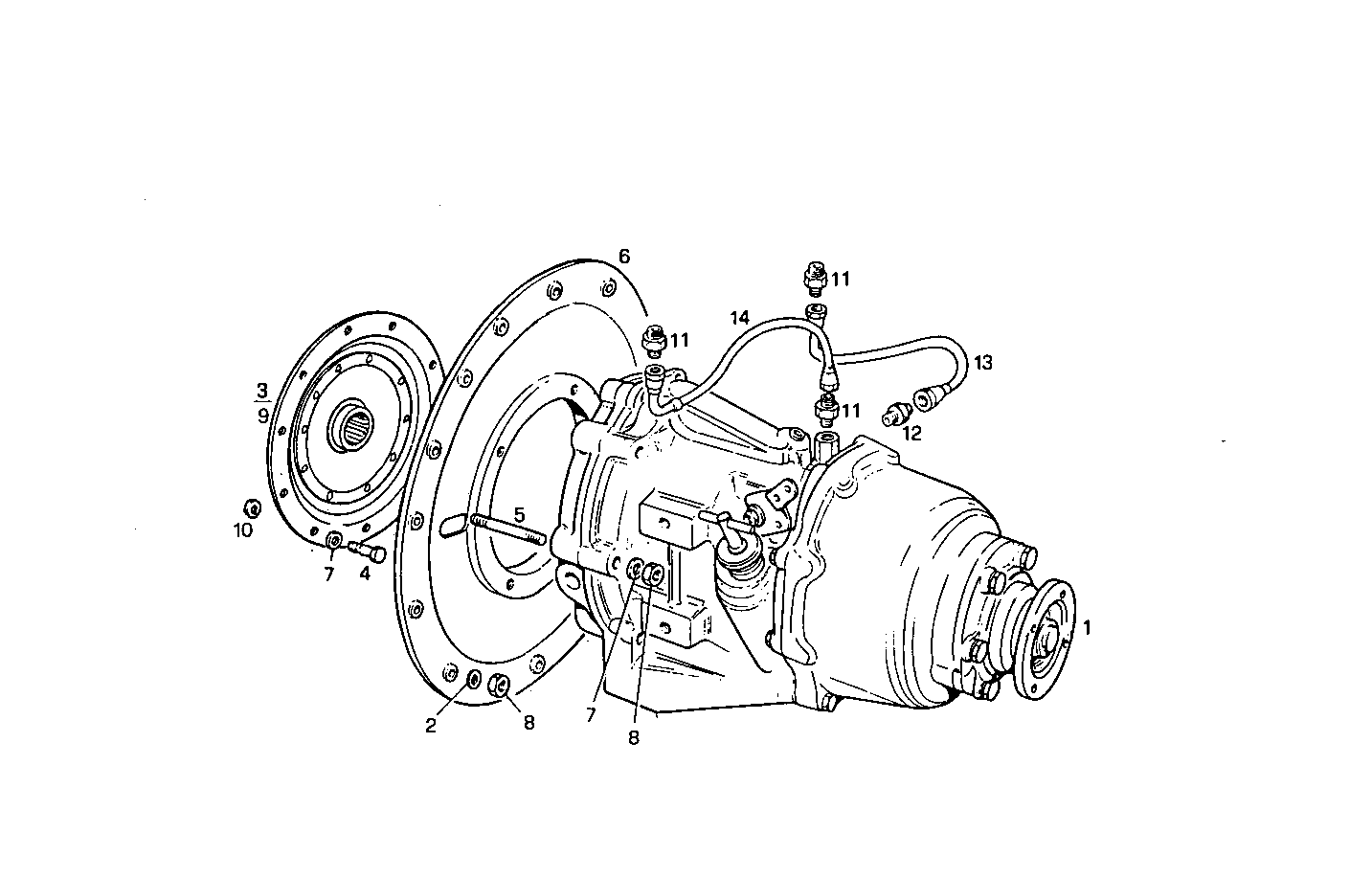

MARINE GEAR BORG WARNER 72 CR
8061SM16.11 — 8061SM16
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4919796 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 11198379 | SPRING WASHER SPRING WASHER | 18 | |
| 3 | 8022809 | FLEXPLATE FLEXPLATE | 1 | |
| 4 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 5 | 13547521 | STUD STUD | 6 | |
| 6 | 4934782 | COUPLING BELL COUPLING BELL | 1 | |
| 7 | 10571879 | WASHER WASHER | 32 | |
| 8 | 12164711 | HEXAGON NUT HEXAGON NUT | 18 | |
| 9 | 8113696 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 10 | 8113726 | WASHER WASHER | 8 | |
| 11 | 4935465 | PIPE SOCKET PIPE SOCKET | 3 | |
| 12 | 8101161 | PIPE SOCKET PIPE SOCKET | 1 | |
| 13 | 4935780 | OIL HOSE OIL HOSE | 1 | |
| 14 | 4935779 | HOSE HOSE | 1 |
