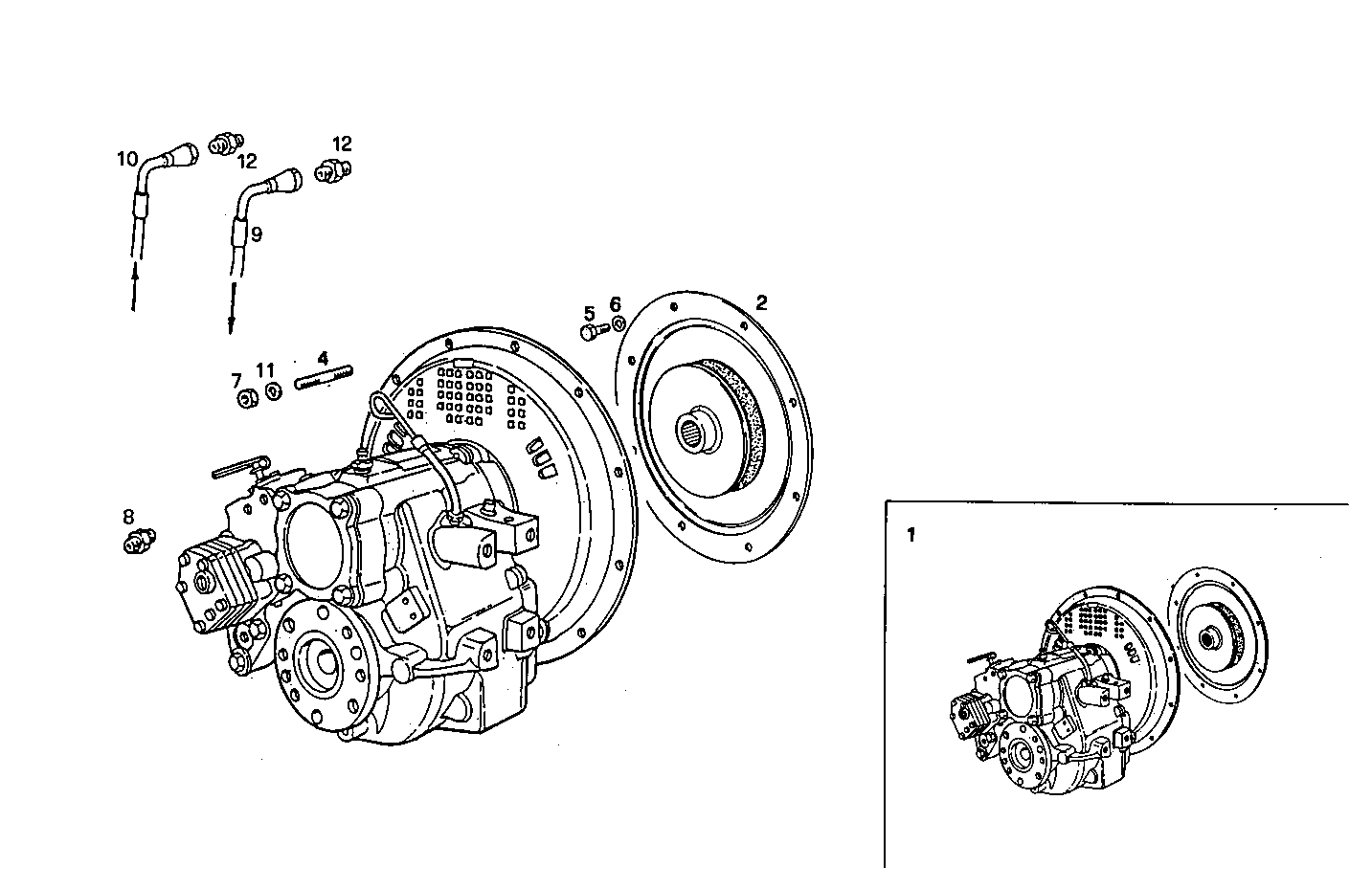

MARINE GEAR TWIN DISC MG 5050
8061SM16.11 — 8061SM16
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8012978 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 8014086 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 4 | 13449521 | STUD STUD | 12 | |
| 5 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 6 | 17494934 | WASHER WASHER | 8 | |
| 7 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 8 | 4935465 | PIPE SOCKET PIPE SOCKET | 2 | |
| 9 | 8105620 | HOSE HOSE | 1 | |
| 10 | 4935490 | OIL LINE OIL LINE | 1 | |
| 11 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 12 | 8101073 | PIPE SOCKET PIPE SOCKET | 2 |
