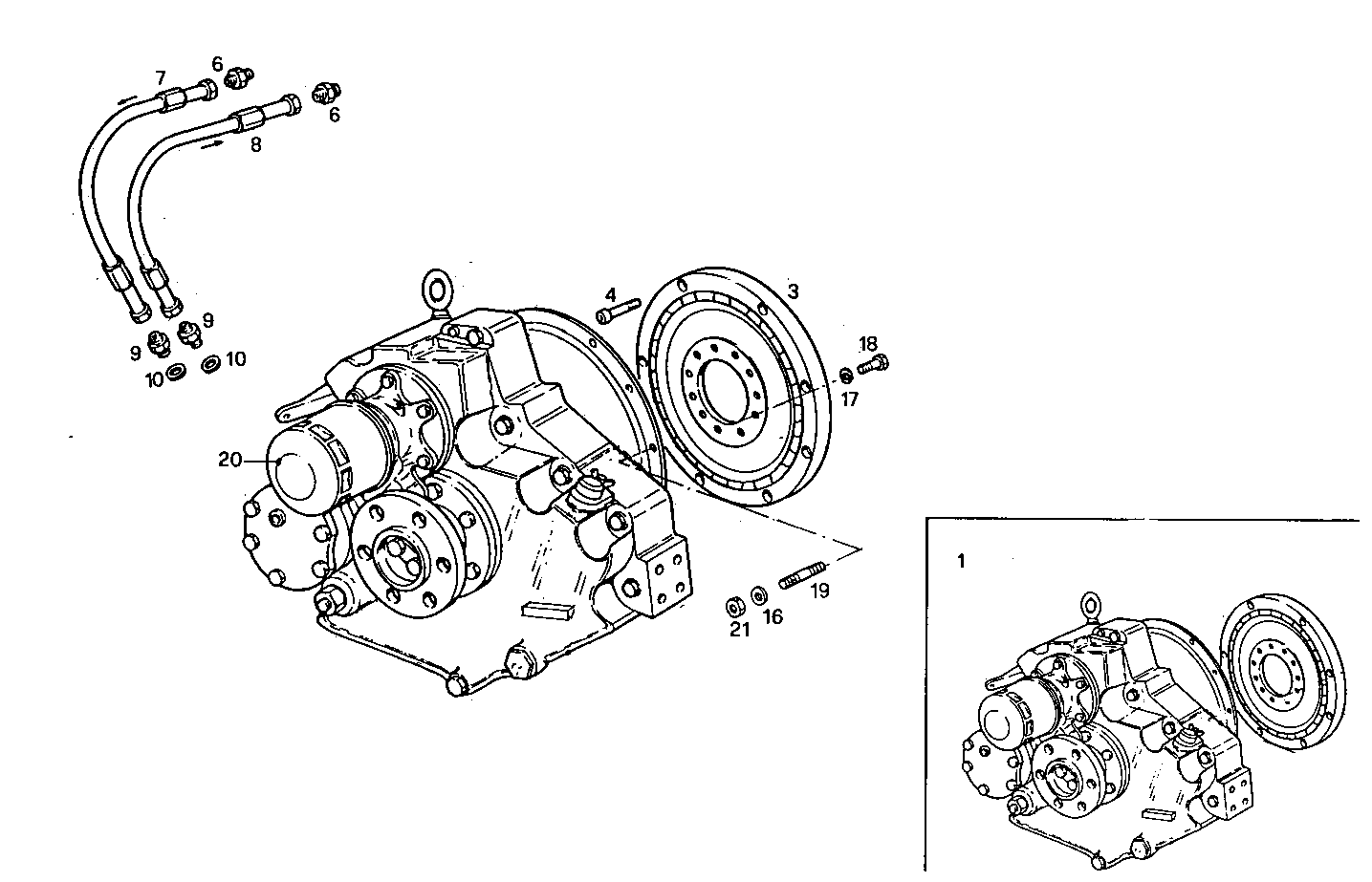

MARINE GEAR ZF-MPM IRM 301 PL2
8061SM16.11 — 8061SM16
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8023043 | MARINE GEAR MARINE GEAR | 1 | |
| 3 | 8023041 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 4 | 14307921 | SCREW SCREW | 8 | |
| 6 | 8101073 | PIPE SOCKET PIPE SOCKET | 2 | |
| 7 | 8105619 | HOSE HOSE | 1 | |
| 8 | 4935490 | OIL LINE OIL LINE | 1 | |
| 9 | 8100897 | PIPE SOCKET PIPE SOCKET | 2 | |
| 10 | 98474309 | WASHER WASHER | 2 | |
| 16 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 19 | 13449521 | STUD STUD | 12 | |
| 20 | 8107191 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 1 | |
| 21 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 |
