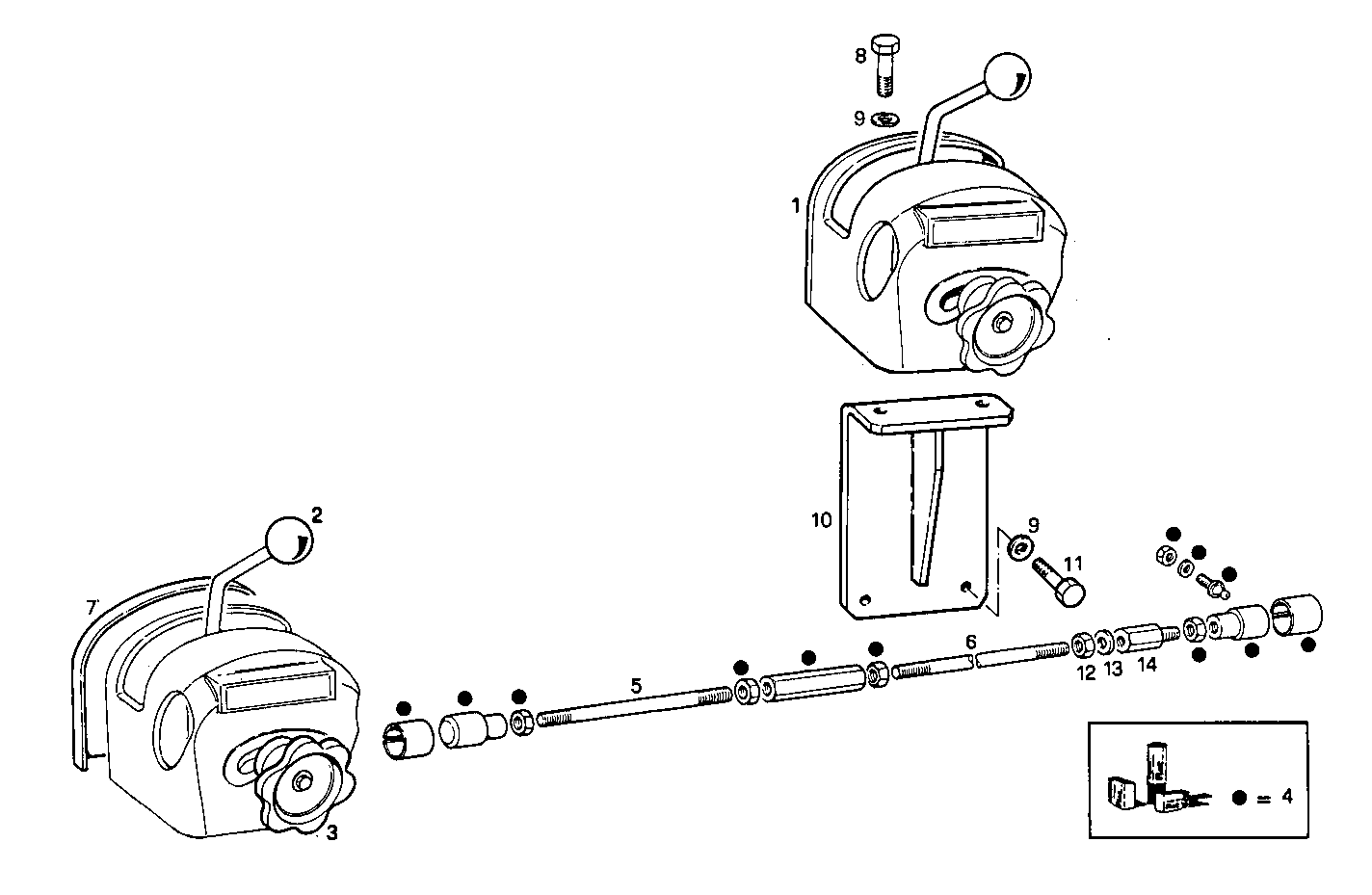

HAND ACCELERATOR
8061SM20.42 — 8061SM20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4927113 | HAND ACCELERATOR HAND ACCELERATOR | 1 | |
| 2 | 4927041 | HANDLE BALL HANDLE BALL | 1 | |
| 3 | 4927042 | HANDWHEEL HANDWHEEL | 1 | |
| 4 | 8090372 | KIT KIT | 1 | |
| 5 | 4936606 | TIE ROD TIE ROD | 1 | |
| 6 | 4912940 | TIE ROD TIE ROD | 1 | |
| 7 | 4927115 | COVER COVER | 1 | |
| 8 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 10 | 8017582 | RETAINER RETAINER | 1 | |
| 11 | 11306921 | SCREW SCREW | 2 | |
| 12 | 16979331 | HEXAGON NUT HEXAGON NUT | 1 | |
| 13 | 17088474 | WASHER WASHER | 2 | |
| 14 | 8105581 | STUD STUD | 1 |
