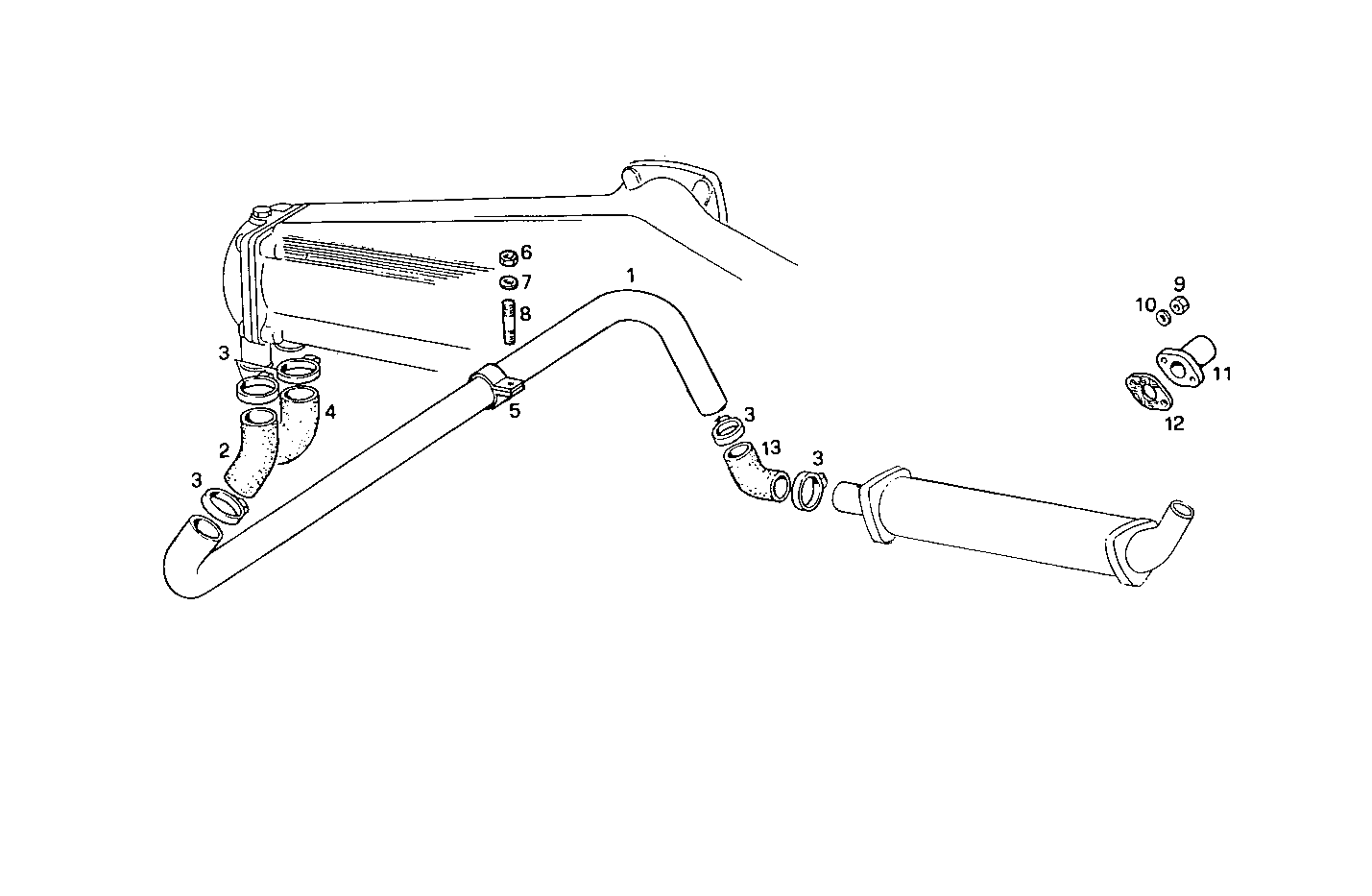

SEA WATER LINES
8061SM20.42 — 8061SM20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8011027 | WATER PIPE WATER PIPE | 1 | |
| 2 | 4604779 | WATER HOSE WATER HOSE | 1 | |
| 3 | 17764893 | CLIP CLIP | 5 | |
| 4 | 8102099 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 5 | 8103077 | CLIP CLIP | 1 | |
| 6 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 7 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 8 | 13449321 | STUD STUD | 1 | |
| 9 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 11 | 8112744 | WATER PIPE WATER PIPE | 1 | |
| 12 | 8008755 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 13 | 17742687 | RUBBER SLEEVE RUBBER SLEEVE | 1 |
