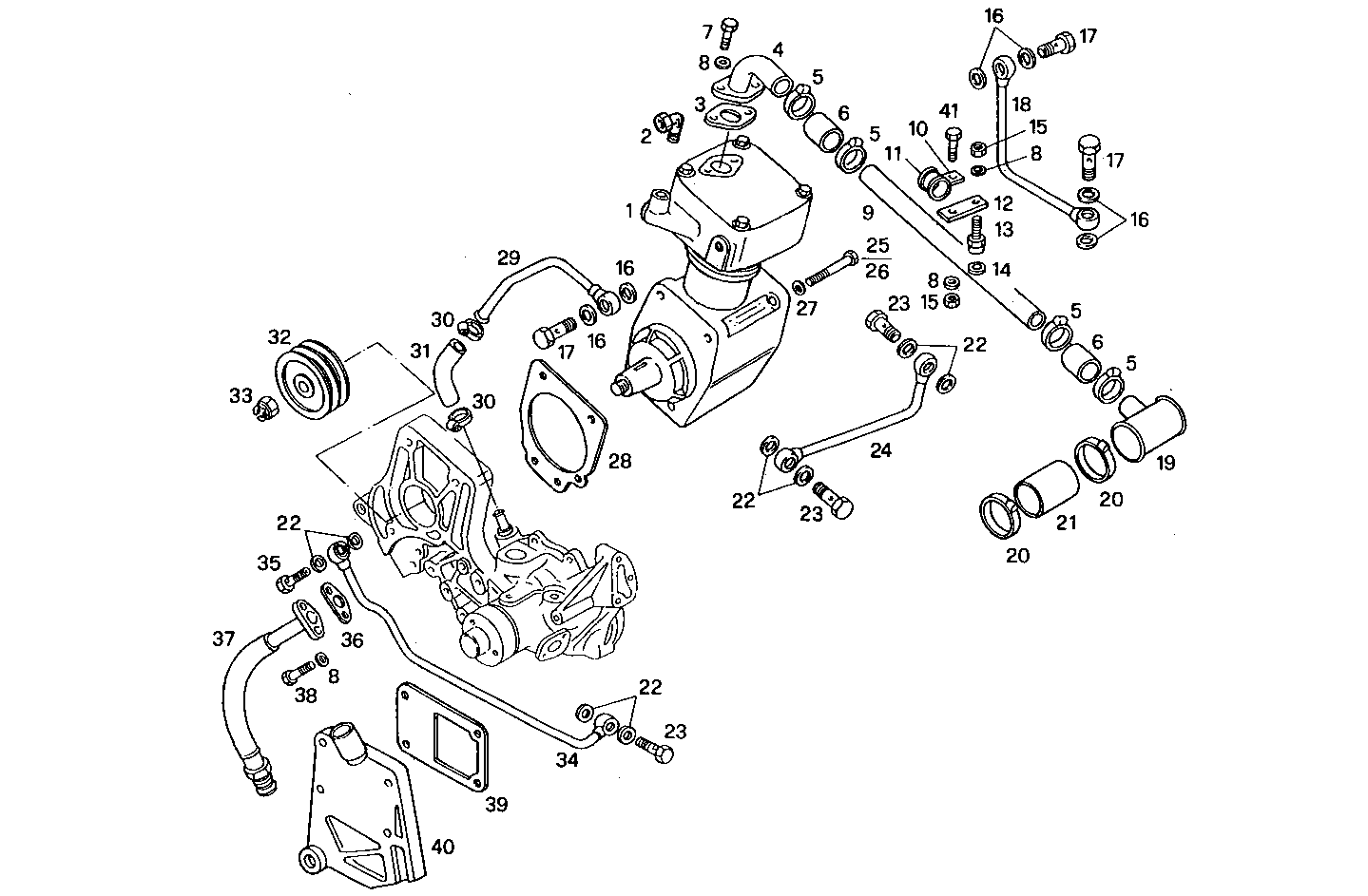

AIR COMPRESSOR
8061SRi10.05 — 8061SRi10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8016550 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 2 | 8110267 | PIPE SOCKET PIPE SOCKET | 1 | |
| 3 | 98418772 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 8100116 | CONNECTOR CONNECTOR | 1 | |
| 5 | 17764591 | CLIP CLIP | 4 | |
| 6 | 17738187 | WATER HOSE WATER HOSE | 2 | |
| 7 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 9 | 8016541 | WATER PIPE WATER PIPE | 1 | |
| 10 | 4760226 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 11 | 4747140 | RUBBER PAD RUBBER PAD | 1 | |
| 12 | 4929652 | RETAINER RETAINER | 1 | |
| 13 | 8009967 | NUT NUT | 1 | |
| 14 | 98416134 | WASHER WASHER | 1 | |
| 15 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 16 | 98474309 | WASHER WASHER | 6 | |
| 17 | 4864084 | BANJO BOLT BANJO BOLT | 3 | |
| 18 | 98425218 | WATER PIPE WATER PIPE | 1 | |
| 19 | 8100075 | WATER PIPE WATER PIPE | 1 | |
| 20 | 17765091 | CLIP CLIP | 2 | |
| 21 | 17746687 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 22 | 98474305 | WASHER WASHER | 8 | |
| 23 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 3 | |
| 24 | 8014959 | WATER PIPE WATER PIPE | 1 | |
| 25 | 15972221 | SCREW SCREW | 2 | |
| 26 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 27 | 17095004 | WASHER WASHER | 4 | |
| 28 | 99445563 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 29 | 8016543 | WATER PIPE WATER PIPE | 1 | |
| 30 | 17764491 | CLIP CLIP | 2 | |
| 31 | 98425477 | WATER HOSE WATER HOSE | 1 | |
| 32 | 98419182 | COMPRESSOR PULLEY COMPRESSOR PULLEY | 1 | |
| 33 | 98413776 | NUT NUT | 1 | |
| 34 | 98424575 | OIL LINE OIL LINE | 1 | |
| 35 | 98406316 | BANJO BOLT BANJO BOLT | 2 | |
| 36 | 4842490 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 37 | 98424277 | OIL LINE OIL LINE | 1 | |
| 38 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 39 | 98444018 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 40 | 8016514 | COVER COVER | 1 | |
| 41 | 16605424 | SCREW SCREW | 1 |
