AIR COMPRESSOR
8061SRi10.05 — 8061SRi10

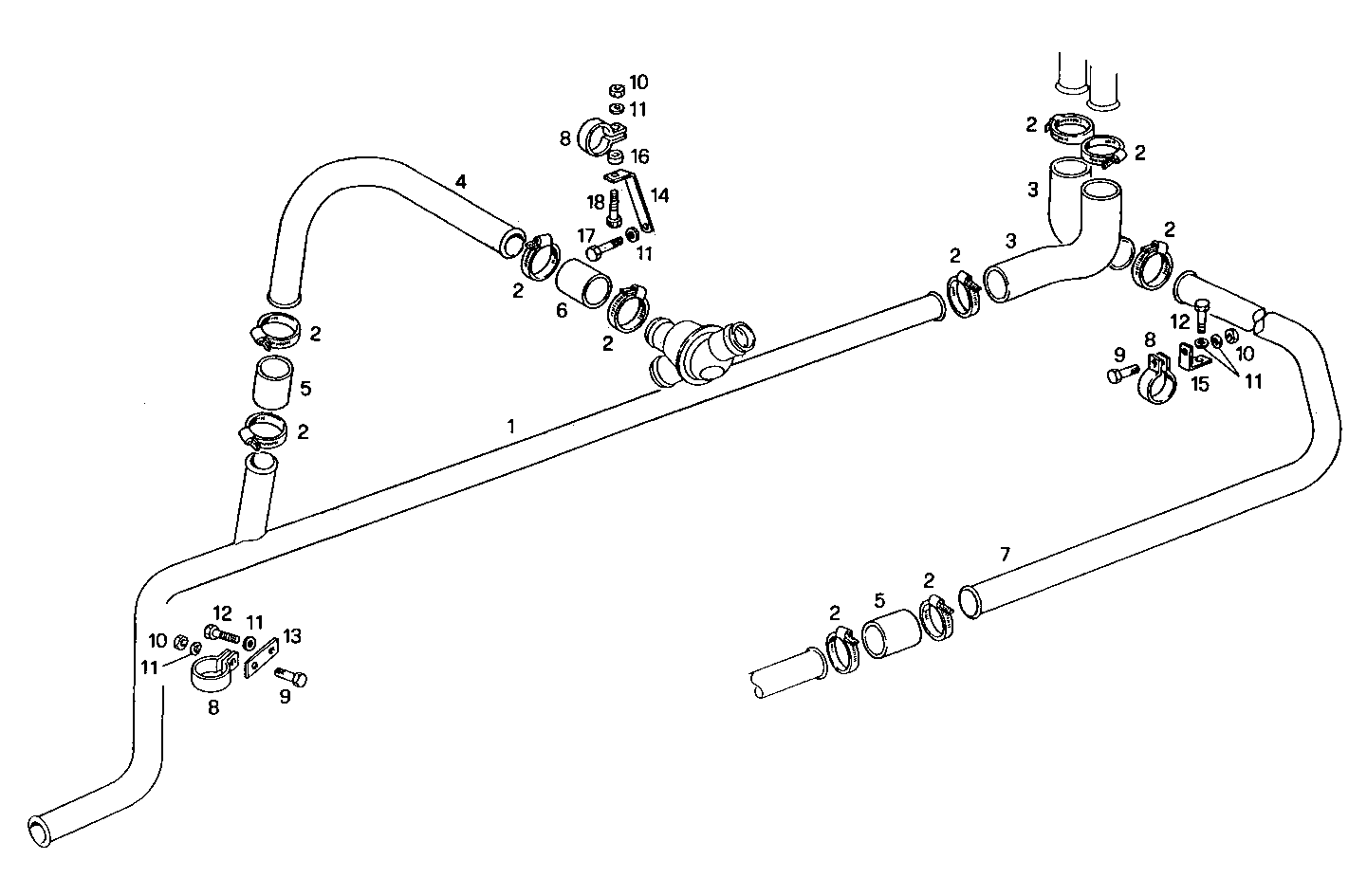

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8016528 | WATER PIPE WATER PIPE | 1 | |
| 2 | 17764791 | CLIP CLIP | 10 | |
| 3 | 4644083 | WATER HOSE WATER HOSE | 2 | |
| 4 | 8016529 | WATER PIPE WATER PIPE | 1 | |
| 5 | 17742887 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 6 | 98447313 | WATER HOSE WATER HOSE | 1 | |
| 7 | 8016527 | WATER PIPE WATER PIPE | 1 | |
| 8 | 4936741 | CLIP CLIP | 3 | |
| 9 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 17038121 | HEXAGON NUT HEXAGON NUT | 3 | |
| 11 | 17090174 | SPRING WASHER SPRING WASHER | 6 | |
| 12 | 15970321 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 4929652 | RETAINER RETAINER | 1 | |
| 14 | 8110973 | RETAINER RETAINER | 1 | |
| 15 | 8110697 | RETAINER RETAINER | 1 | |
| 16 | 8101581 | SPACING BAR SPACING BAR | 1 | |
| 17 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 18 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 1 |
