GUARD
8061SRi10.05 — 8061SRi10

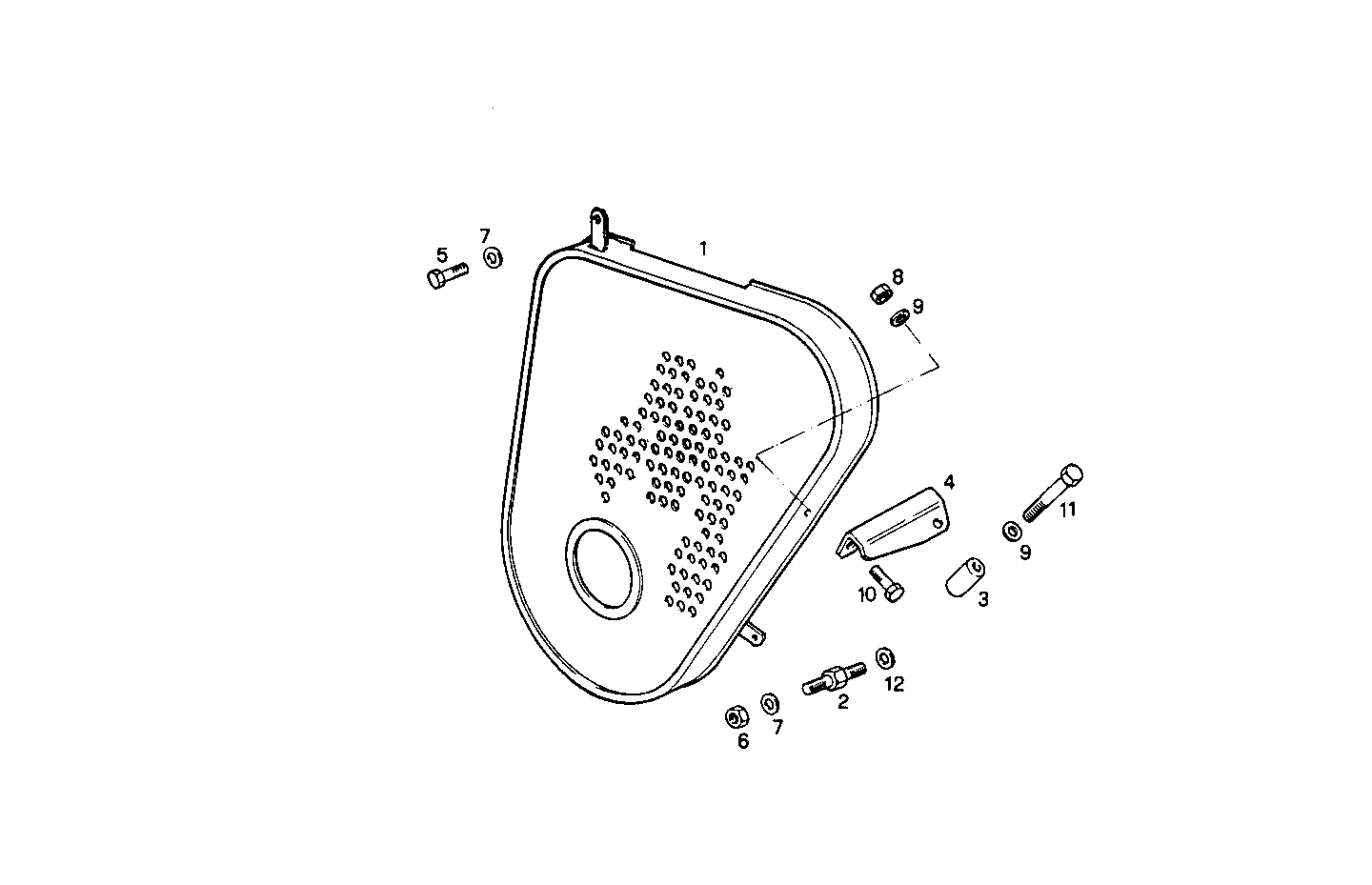

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017940 | PROTECTION PROTECTION | 1 | |
| 2 | 8100343 | SPACING BAR SPACING BAR | 2 | |
| 3 | 8010593 | SPACING BAR SPACING BAR | 1 | |
| 4 | 8109407 | RETAINER RETAINER | 1 | |
| 5 | 15970321 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 7 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 8 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 9 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 10 | 16605424 | SCREW SCREW | 1 | |
| 11 | 16606124 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 17092174 | SPRING WASHER SPRING WASHER | 2 |
